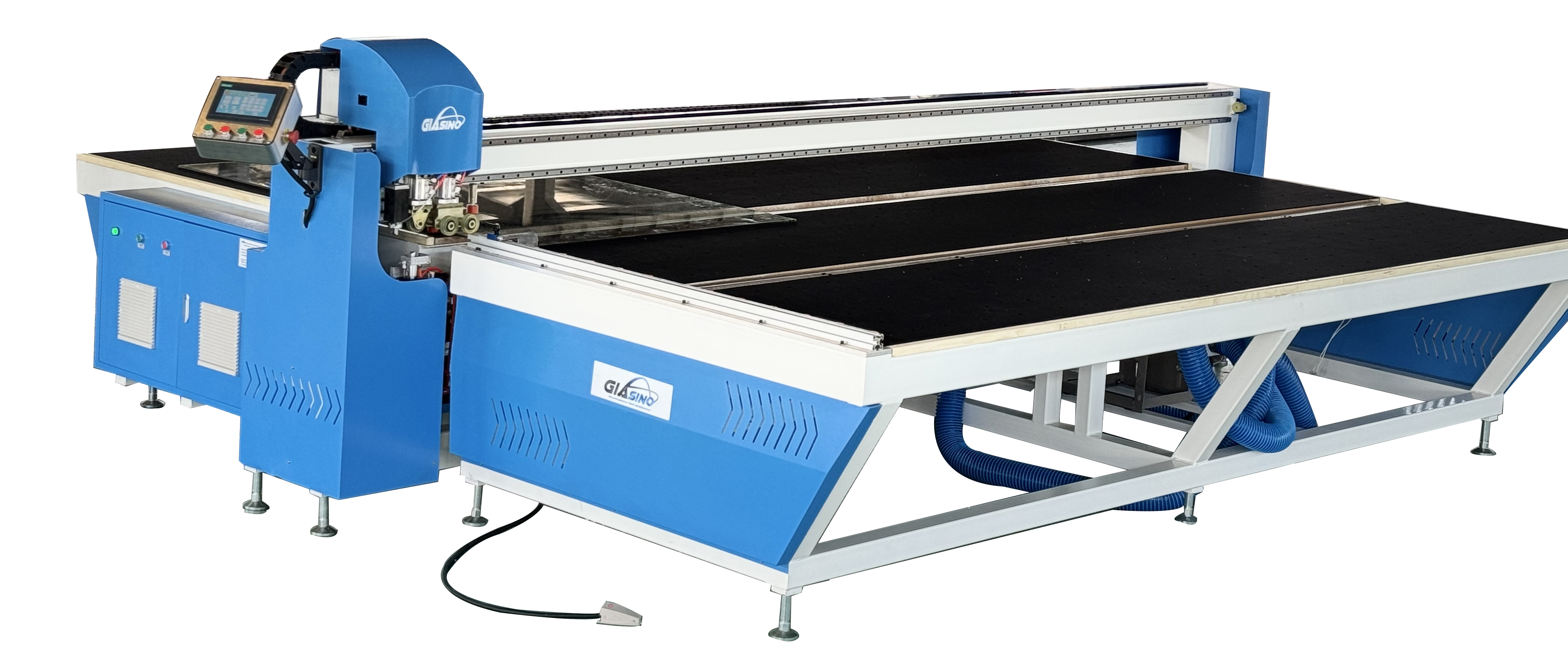

Semi auto laminated glass cutting machine

Semi auto laminated glass cutting machine

Description:

Our company research and development production SLM-3826 type high precision twin-cutter full auto laminated glass cutting machine is widely applied in thick plate glass, laminated glass. The cutting equipment operation is convenient, reliable stability, cutting efficiency and high precision.

Product introduction:

National standard square pipe welding frame. Adopt high-precision rack transmission. PLC and imported electrical components, Servo motor, LCD display, man-machine interface, more convenient operation, stable performance. Cutting speed can be set directly. The cutting positions of the upper and lower cutter heads are consistent, the matching degree is high, and the breaking piece is easy.

Features:

1/ The cutting positions of the upper and lower cutter heads are consistent

2/ Upper cutter with broken wheel, automatically press the lower layer of glass;

3/ When the next lever is broken, there is a pneumatic pressure to ensure the effect of breaking

4/Heating and breaking

Cutting precision：≤±1mm

Diagonal accuracy：≤±2mm/m

Max. Cutting size ：2500×2000mm/3770*2550mm（special size can be customized)

Min. Cutting size：100*100mm

Cutting thickness：2+0.38+2----8+3.04+8mm

Cutting efficiency：1sheet/2—4min

Cutter life：30,000m--50,000m

Operator：1－2 people

Machine dimension : SLM-3826 ( 4800*2150*1150mm)  SLM-2621 (3400*2400*1150mm)

Machine configuration:

Equipment frame structure: GB thick wall rectangular pipe welding

Straight guideway: Taiwan silver straight square guideway

Pneumatic components: Airtac

Motor: Inovance Servo

Driver: Inovance

PLC: DELTA

Touch screen: Haiwei (remote control)

Platform board: original imported E0 grade high density board from Taiwan

Felt: original imported felt from Taiwan

Fan: 4KW 2 sets made in China

Steel plate: 1. 2 mm thickness of outer shell

Heating tube: light wave infrared
