Welding Machine for PVC Profiles

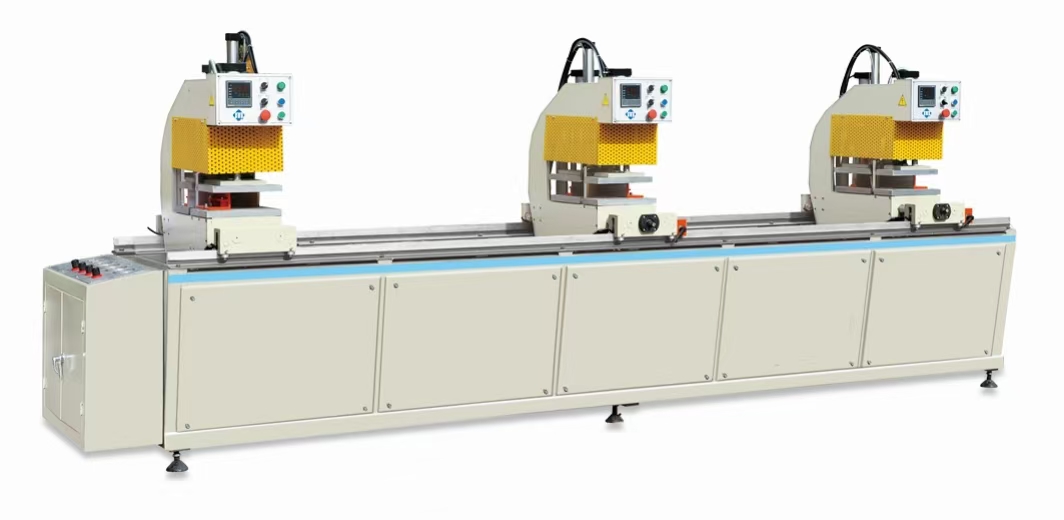

(Picture for reference, 1/2/3/4 heads optional)

Equipment Features

1.1   Machine heads can work independently or work together

1.2   Left and right movement of machine head adopts linear beating motion pair.Ensuring steady operation and strong process stability

1.3   Up and down movement of pressure pliers adopts linear square rail;guaranteeing steady operation and strong process stability

1.4   Programmable controller (PLC) controls welding movement/procedure; ensuring higher reliability

1.5   Enhanced machine frame and mechanical structure ensures higher reliability

1.6   Heightened welding block makes bigger processing range

1.7   Machine head adopts Dovetail structure

You can chose one head, two heads, three heads or four heads, below are the specifications:

1. Equipment Features

1.1   Machine heads can work independently or work together

1.2   Left and right movement of machine head adopts linear beating motion pair.Ensuring steady operation and strong process stability

1.3   Up and down movement of pressure pliers adopts linear square rail;guaranteeing steady operation and strong process stability

1.4   Programmable controller (PLC) controls welding movement/procedure; ensuring higher reliability

1.5   Enhanced machine frame and mechanical structure ensures higher reliability

1.6   Heightened welding block makes bigger processing range

1.7   Machine head adopts Dovetail structure

 2. Technical Parameter

2.1   Operation Air Pressure 0.5~0.8MPa

2.2   Air Consumption 150L/min

2.3   Input Voltage 220V/50Hz

2.4   Input power 7.5kw

2.5   Welding Height 20~120mm

2.6   Welding Range 350~3500mm

2.7   Overall Dimension 4000 x 930 x 2000mm

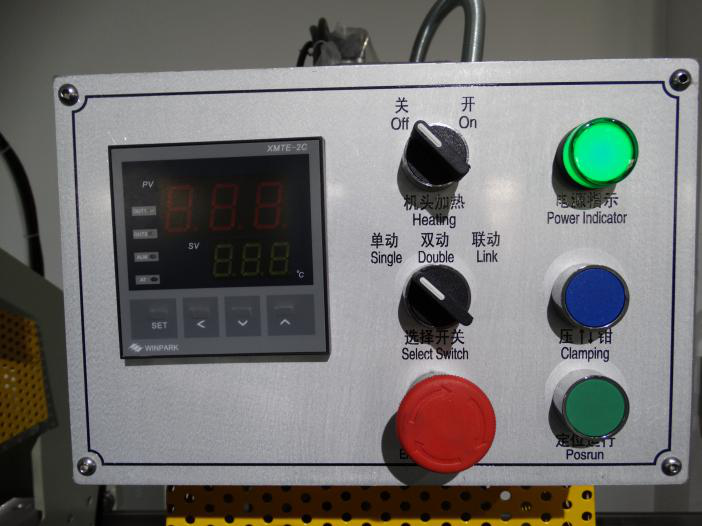

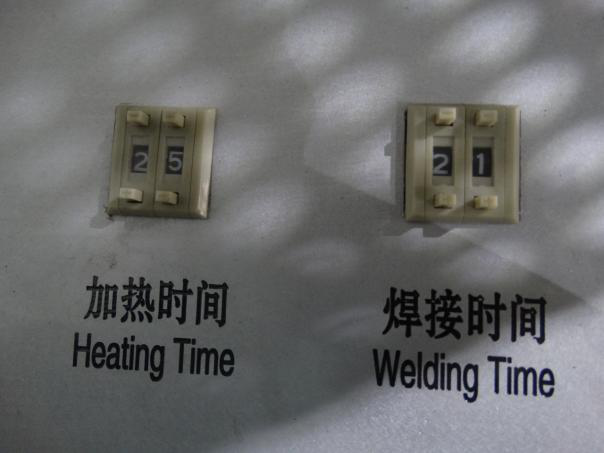

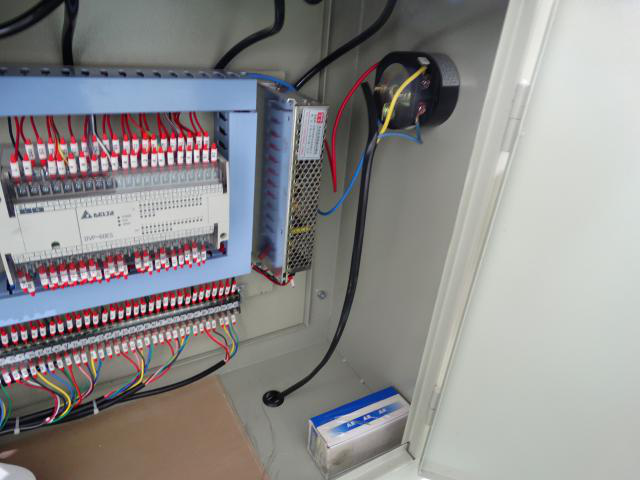

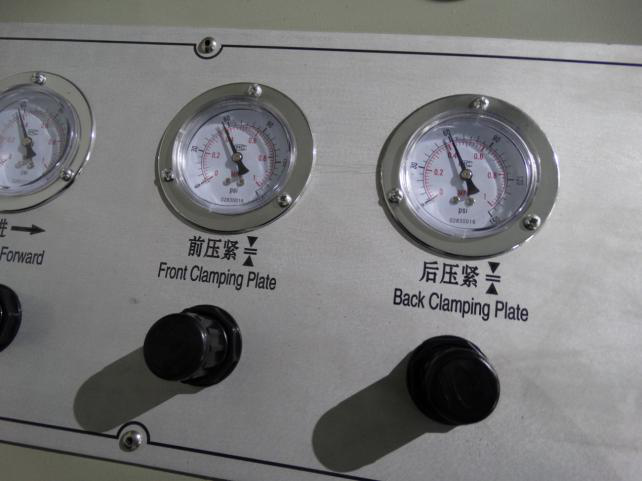

3.Detailed photos
