Equipment Features

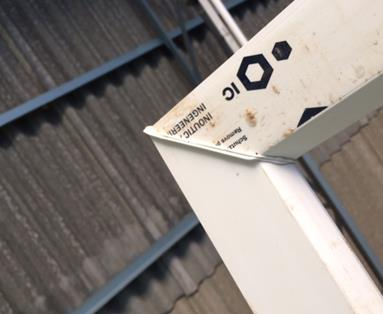

-Welding ┏、┏┓ shape combined with each other, and may be welded to a range of arbitrary angle.
-Two heads can work independently and can also be linked, flexible combination, high work efficiency·
-Right head could be 30°～180° arbitrary angle welding.
Technical Parameter
|
Operation Air Pressure |
0.5~0.8MPa |
|
Air Consumption |
100L/min |
|
Input Voltage |
220V/50Hz |
|
Input power |
2.5kw |
|
Welding Height |
20~120mm |
|
Welding Range |
400~3500mm |
|
Overall Dimension |
4400 x 950 x 1700mm |
|
Weight about |
740kg |
