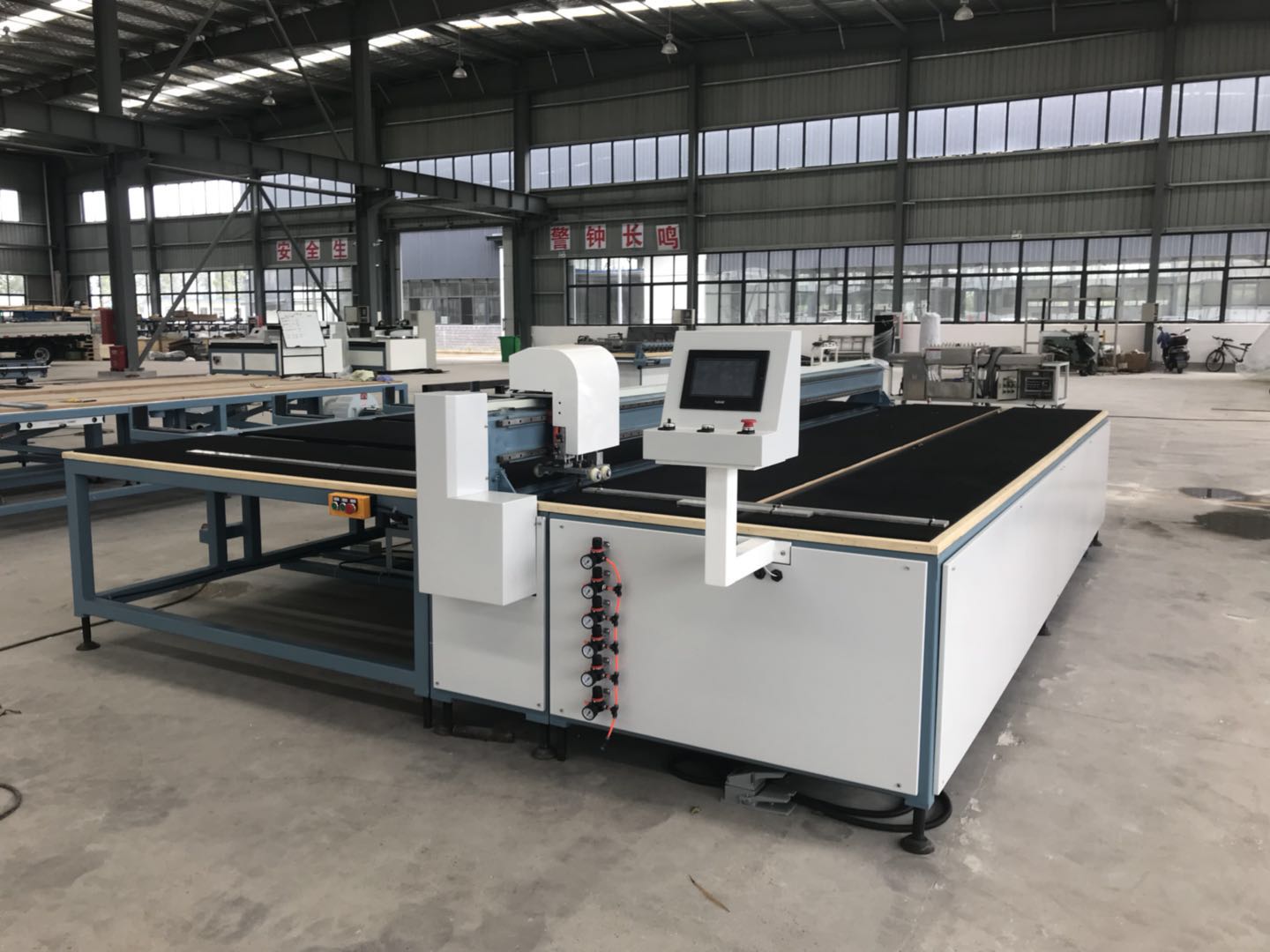

Semi-Automatic Laminated Glass Cutting Machine

Product introduce

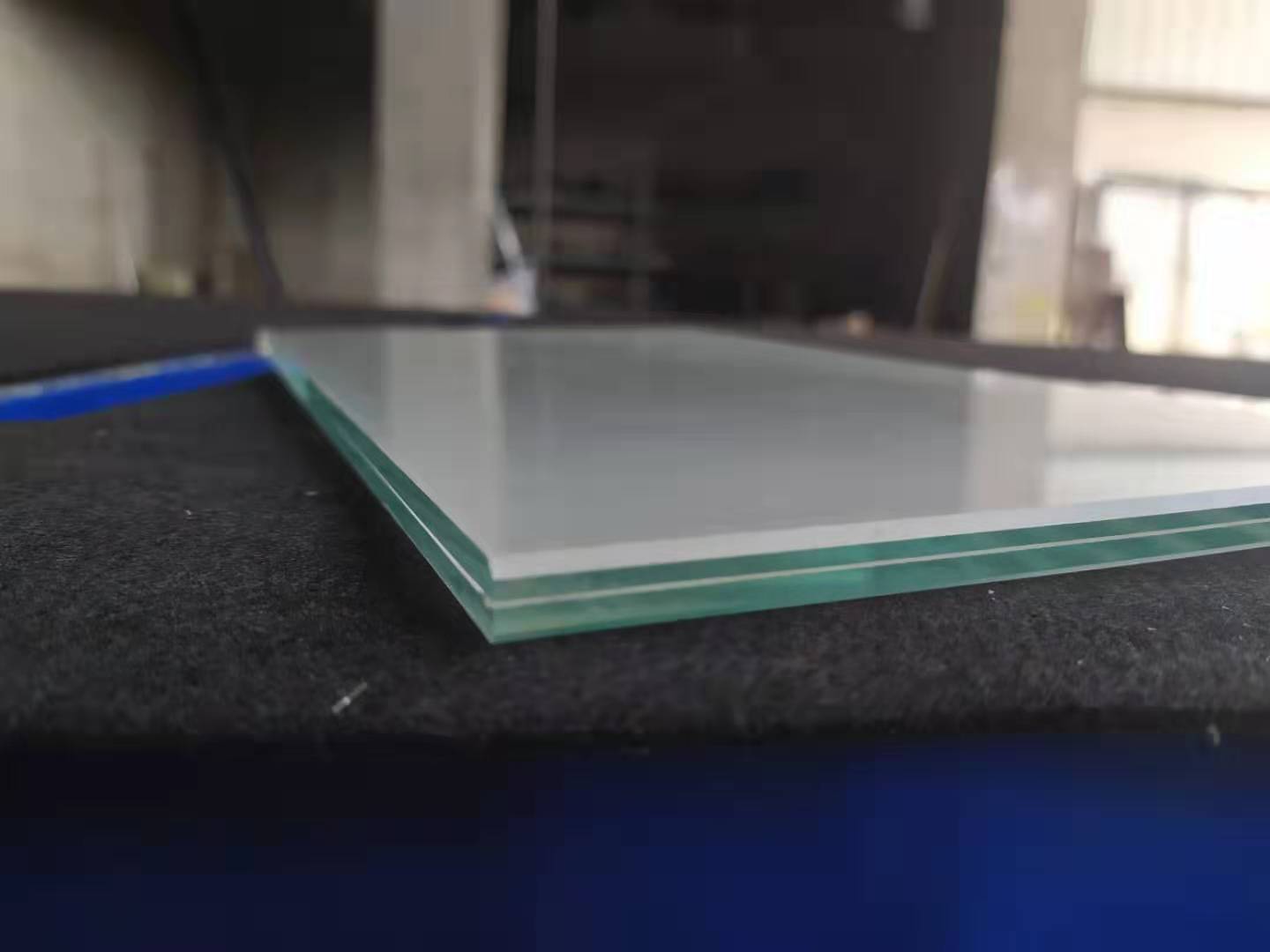

The semi-auto laminated glass cutting machine has high precision and double cutter heads. Apply for cutting the thick flat glass, laminated glass .The equipment has the following sell points : easy-operate, Reliable and stable operation ,high cutting efficient and high precision .

Performance

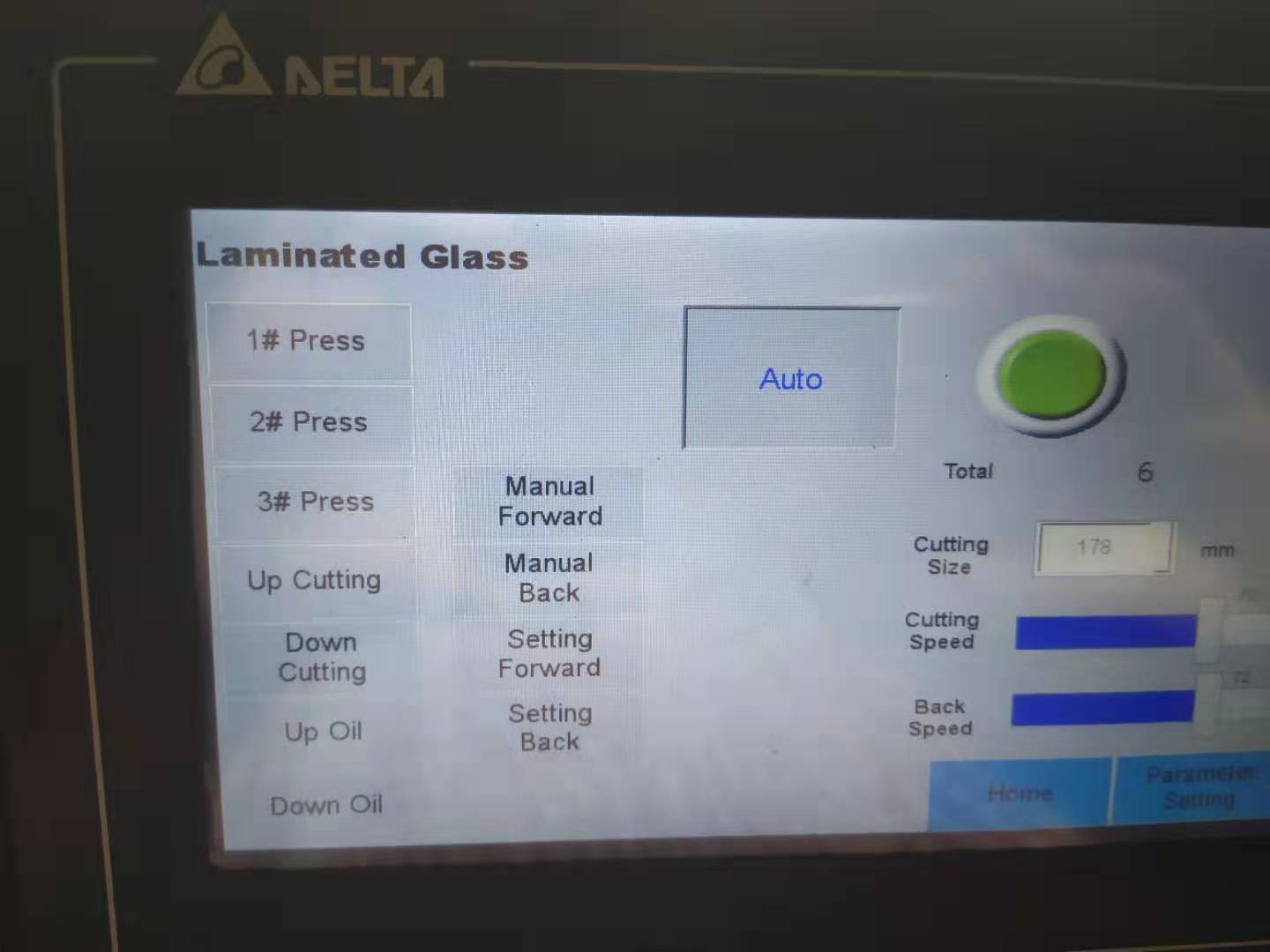

National standard square pipe welding frame. Synchronous belt transmission system. PLC and imported electrical components, stepper motor, LCD display, man-machine interface, more convenient operation, stable performance. Cutting speed can be set directly. The cutting positions of the upper and lower cutter heads are consistent, the matching degree is high, and the breaking piece is easy.

Detailed photos

Features

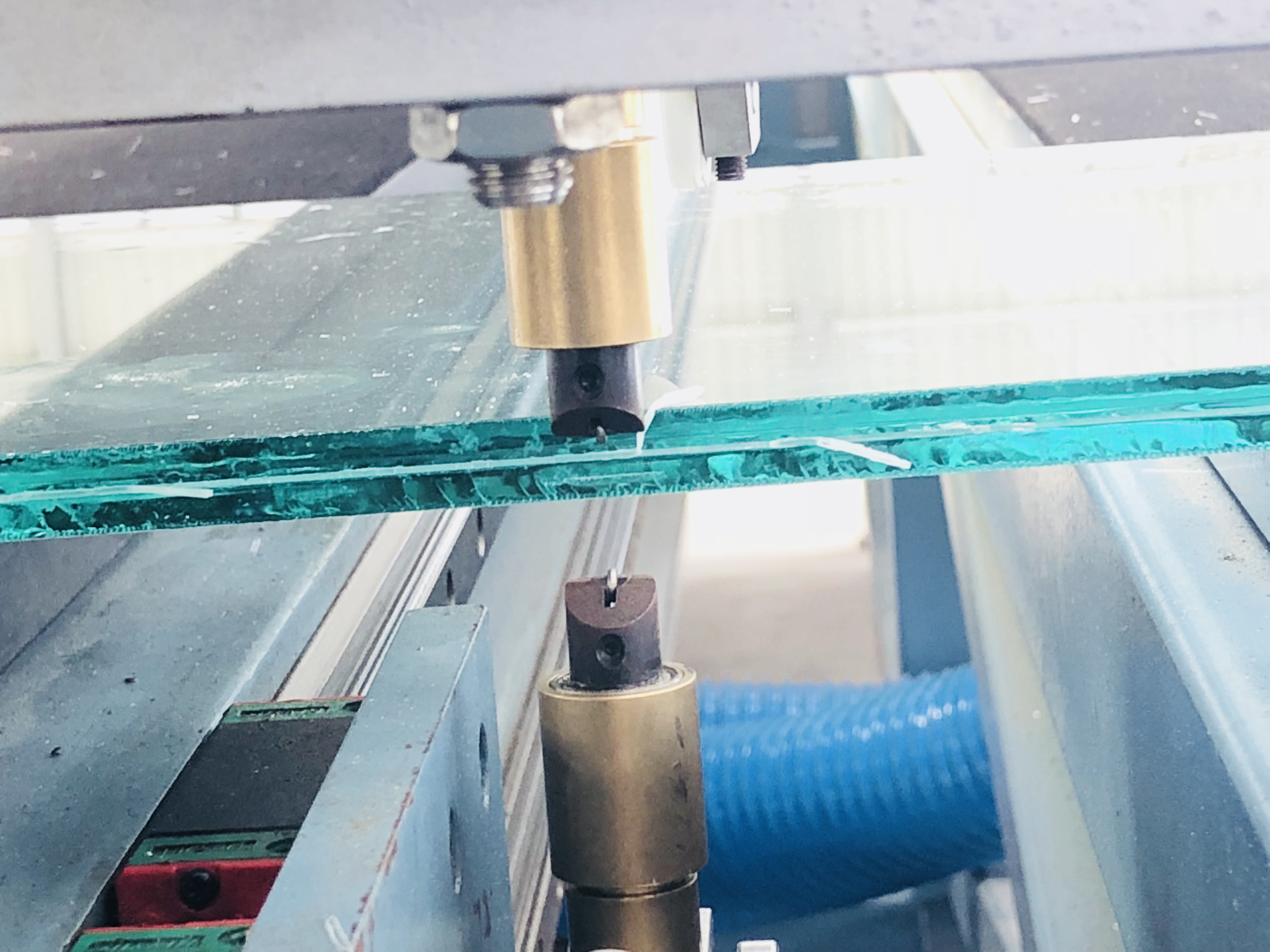

1. Upper and lower knife cutting.

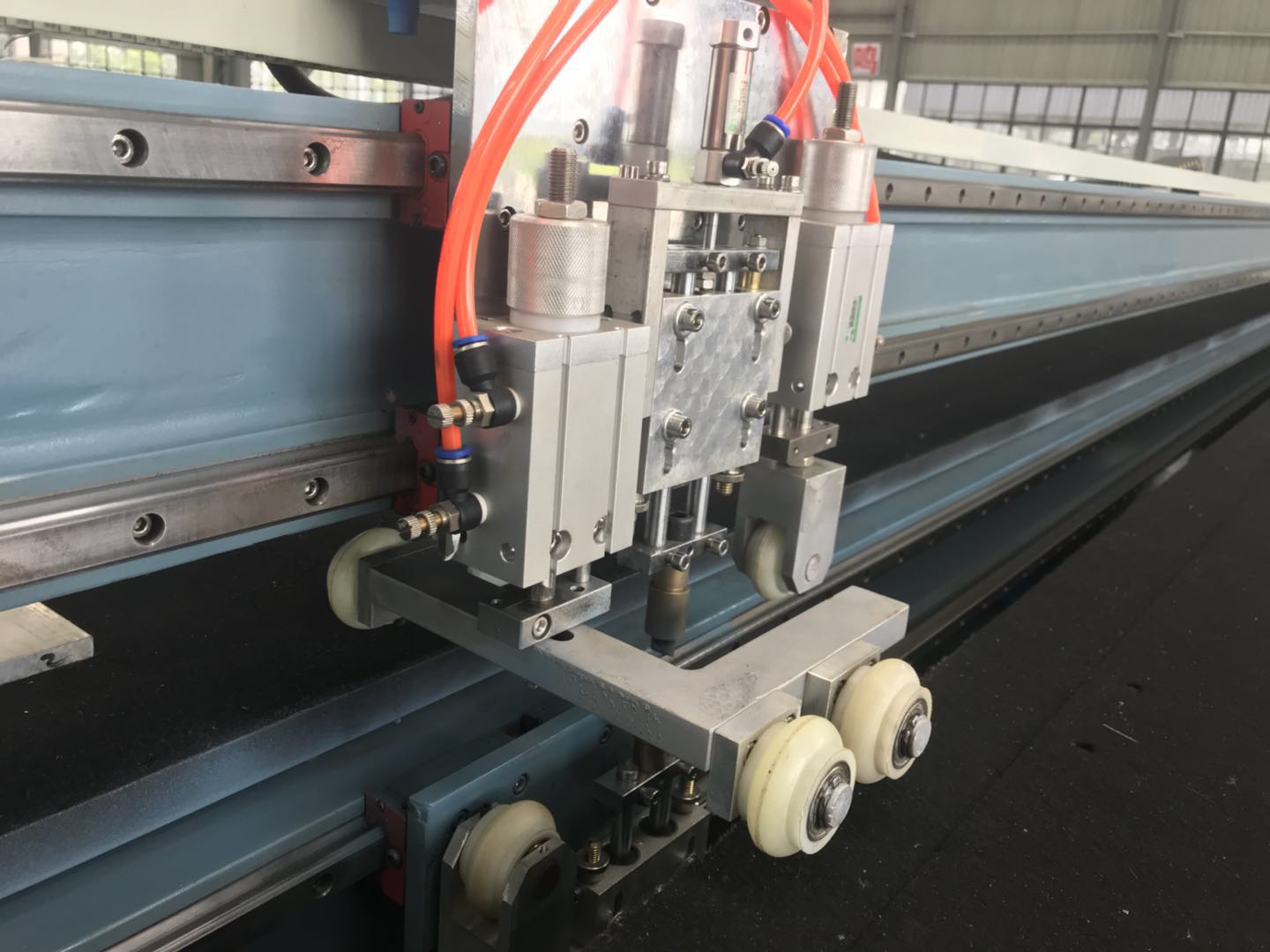

2. The breaking glass wheel is beside the upper cutter head , auto press open the up and down glass

3. The plane on cutter both sides is cold drawn weld , big type planomiller, high flatness! No debris .

4. It has its own spray alcohol device, which can quickly melt the PVB film and automatically separate when breaking.

Operation introduce

Set the cutting size --glass feeding --move the glass to the cutting position--cutter head start cutting --the breaking glass wheel auto press open the up and down glass --spray the alcohol --manual break

Warnings of carry and install

During the process of carry and install , the equipment should be lifted and put lightly without collision. It is forbidden to use guide rail and beam as lifting support. A level can be used to calibrate the desktop during installation, and a four-legged adjustable bracket can be adjusted to keep the desktop level.

Parameters:
