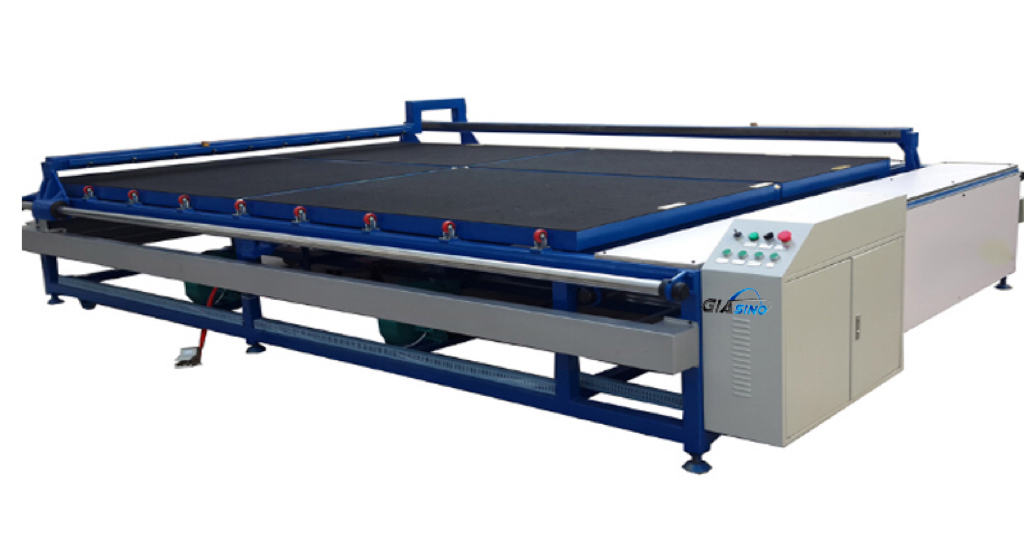

Semi-automatic Glass Cutting Machine

Product Description


Main Function:

Glasino semi-automatic double-bridge glass cutting machine is suitable for mass cutting of square and rectangular sheets of glass,for cutting large plate glass into small pieces at one time, the cutting process is completed by hand.

The distance between cutting boxes can be adjusted manually, adjust the space of cutter rack, then push the horizontal and vertical bridge to begin mass cutting. it can equip with blowing and sucion accordingly to requirement. the material of tabletop has blanket, metal, resin,imitation leather, marble etc.

Equipment Features:

* Omron PLC control

* Multi-cutters, high efficiency and high precision

* Self-lubricating system

* Air float table for glass easy move

* Removable cutting wheels

* Cutting boxes interval distance manual adjustment

* Auto-run available on the control panel

* Both of the cutting arms return to origin after cutting work

* Controlled by frequency converter

Technical parameter:

Model Max glasssize(mm) Glassthickness(mm) Dimensions(L*W*H)mm Min.size Weight
ZJQZ-800 700*650 0.7~15mm 1400*1510*1140 15*15mm 600kg
ZJQZ-1612 1500*1100 2~15mm 2248*1910*1140 15*15mm 900kg
ZJQZ-2116 2000*1500 2~15mm 2748*2310*1140 15*15mm 1530kg
ZJQZ-2620 2500*1900 2~15mm 3248*2720*1140 15*15mm 1650kg
ZJQZ-3725 3660*2440 2~15mm 4544*3285*1140 15*15mm 2050kg
ZJQZ-4026 3900*2500 2~15mm 4980*3385*1140 15*15mm 2250kg

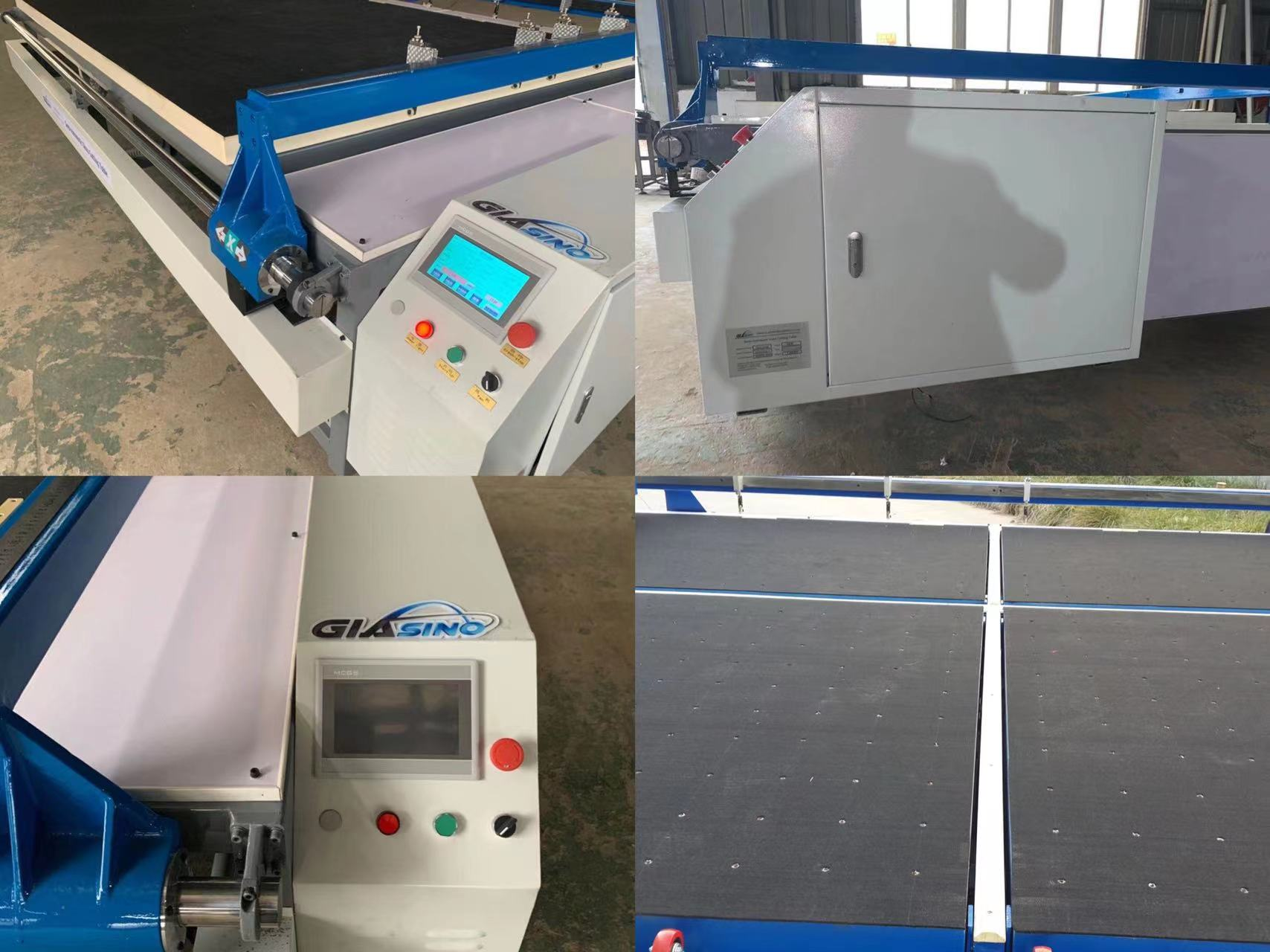

Detailed photos:


Product Feature:

Glasino semi-automatic double-bridge glass cutting machine is suitable for mass cutting of square and rectangular sheets of glass, for cutting large plate glass into small pieces at one time, the cutting process is completed by hand. The distance between cutting boxes can be adjusted manually, adjust the space of cutter rack, then push the horizontal and vertical bridge to begin mass cutting. it can equip with blowing and sucion accordingly to requirement. The material of tabletop has blanket, metal, resin, imitation leather, marble etc.
1.Omron PLC control            2. Multi-cutters, high efficiency and high precision
3. Self-lubricating system     4. Air float table for glass easy move
5. Removable cutting wheels 6. Cutting boxes interval distance manual adjustment
7. Auto-run available on the control panel 8. Both of the cutting arms return to origin after cutting work                                    9. Controlled by frequency converter
Company Profile:
Jinan Glasino Machinery Co.,Ltd founded in 2003, is the high-tech enterprises specializing in the production of Glass tempering furnace CNC glass cutting machine, insulating glass machine, curtain wall glass machine, market share ranks first in the same line. Main products are: Laminated glass cutting machine, Automatic glass Cutting line, Multifunctional glass cutting machine, Insulating glass production line, Automatic insulating glass CNC sealing machine, Aluminum spacer bending machine, Desiccant filling machine etc, full set processing machines for insulating glass. We have passed European CE certificate, Switzerland SGS certificate ,ISO 9001: 2008 quality control system, win good reputation from domestic and international customers. Outstanding quality is the basis of brand. Satisfying service is the guarantee or brand. Perpetual innovation is the soul of brand. Glasino people will continue making efforts and persist in taking the quality as the life of the enterprise. Continuously improve the production management level, research and develop more advanced technology to meet the needs of the market. Glasino will work with you to create a brilliant future.
Exihibition:
