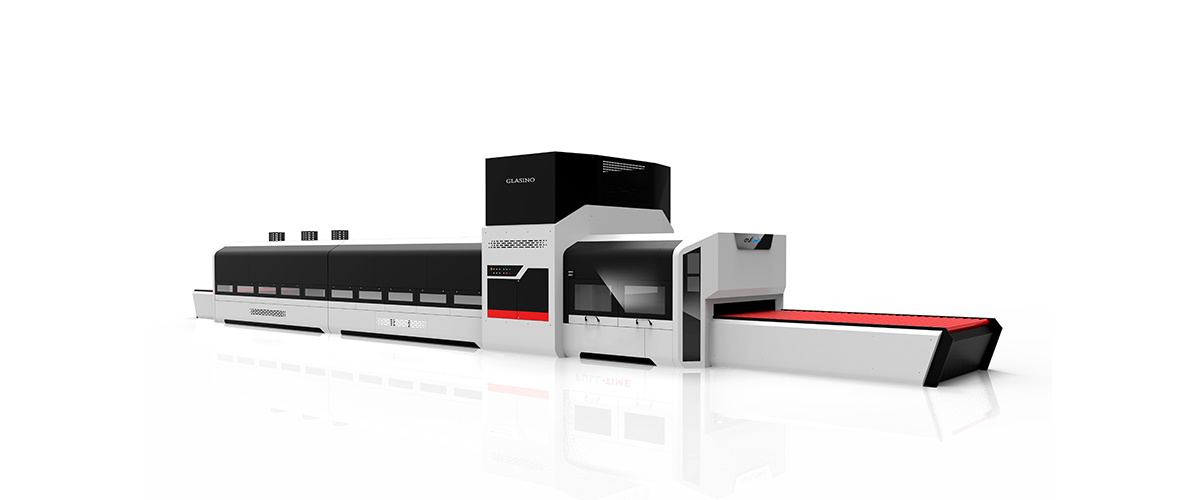

Glass Tempering Furnace

Product Description

DESCRIPTION

1.Machine Application
LXWG1208A bend Glass Tempering Machine is a special plant used to produce the bend tempered glass,which mainly used in the fields of side doors(sidelites)of automotives,trucks,shower room,furniture,etc.The side door of the automotive is single curvature and can be double curve and machine is continuous type.Our customer produced the side doors for Audi,Toyota,Honda,Hyundai,Peugeot,etc.

2.Supply Scope:
2.1.Loading/unloading table
2.2 glass cooling&forming section
2.3.Heating section(it is designed to double-chamber construction inside of heating oven)
2.4.bend tempering&forming section
2.5.Unloading table
2.6.Blower system(blower installed at side of machine)
2.7.Electrical&control system
2.8.Emergency power system(EPS)for emergency driving system
2.9.Emergency cooling system
2.10.Spare parts as listed in appendix
2.11.Technical documents
2.12 LED display
2.13 Pressing rollers accessories will be supplied,for fast and convenient replacement.
2.14 ceramic washers will be used together with stainless washer for fixing heat-insulating material in the heating oven.
2.15 more thickness of insulating material used at front and back oven door side and top of Furnas about 330mm thickness.
2.15 Isolite brand material for part insulating.

3.Technical Specifications:
3.1.Basic parameters

bend Tempered Glass (Six working position)
Max. single bend Glass Size	⌒650x1200 mm(Eight working position) ⌒800x1200 mm(Six working position)
Max double curvature size	⌒800x1100mm(Five working position)
Min. Glass Size	⌒280x200 mm
Glass Thickness	single bend 3.2-5 mm double curvature 3.2-5 mm
Blower Quantity & Power	355kw+55 kw (Controlled by frequency inverter)
Minimum Radius	R≥1200mm for 3.2-5 mm
Capacity	About 180-200 pcs per hour (3.2mm as sample)
Roller Pitch Of Heating Section	130+110+80mm (smaller pitch design)
Roller Pitch Of Bending Section	68mm (smaller pitch design)
Quality Standard	EN12150-1:2000, ECE R43 or ANSIZ-97.1
Finished product rate	≥96% (4mm as sample)

3.2.Installation Power&Transformer Capacity

	(KW)	Remark
Heating Power	1000 kw
Quenching Power	355kw+55 kw
Others	18 kw
Total	1428kw	The actual running power is about 70-80%
Transformer Capacity	≥1000KVA

3.3.Other requirements(Supplied by buyer)

Special Request		Remark
Ground Flatness	+0/-20 mm	Concrete more than 200mm in thickness
Air Compressor	1.5 m3 / Min, 0.8MPa	The compressed air should be free of water & oil, and be sufficient in terms of airflow & air pressure
Air Tank	0.61 m3
Consumption	0.3 m3 / Min
