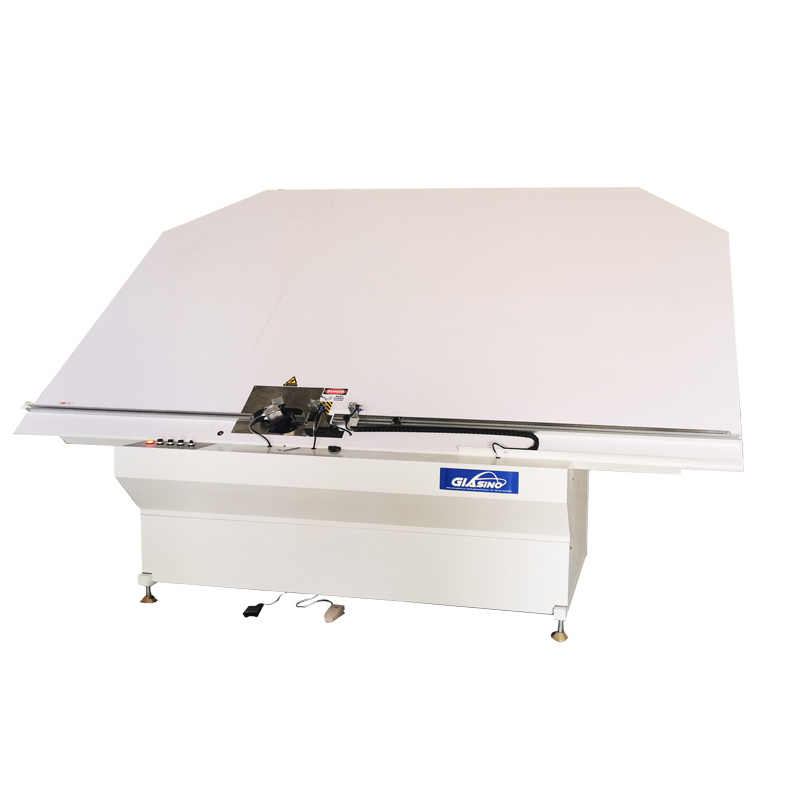

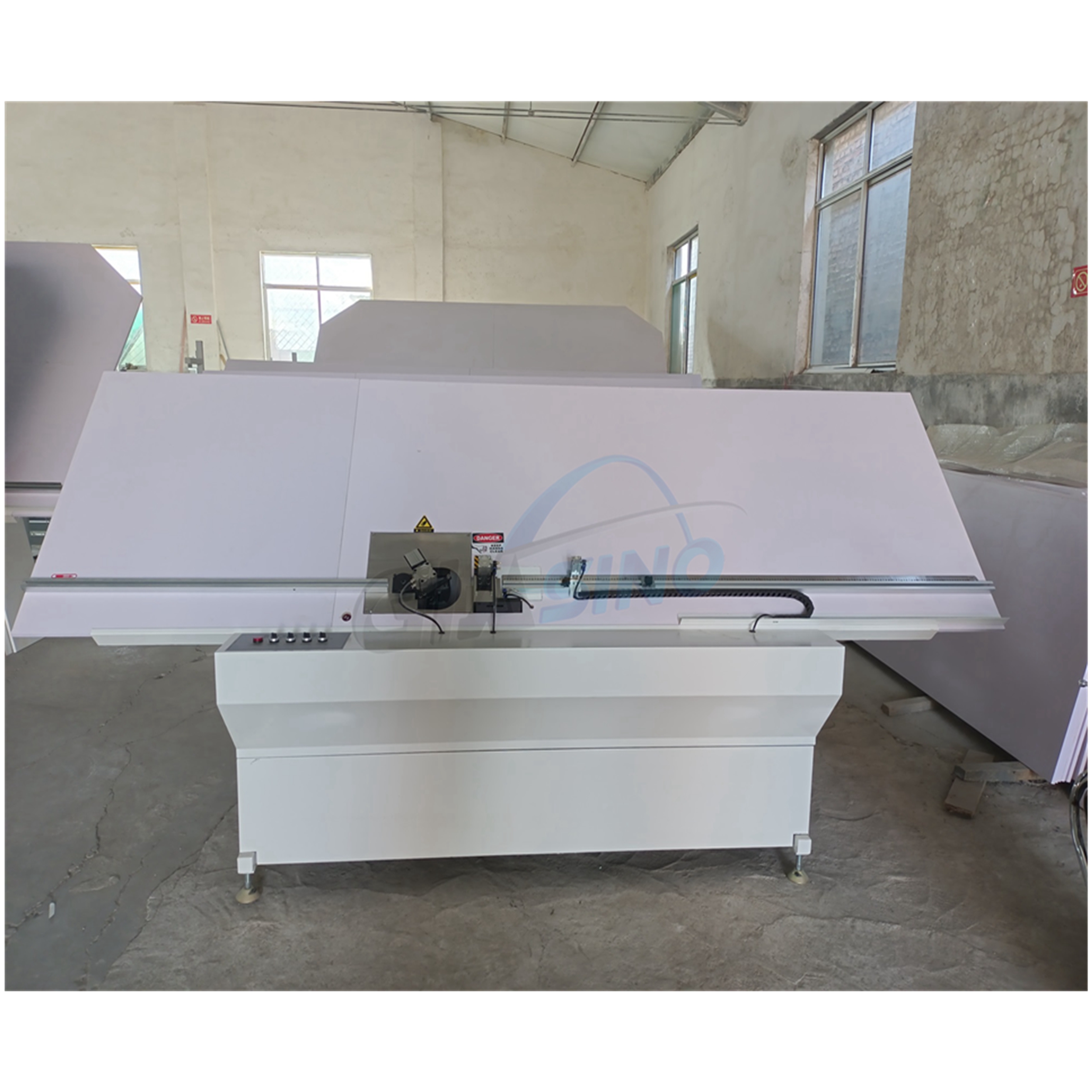

1. Parameters of automatic bending machine:
Dimensions: 3400MM*1600MM*2300MM
Working pressure: 0.2-0.8Mpa
Working voltage: 220V (380V)
Aluminum frame size: minimum 300MM*300MM
Maximum 2000MM*2000MM

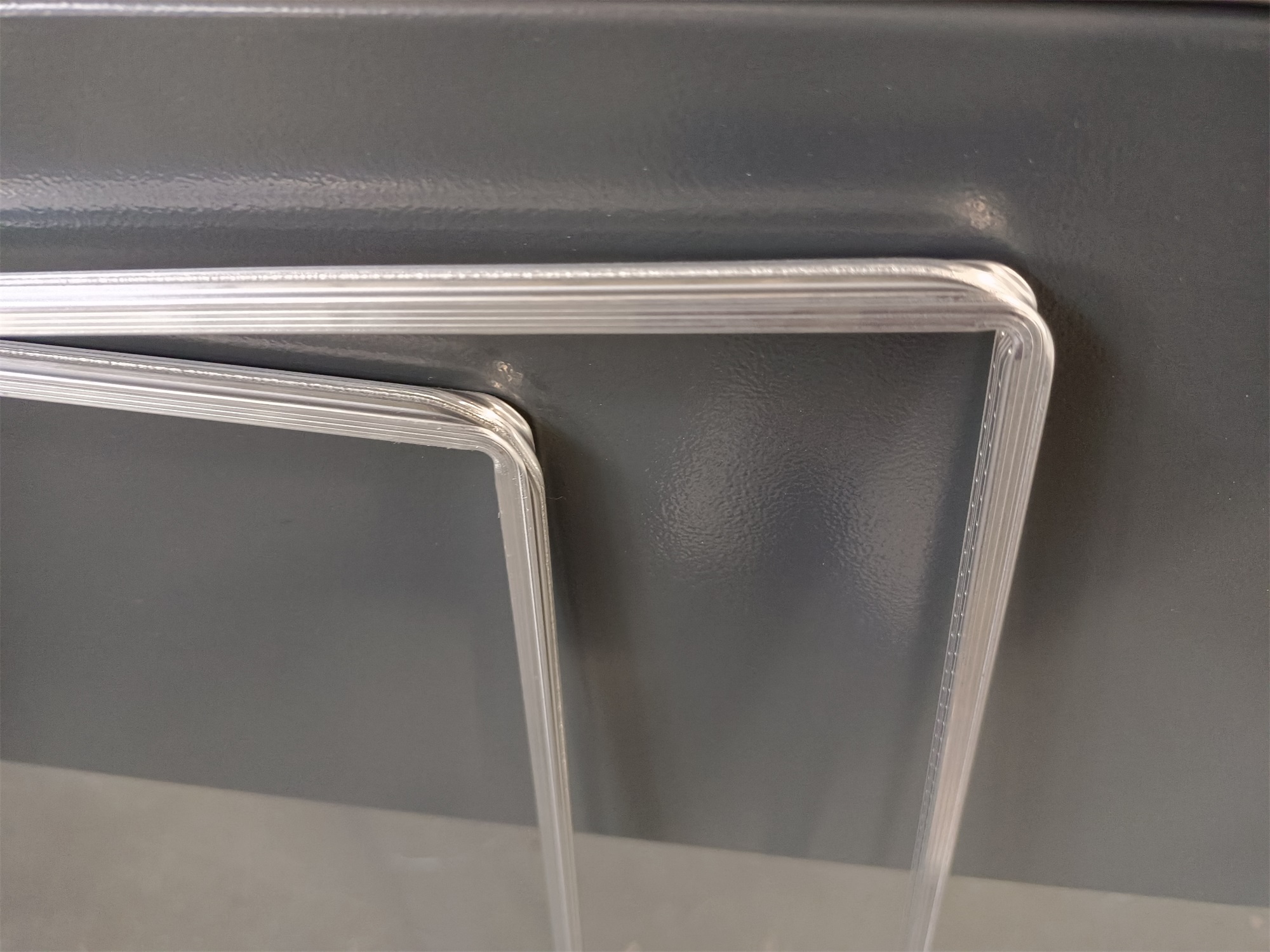

Bending angle: 90 degrees (regular)
Dimensional deviation: ±0.5MM
Weight: 400KG
2. Technical features:

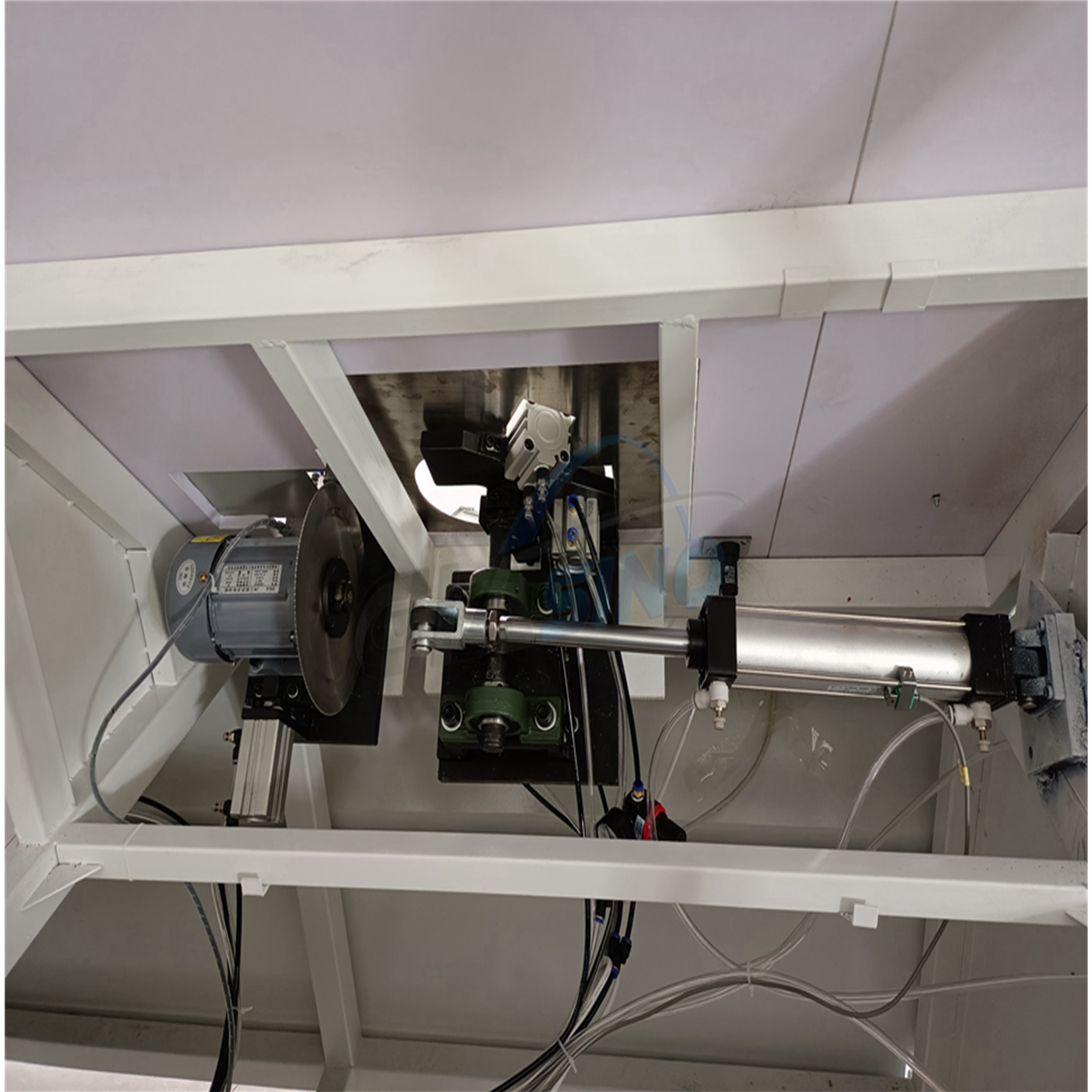

1. Pneumatic pressing material is used for pneumatic bending, which has good flexibility, high stability and easy maintenance.
2. Automatic positioning, accurate size and high production efficiency.
3. Automatic cutting of aluminum strips, safe, fast and precise.
4. Adjust the switch position to achieve 6-sided and 8-sided bending.
5. Adopt industrial-specific PLC to control the computer, with good stability and performance.

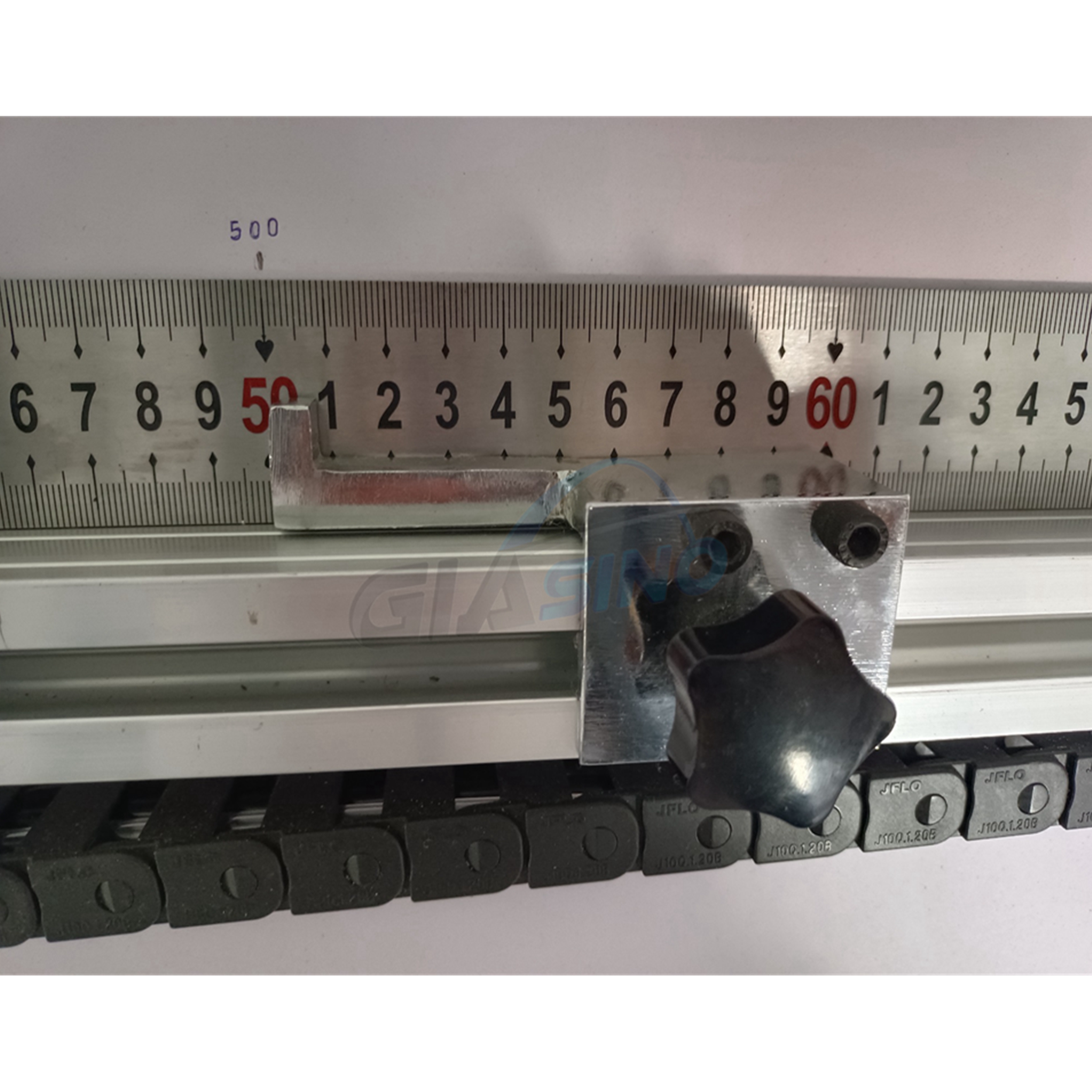

6. The new ruler belt installation method is adopted, and there is no need to calculate the bending size, which is convenient and fast.
3. Key components:
| Name | Brand | Remark |
| Controller | TECO | Taiwan |
| Cylinder | SMC | Japan |
| Solenoid valve group | starfish | China |
| Intermediate relay | OMRON | Japan |
| Contactor, air switch | People's Electric | China |
| Switch indicator | taibo | China |
