Glass PVB Semi-Automatic Production Line PVB Laminated Glass Making Machine

Product Description

图片_1

Semi-automatic/full automatic PVB laminated/laminating/lamination glass line machine is made of two or more pieces of glass by high temperature and high pressure with PVB film. The operation is easy and safety.

The whole line consists of:
(1).Glass Washing and Drying Machine
(2). Lamination Positioning and Transmission Machine
(3).Movable Scissor Cup Suction Hanger
(4). PVB Film Unwinding Machine with Driver
(5). Transition Conveying Machine
(6).Prelaminating and Press Section.
(7). Autoclave+Other auxiliary equipment.

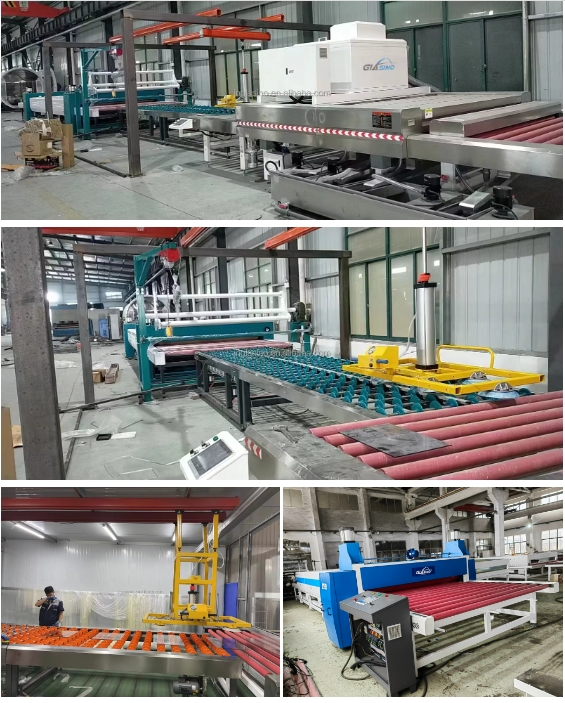

Detailed Pictures of Machine
Glasino Hot Sale PVB laminated glass is suitable for outdoor architectural glass, decorative glass, high-end office building exterior walls, banks,jewelry stores, bulletproof glass, etc.

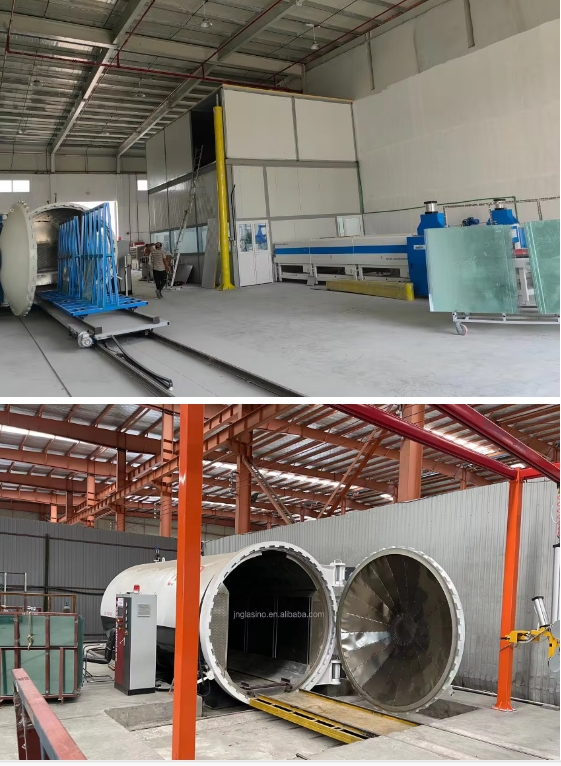

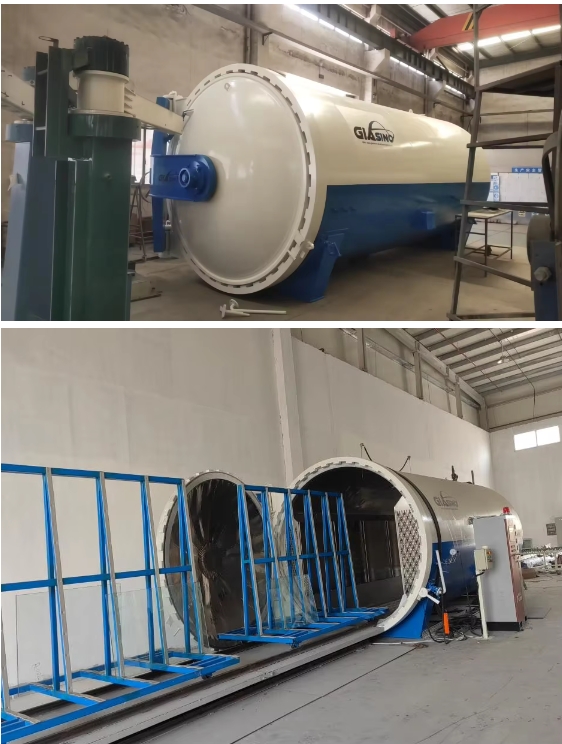

Autoclave is the key equipment of laminated glass production, firmly will the laminated glass hold together through heating,cooling, pressure and cooling etc process flow. Equipment is composed of autoclave body with heating, coiling system and through insulation and control system. Our autoclaves are smart, good sealing performance and energy saving.
Technical parameters
Item
Parameter
Maximum processed glass size
2440x6000mm/3300x6000mm
Minimum processed glass size
400×400mm
Processing laminated glass thickness
6-80mm
Power supply
3 Phase,380V,50Hz or customized
Total power
160KW+Autoclave power 150KW=310KW TOTAL
