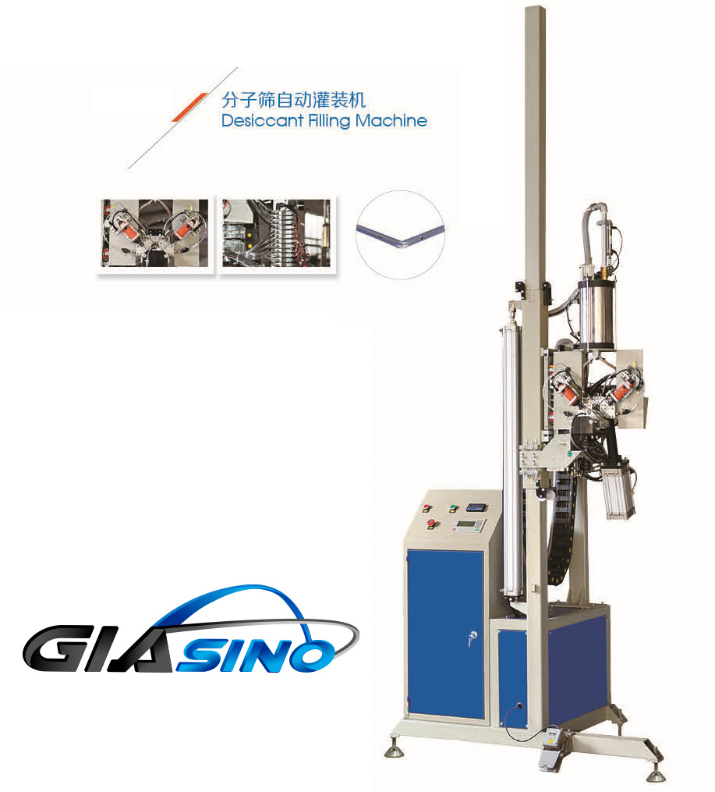

FZS02 Automatic Desiccant Filling Machine

haracteristics:

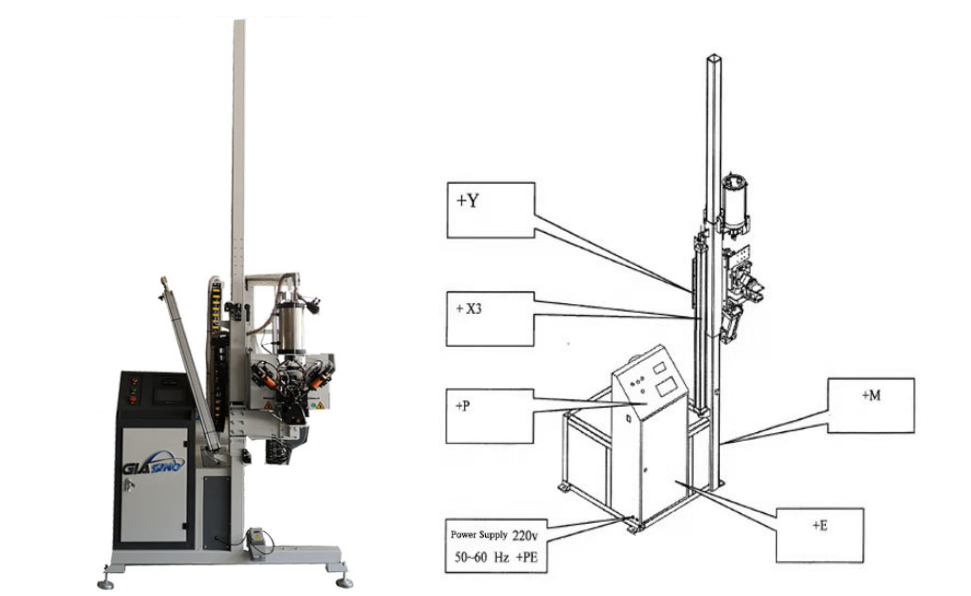

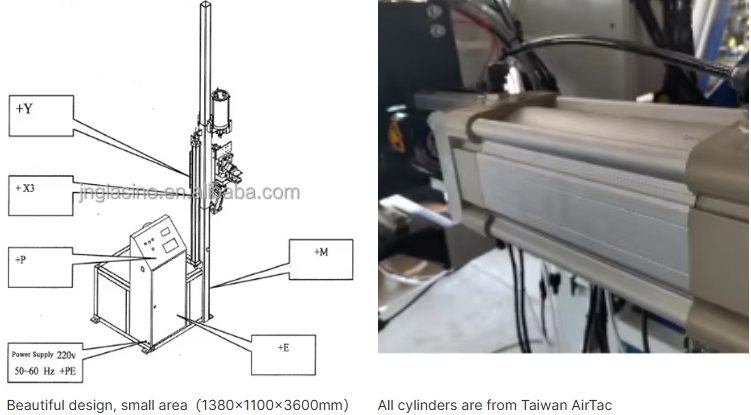

1.Beautiful design, small area(1380×1100×3600mm

2. All cylinders are from Taiwan AirTac

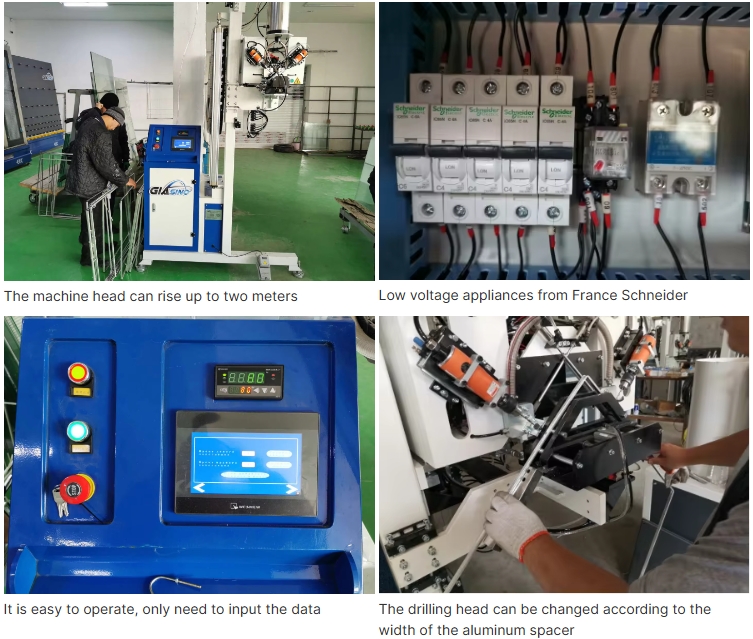

3. The machine head can rise up to two meters

4. Low voltage appliances from France Schneider

5. Omron PLC

6. It is easy to operate, only need to input the data

7. One key to change the butyl, convenient and fast

8. Simple operation, three steps to complete the filling

9. The drilling head can be changed according to the width of the aluminum spacer

Brief introduction:

PLC system to control the operation

This machine is suitable to fill the spacer shaped by the automatic spacer bending machine and the Normal straight pin spacer

The filling height can be adjusted according to the size of the aluminun spacer

It can feed the needed desiccant automatically

It owns the unique and advanced feeding device

The key components are supplied by international well-known manufactures

Technical parameters:

Desiccant diameter: 0.5-0.8mm

Filling aluminum spacer size: Min.150*150mm Max. 2000*2000mm

Filling speed: 5-8 seconds (1000*1000mm9A)

Aluminum spacer size: 6-24mm

Air supply: 0.6MPa

Power supply: AC220V 50HZ, 1KW

Figure Dimension: 900×900×2500mm

Total Weight: 300Kg

Main parts:

Machine Detail Picture Reference

Packing & Delivery

We will use PE film cover the machine, and add the metal pallet for Automatic Desiccant Filling Machine.
