Product Description

Product features:

1. Adopt split design of overhead high circulation heat fan

2. Frequency conversion precision control of air volume to ensure rapid glass heating uniform heat

3. Clean, efficient, not easy to deformation, long service life

4. Convection system of high temperature resistant and oxidation resistant stainless steel

Tempered glass: offline, online low-E glass, ultra white glass, screen printing glass, embossed glass, colored glass, white glass and so on

Technical specification:

Model	Max. Glass size（mm）	Min.Glass size（mm）	Glass thickness（mm）	Production（㎡/h）	Installed capacity（KVA）
AT-TAQ1825	1800*2500	100*250	3-19	81	315
AT-TAQ2030	2000*3000	100*250	4-19	108	400
AT-TAQ2036	2000*3660	100*250	4-19	131	500
AT-TAQ2436	2440*3660	100*300	4-25	160	630
AT-TAQ2442	2440*4200	100*300	4-25	186	630
AT-TAQ2450	2440*5000	100*300	4-25	222	800
AT-TAQ2460	2440*6000	100*300	4-25	266	1000
AT-TAQ2842	2850*4200	200*350	5-25	221	800
AT-TAQ2850	2850*5000	200*350	5-25	263	1000
AT-TAQ2860	2850*6000	200*350	5-25	316	1000
AT-TAQ3050	3000*5000	200*400	5-25	277	1000
AT-TAQ3060	3000*6000	200*400	5-25	327	1250
AT-TAQ3350	3300*5000	200*400	5-25	297	1000
AT-TAQ3360	3300*6000	200*400	5-25	335	1250
AT-TAQ3380	300*8000	200*400	5-25	469	1600

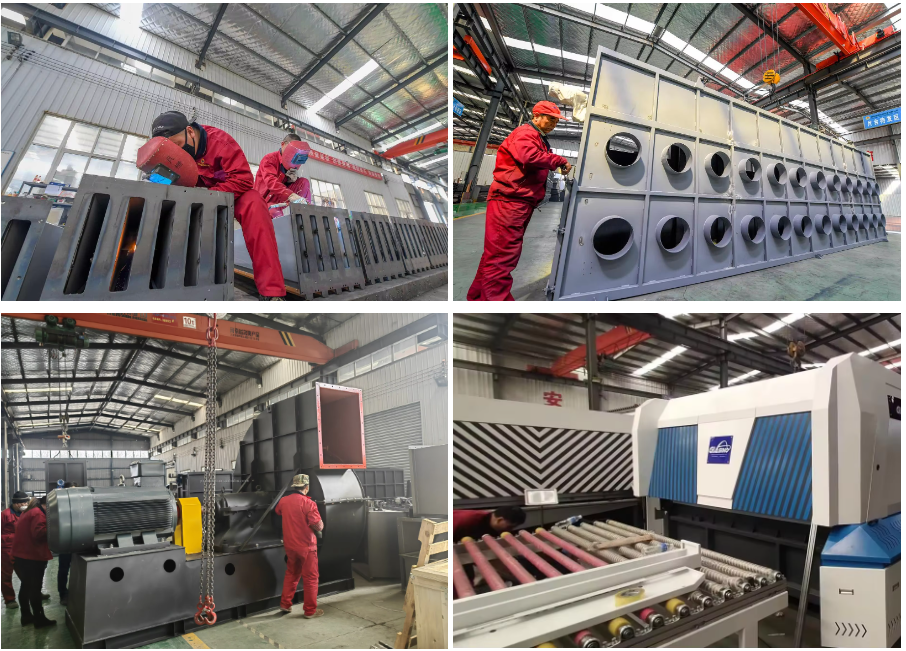

Glass Tempering Furnace Production at our factory:

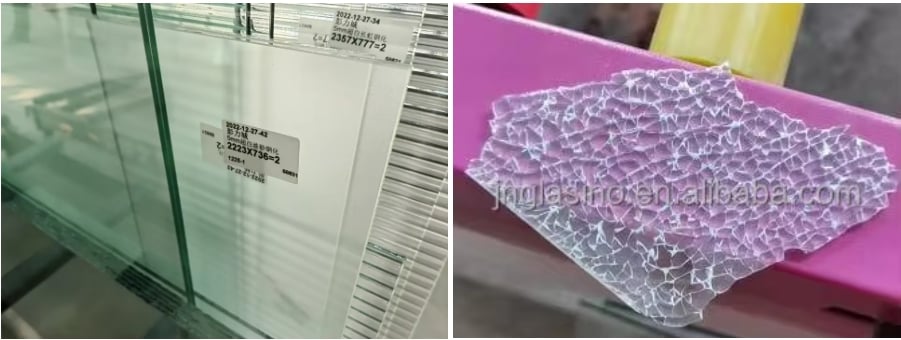

Tempered Glass Samples:

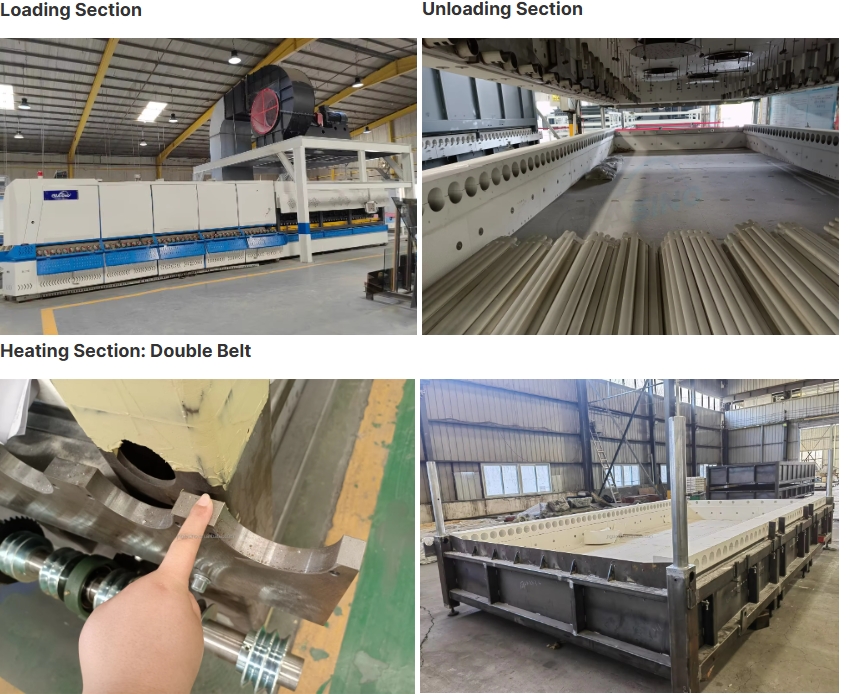

Machine Detail Picture Reference

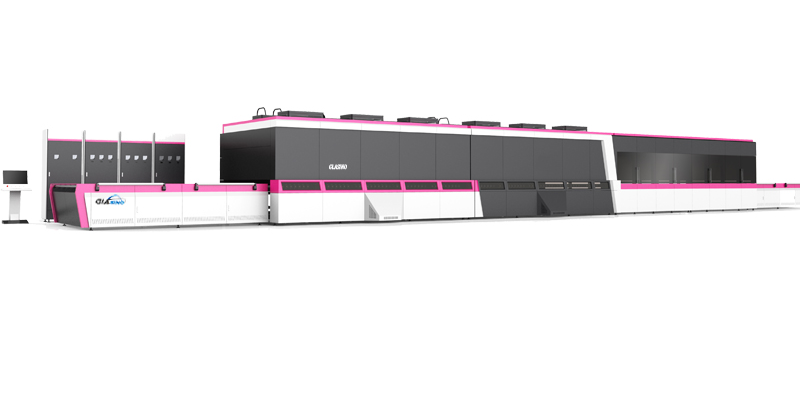

Full Convection Type: Top forced fan convection, bottom compressed air.

图片_1

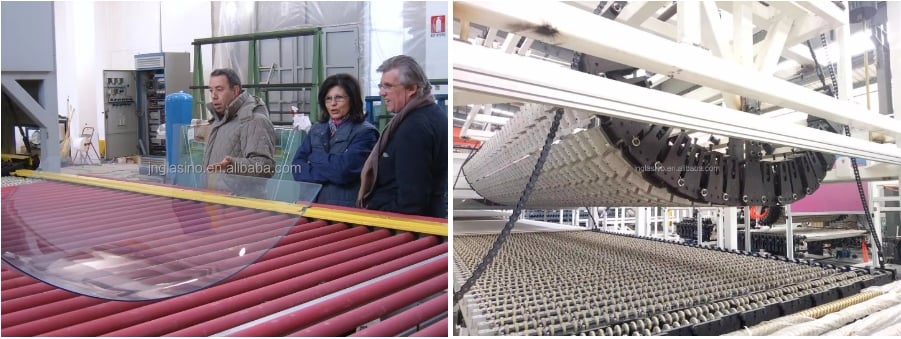

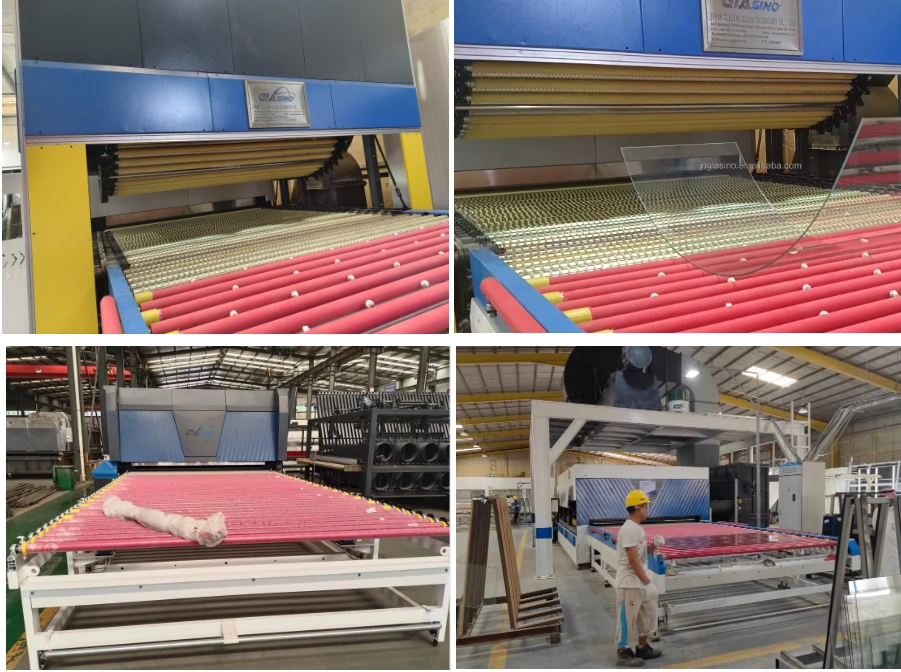

Soft Shaft Bending Section


Hard Shaft Bending Section



Company Profile:
Jinan Glasino Machinery Co.,Ltd founded in 2003, is the high-tech enterprises specializing in the production of Glass tempering furnace CNC glass cutting machine, insulating glass machine, curtain wall glass machine, market share ranks first in the same line. Main products are: Laminated glass cutting machine, Automatic glass Cutting line, Multifunctional glass cutting machine, Insulating glass production line, Automatic insulating glass CNC sealing machine, Aluminum spacer bending machine, Desiccant filling machine etc, full set processing machines for insulating glass. We have passed European CE certificate, Switzerland SGS certificate ,ISO 9001: 2008 quality control system, win good reputation from domestic and international customers. Outstanding quality is the basis of brand. Satisfying service is the guarantee or brand. Perpetual innovation is the soul of brand. Glasino people will continue making efforts and persist in taking the quality as the life of the enterprise. Continuously improve the production management level, research and develop more advanced technology to meet the needs of the market. Glasino will work with you to create a brilliant future.
