Double Layers Single Work Station EVA Film Laminated Glass Machine

Product Description

Product description
1.Constant temperature heating mode of suction circulating air,balanced linear heating,fast heating speed,thermal balance,improve product quality and yield.
2.Open the door on both sides.It can work in one-sided,double-station or double-sided,double-deck cycle with high output.
3.Independent intelligent control cabinet,intelligent temperature control prediction program,automatic completion of alarm function,operation is very convenient.
4.Leakage safety devices to ensure personal safety.
5.The design is reasonable,the volume is small,the area is saved,and the particularity of the production site is fully utilized.


Machine parameters and configuration

Rated Voltage 380 V
Unfold Dimension 7150mm*2630mm*1600mm
Heat Tube Finned Heating Tube  ( They are connected by copper , Uniform heat dissipation , and of a long life)
Heating Power / Total Power 27KW
Glass Size 2000 mm×3000mm
Circulating Blower 4 Sets ( Multi-wing, Low Noise, Suction Type Circulating Blowers With higher Air Flowing )
Lifting Platform 1 set ( Automatic Location With 4 pcs Of Cylinder
Micro PLC Touched Screen Control System 1 set (PLC & Touched Screen & Electricity are  Schneifrt   )
It works and stops automatically , when there is any damages , it will advice automatically
Silica Bags 2 Sets ( High Tear Resistance )
Tray 2 Sets( Frame size 40*80)
Pneumatic plug Self-closing copper pneumatic plug
Wheel / Orbit Bilateral Flat Wheel ( Strong and Sturdy, Easy push & Pull) / Separate Orbit
Vacuum Pump Unit Construction Pump , in order to keep vacuum when power is off
mesh 4 pcs
Note Main body : 100*100mm angle steel . Tray :Reinforced steel mesh 40*80mm, with adjusted angle . Insulation board: 75mm double metal heating insulation system . Sealing : Silicon sealing stripe with good sealing .

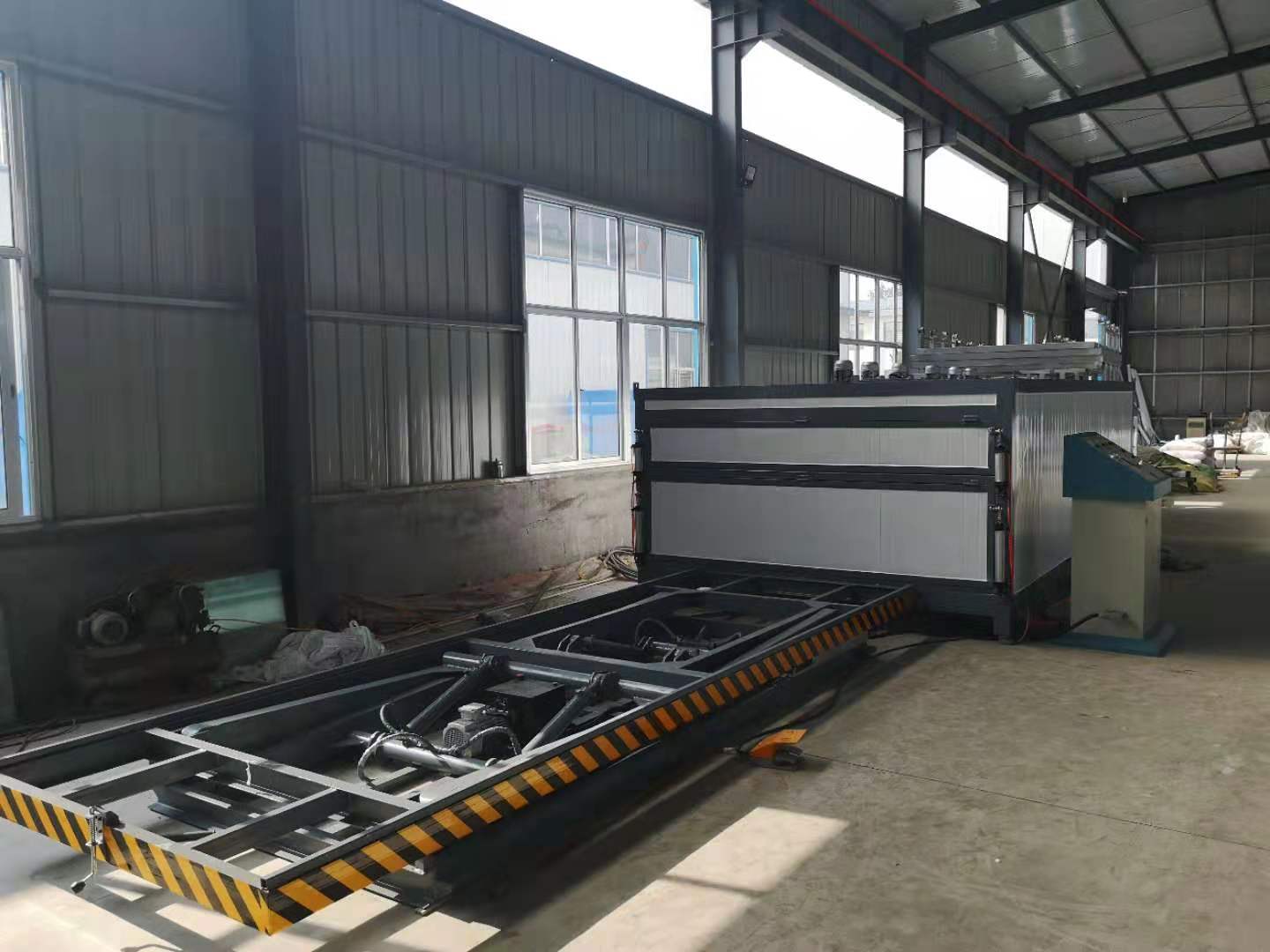

Machine:


Vacuum pumps (meeting EU standards)

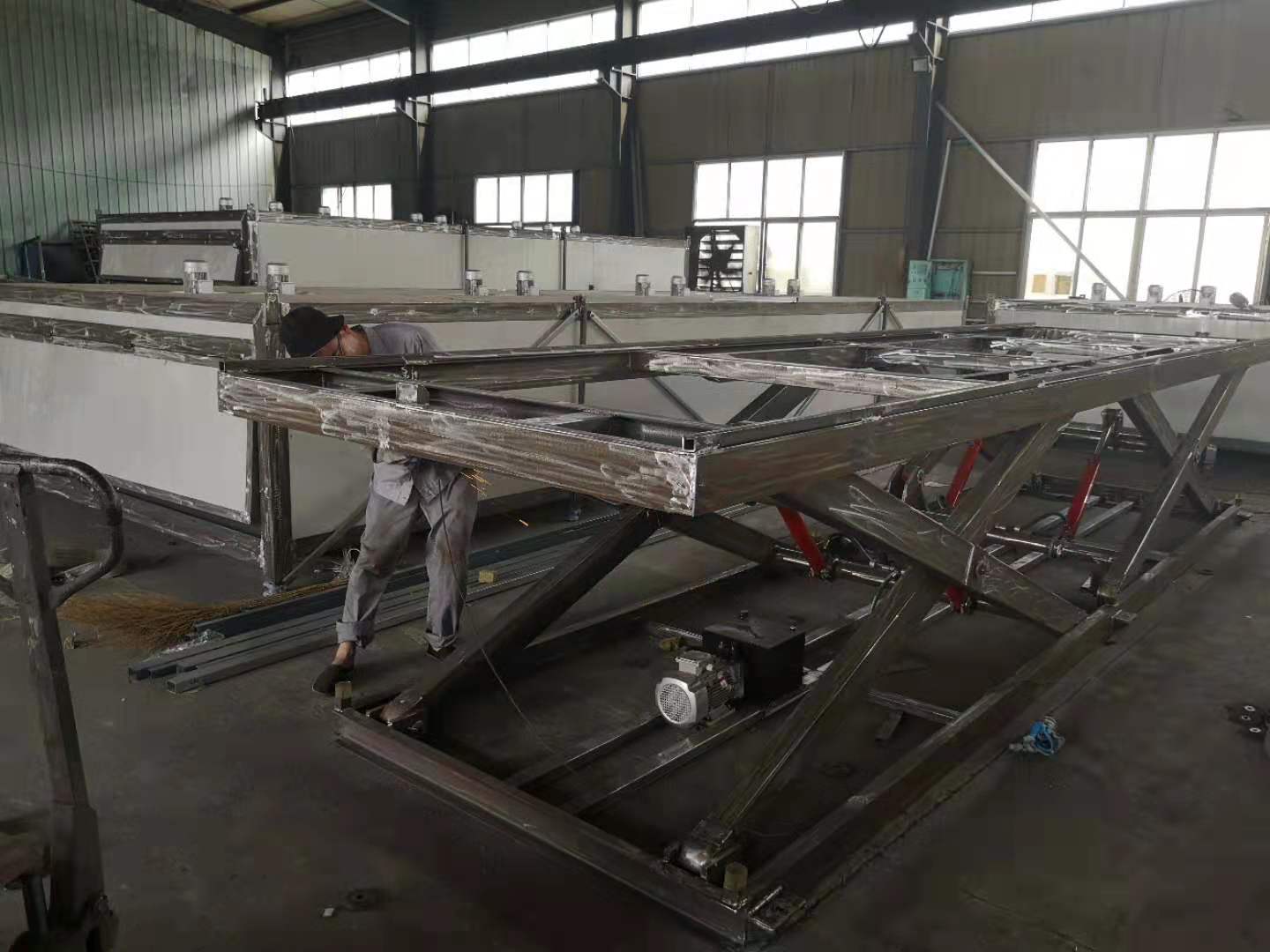

Thickened frame

架子 (1).jpg
