Double-chamber Glass Tempering Furnace, China Double-chamber Glass Tempering Furnace Manufacturers, Suppliers, Factory

Product Description

Product Description：

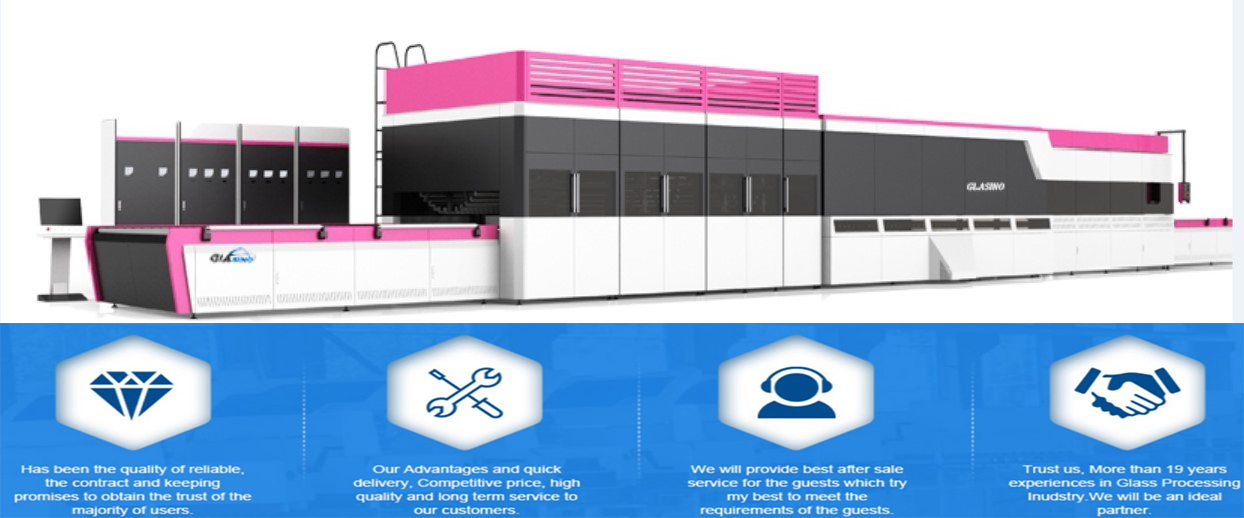

图片_1

Product features:

1. Adopt split design of overhead high efficiency circulating heat fan

2, frequency conversion precision control of air volume to ensure rapid glass heating uniform heat

3. Convection system of high temperature resistant and oxidation resistant stainless steel

4, clean, efficient, not easy to deformation, long service life

5, double furnace by preheating section and heating section of two parts of segmented heating

6. Unique convection heating system for high quality materials in the furnace cavity and precise intelligent temperature control system ensure that the glass can be evenly heated and the speed and precision of heating

7, the use of domestic high quality insulation material unique laying process and temperature isolation technology to ensure the best value of the furnace chamber temperature and the lowest value outside the furnace wall

Can process all kinds of float glass, embossed glass, coated glass and low-E glass, etc

Technical specification:

Model	Max.glass size（mm）	Min.glass size（mm）	Glass thickness（mm）	Production（㎡/h）	Installed capacity（KVA）
AT-TASQ2436	2440*8320	100*300	5-19	240	1250
AT-TASQ2442	2440*9400	100*300		277	1600
AT-TASQ2450	2440*11000	100*300		330	1600
AT-TASQ2460	2440*13000	100*300		396	2000
AT-TASQ2480	2440*17000	100*300		528	2500
AT-TASQ2850	2800*11000	200*350	5-25	400	1600
AT-TASQ2860	2800*13000	200*350		473	2000
AT-TASQ3050	3000*11000	200*400		492	2000
AT-TASQ3060	3000*13000	200*400		507	2500

Product display：

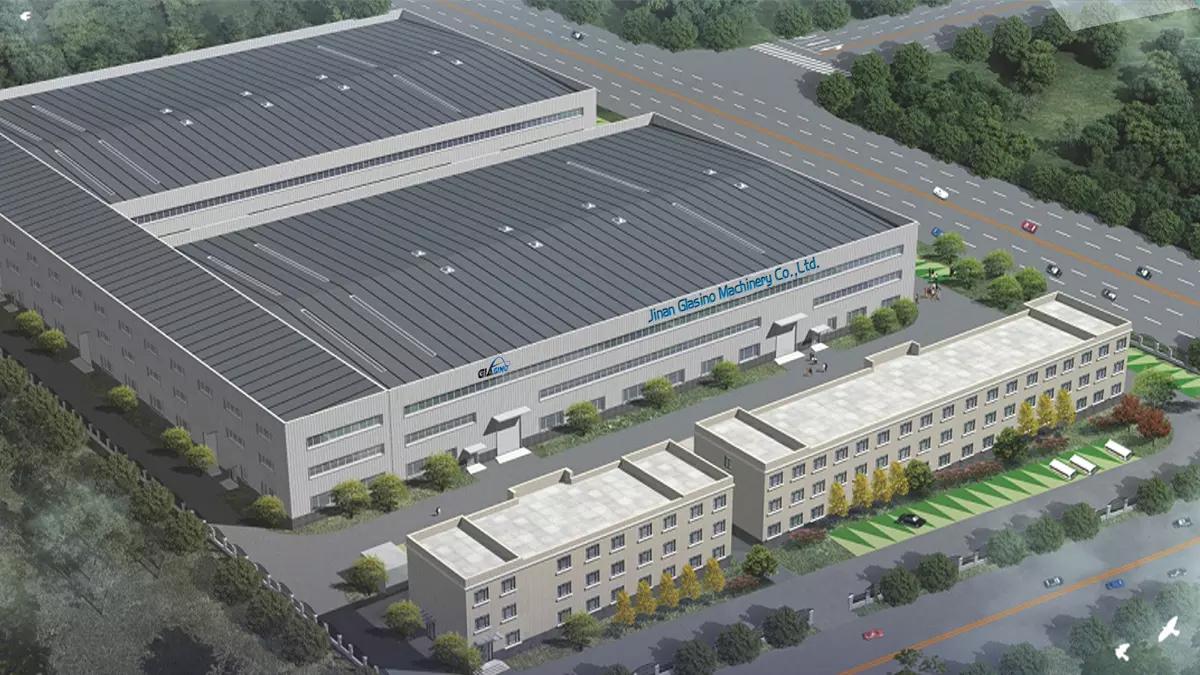

图片_1

Customer Photos：

Packing & Delivery：

Company Profile：

Jinan Glasino Machinery Co.,Ltd founded in 2003, is the high-tech enterprises specializing in the production of CNC glass cuttingmachine, insulating glass machine, curtain wall glass machine, market share ranks first in the same line. Main products are:Laminated glass cutting machine, Automatic glass Cutting line, Multifunctional glass cutting machine, Insulating glass productionline, Automatic insulating glass CNC sealing machine, Aluminum spacer bending machine, Desiccant filling machine etc, full setprocessing machines for insulating glass. We have passed European CE certificate, Switzerland SGS certificate ,ISO 9001: 2008 quality control system, win good reputation from domestic and international customers. Outstanding quality is the basis of brand.Satisfying service is the guarantee or brand. Perpetual innovation is the soul of brand. Glasino people will continue making efforts and persist in taking the quality as the life of the enterprise. Continuously improve the production management level, research and develop more advanced technology to meet the needs of the market. Glasino will work with you to create a brilliant future.

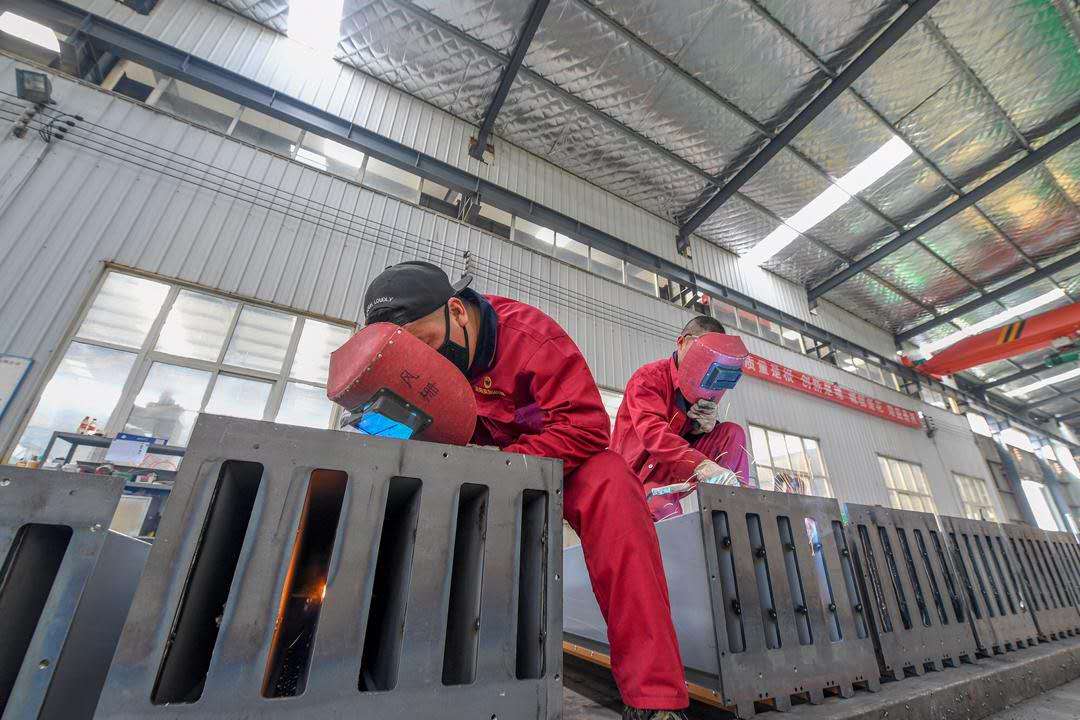

车间4.jpg 车间6.jpg
