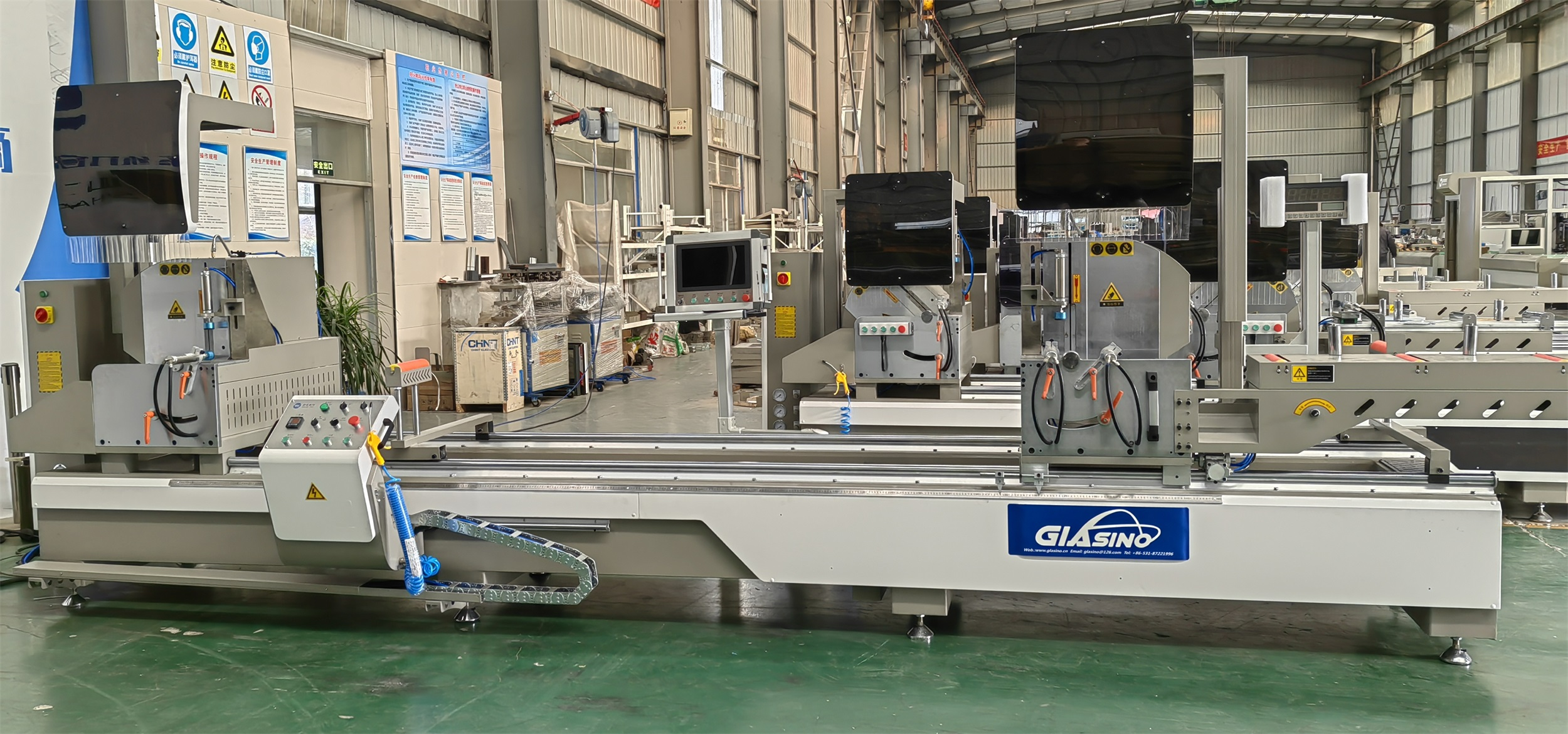

Digital Display Aluminum and PVC Double Head Cutting Saw

Product Description

1. Feature

1.1  The machine is used for cutting of aluminum profile or uPVC profile.

1.2  Imported carbides blade is of accurate processing and high endurance

1.3  The two heads can work alone, can also work at the same time

1.4  To cut out a section of desired length and two end angles

1.5  Right head adopts motor drive

1.6  Two saw head can be manually switching angle, realize the - 45 degrees, 90 degrees, 45 degrees angle cutting profile

2.Technical Parameter

Power Supply

380V50HZ

Motor Power

2x2.2kw

Cutting motor rotary speed

2800r/min

Air pressure

0.5-0.8MPA

Air consumption

200L/min

Saw Blade

D=500mm d=30mm

Cutting Width

max 150mm

Cutting Length

Max. 4200mm, min 380mm

Cutting Height

45°180mm, 90°240mm

Cutting angle

45° 90°

Dimonsion

5800 x 1500 x 1700mm

Weight

About 1500kg

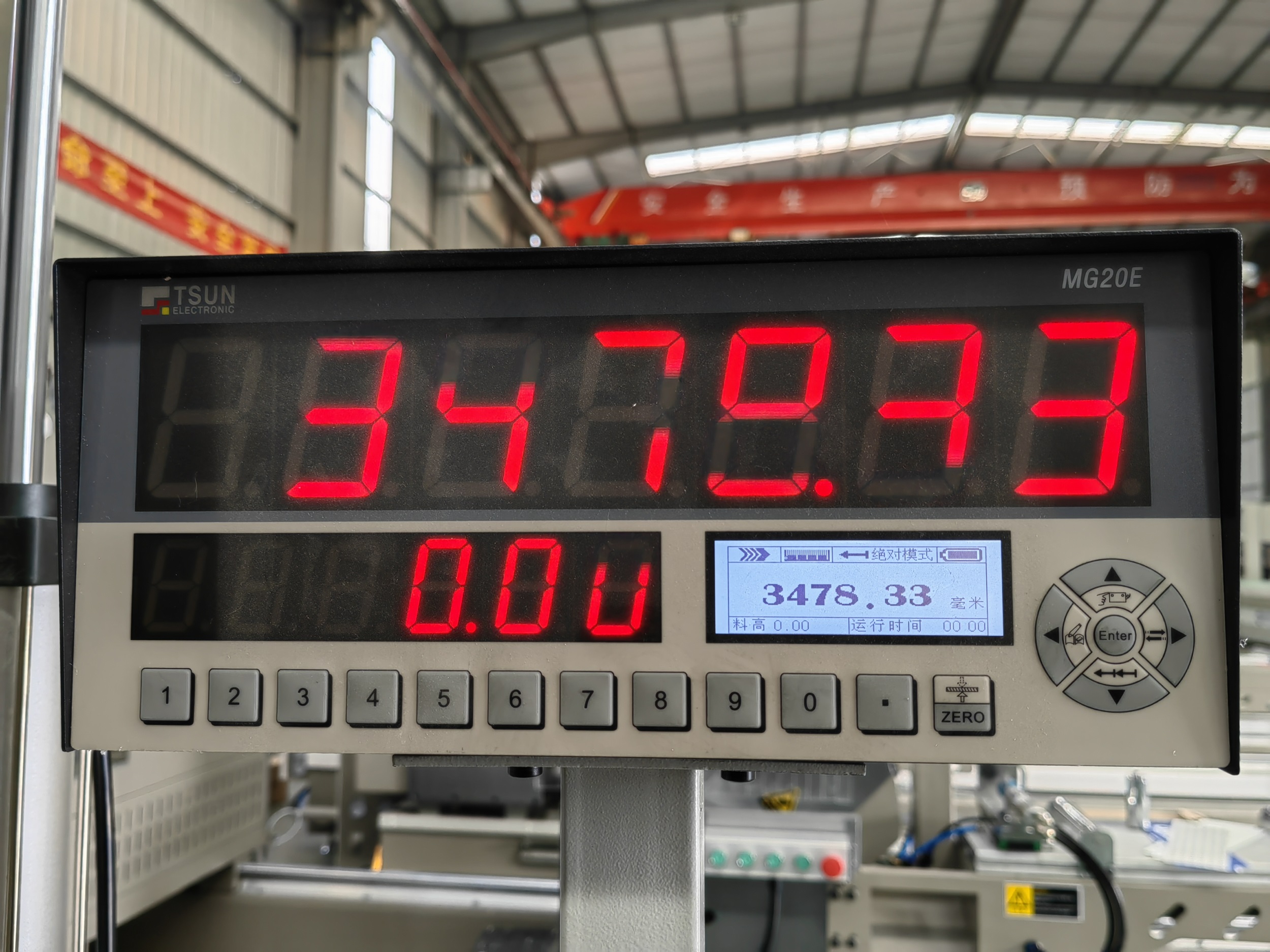

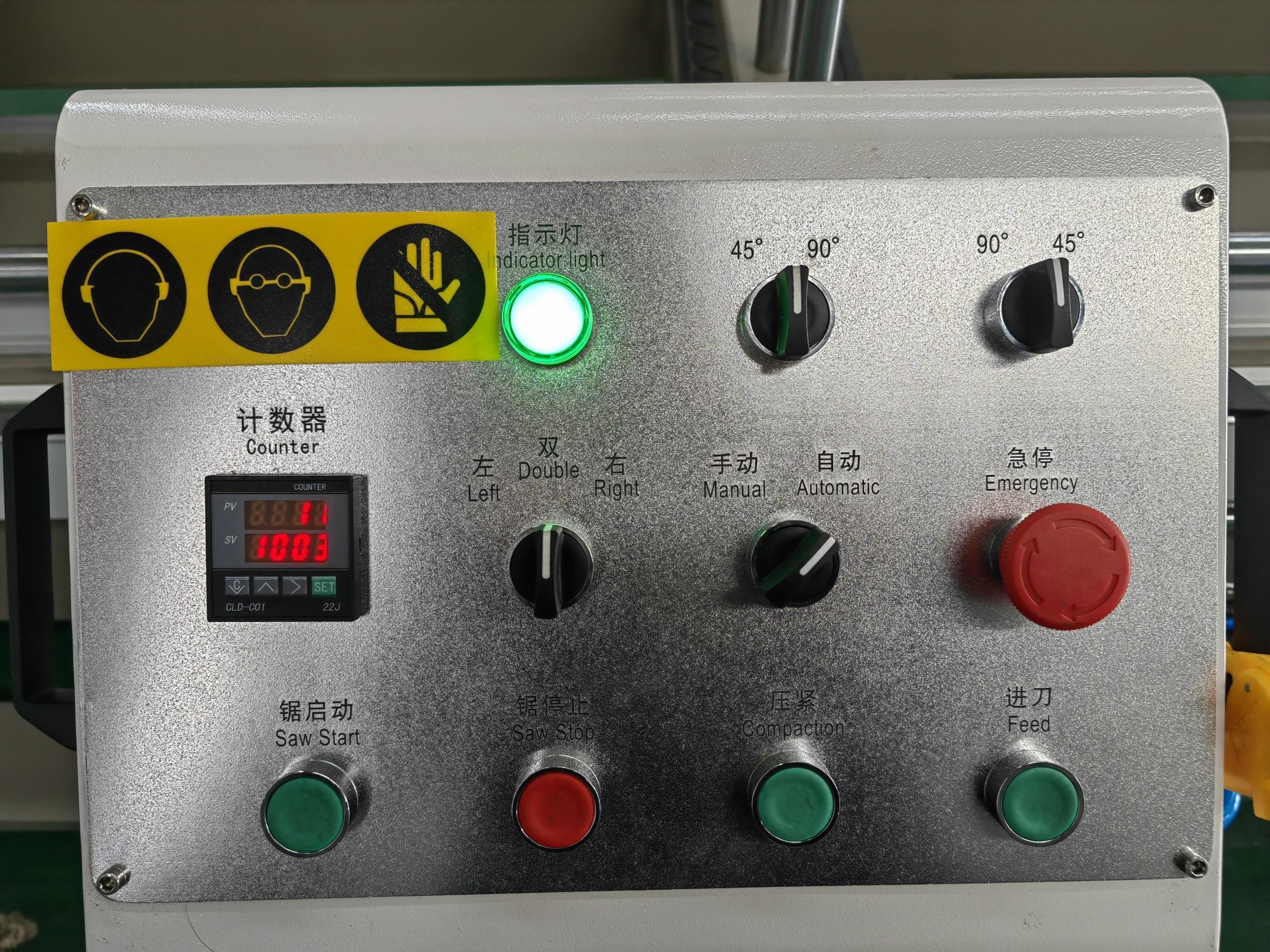

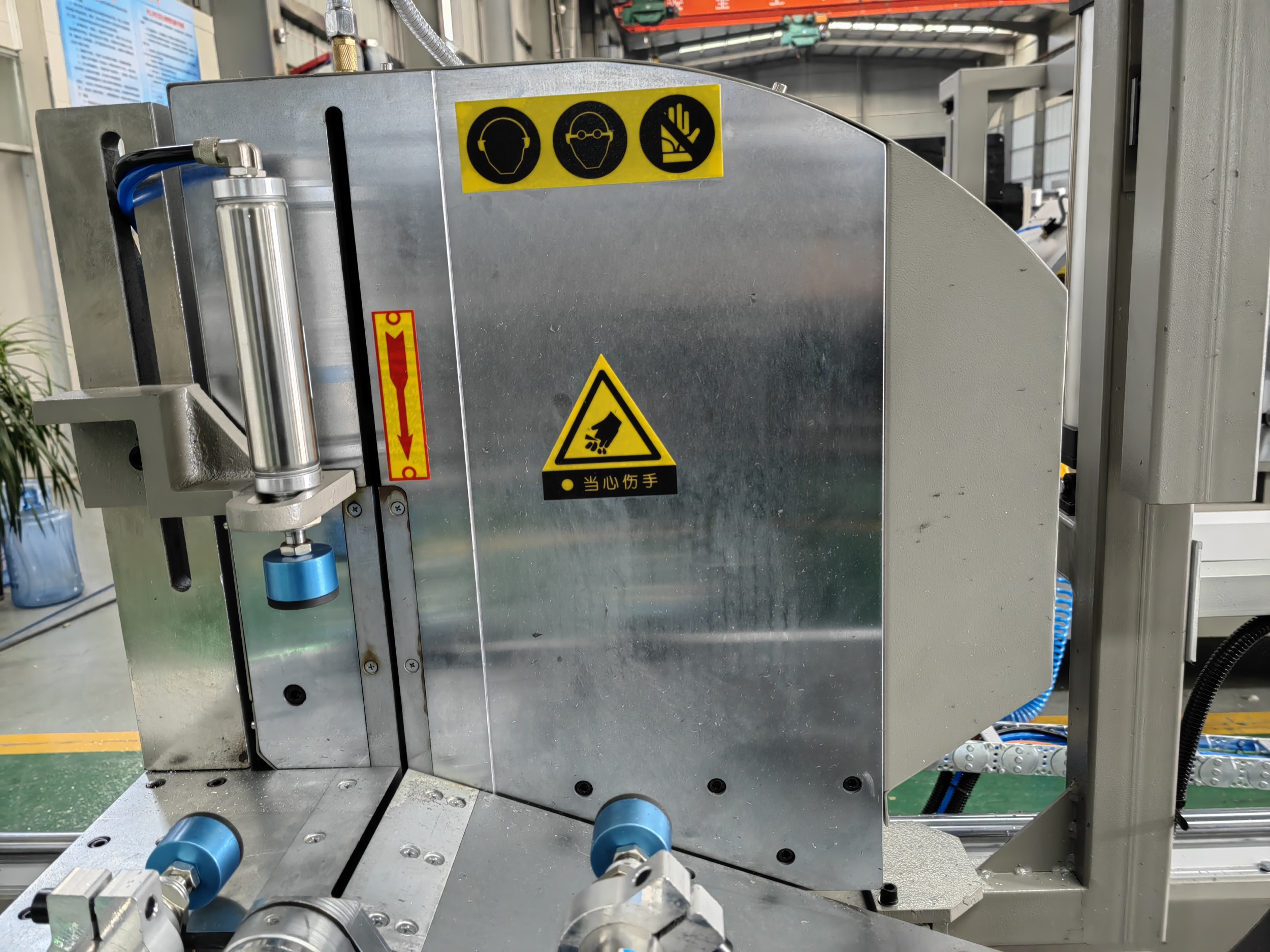

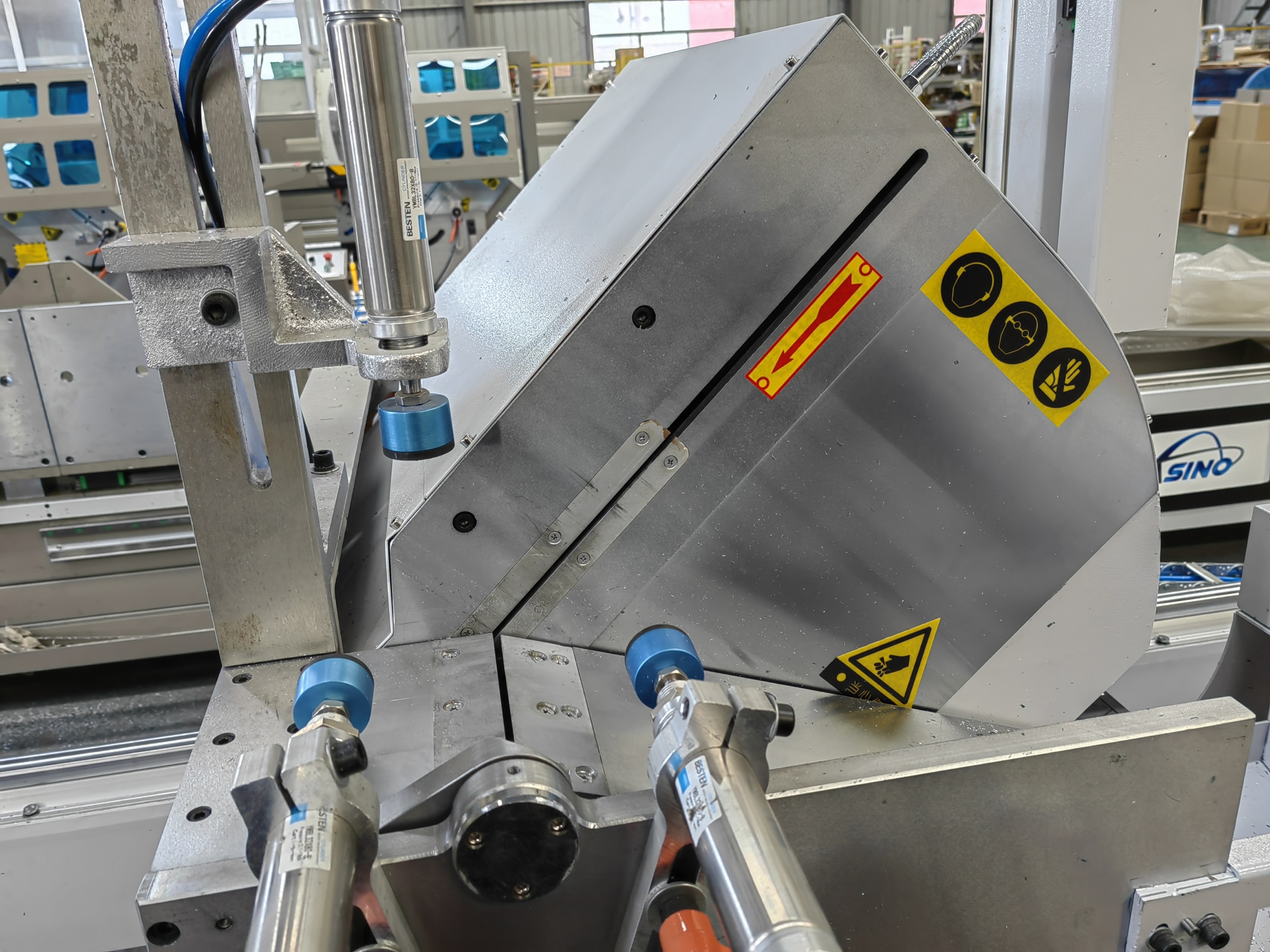

More pictures of Machine:

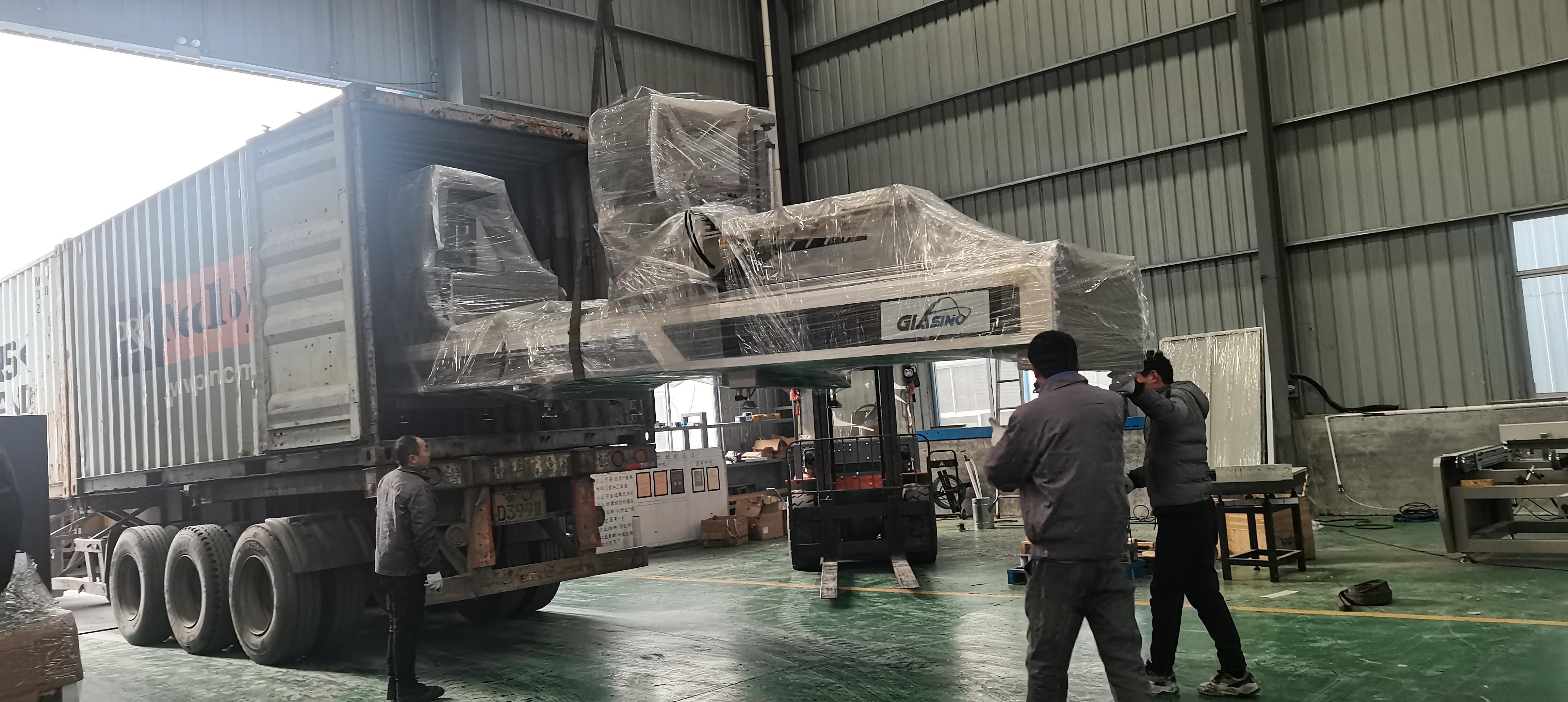

Packaging and Delivery
