Glass Cutting Machine

Product Description

1.GS-QSP-4228 Automatic Glass Loading Machine

Mechanical characteristic:

-Main bridge steel (Q345A ), perfect surface treatment

-High quality vacuum system, fast sucking speed and high stability

-One key original reset function, for improving work efficiency

-Trouble alarm system and safety alarm system

-Four-bar linkage glass lift structure

-High density PU material glass convey wheel

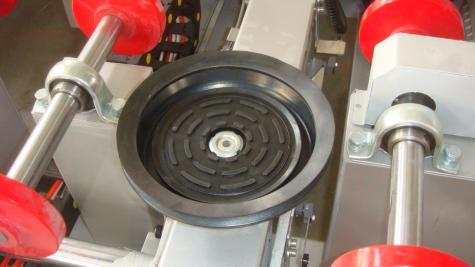

-Acrylonitrile-butadiene rubber suck disc

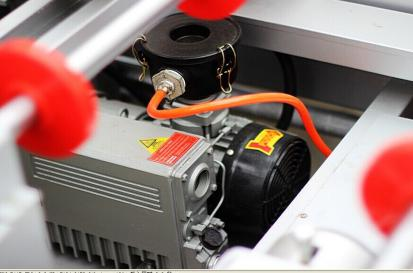

-40CBM/hour vacuum pump.

-Enclosed wire and air pipe set

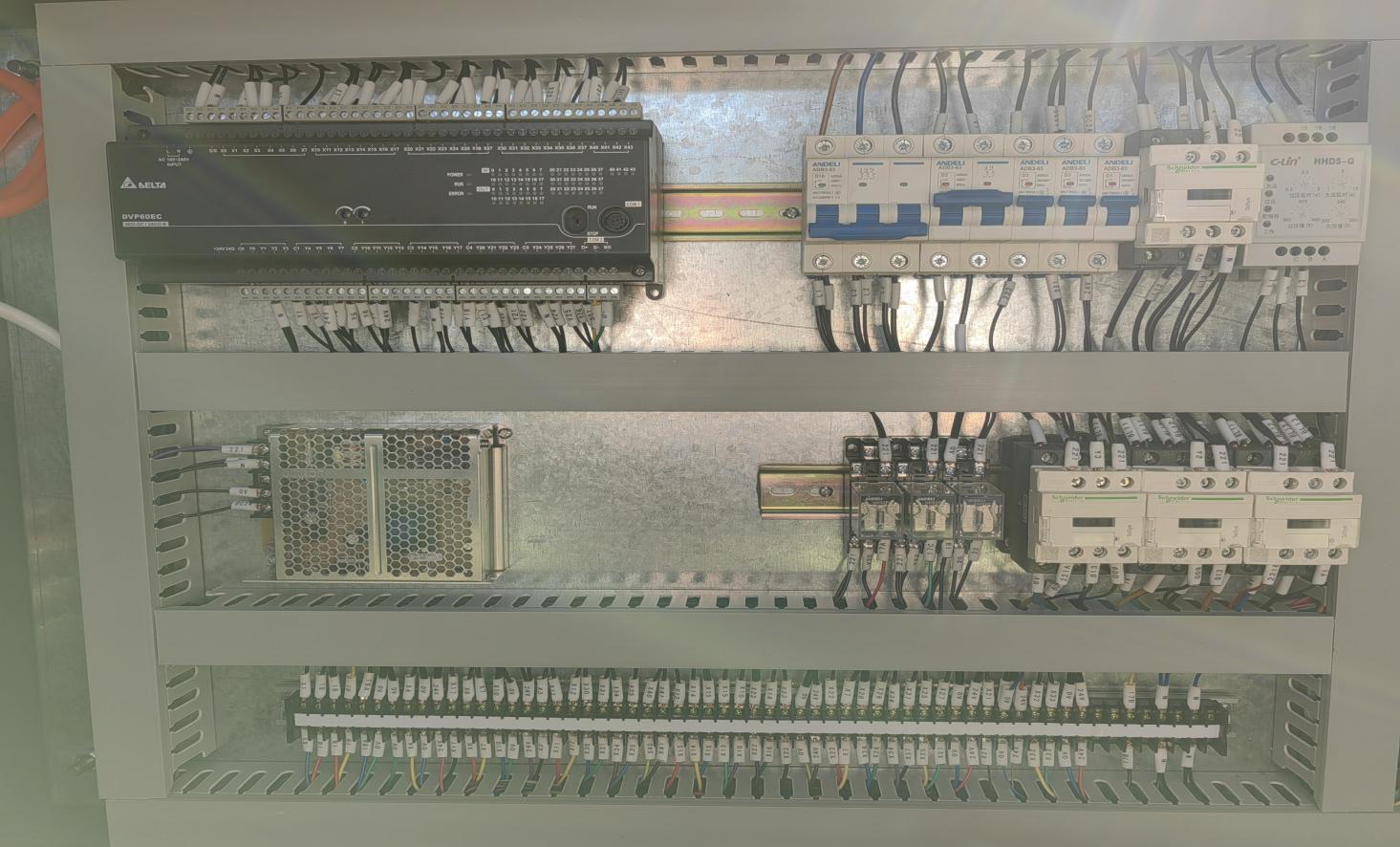

Main parts list:

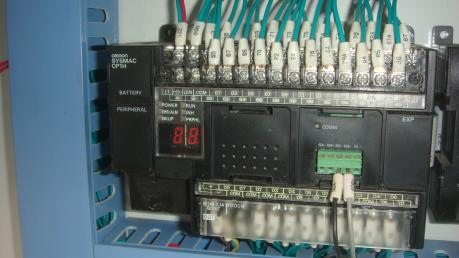

PLC: Delta Taiwan China

Touch screen: MCGS

Converter: Teco (Taiwan)

Sensor: Omron (Japan)

Technical introduction:

-Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm

-Chain convey after glass suck

-Both auto and manual modes

-Auto alarm system and emergency button for make sure safety operation

-English language touch screen operation

-Glass sheet quantity and station position auto set

-Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table

Technical parameter:

Max loading size

4200*2800mm

Loading glass thickness

3~19mm

Fastest cycle loading time

40~50S

Max loading depth

700mm

Max loading weight

900KG(19mm size 3660/2440)

Single side(double side) loading bars

4 arms

Suckers on each arms

3 pcs

Installation power

8KW

Air compressor

0.3Mpa

Vacuum pressure

-70~90Kpa(adjust by glass thickness)

More pictures

2.GS-QSP-6133 Automatic Glass Loading Machine

Mechanical characteristic:

Mn bridge steel (Q345A ), perfect surface treatment.
High quality vacuum system, fast sucking speed and high stability.
One key original reset function, for improving work efficiency.
Trouble alarm system and safety alarm system.
Four-bar linkage glass lift structure.
High density PU material glass convey wheel.
Acrylonitrile-butadiene rubber suck disc.
40CBM/hour vacuum pump.
Enclosed wire and air pipe set

Main parts list:

PLC: Delta (Taiwan)
Touch screen: MCGS
Converter: Teco (Taiwan)
Sensor: Omron (Japan)

Technical introduction:

Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm
Chain convey after glass suck
Both auto and manual modes
Auto alarm system and emergency button for make sure safety operation .
English language touch screen operation
Glass sheet quantity and station position auto set
Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table

Technical parameter:

Model

Max. glass size

Thickness

Dimensions (L*W*H)

Power

Air pressure

QSP-2620

2600*2000mm

2~19mm

3560*2200*900mm

8KW

0.6~0.8MPa

QSP -4228

4200*2800mm

3~19mm

5000*2850*900mm

8KW

0.6~0.8MPa

QSP -5133

5100*3300mm

3~19mm

5400*3000*900mm

8KW

0.6~0.8MPa

QSP -6133

6100*3300mm

3~19mm

6430*3340*900mm

8KW

0.6~0.8MPa

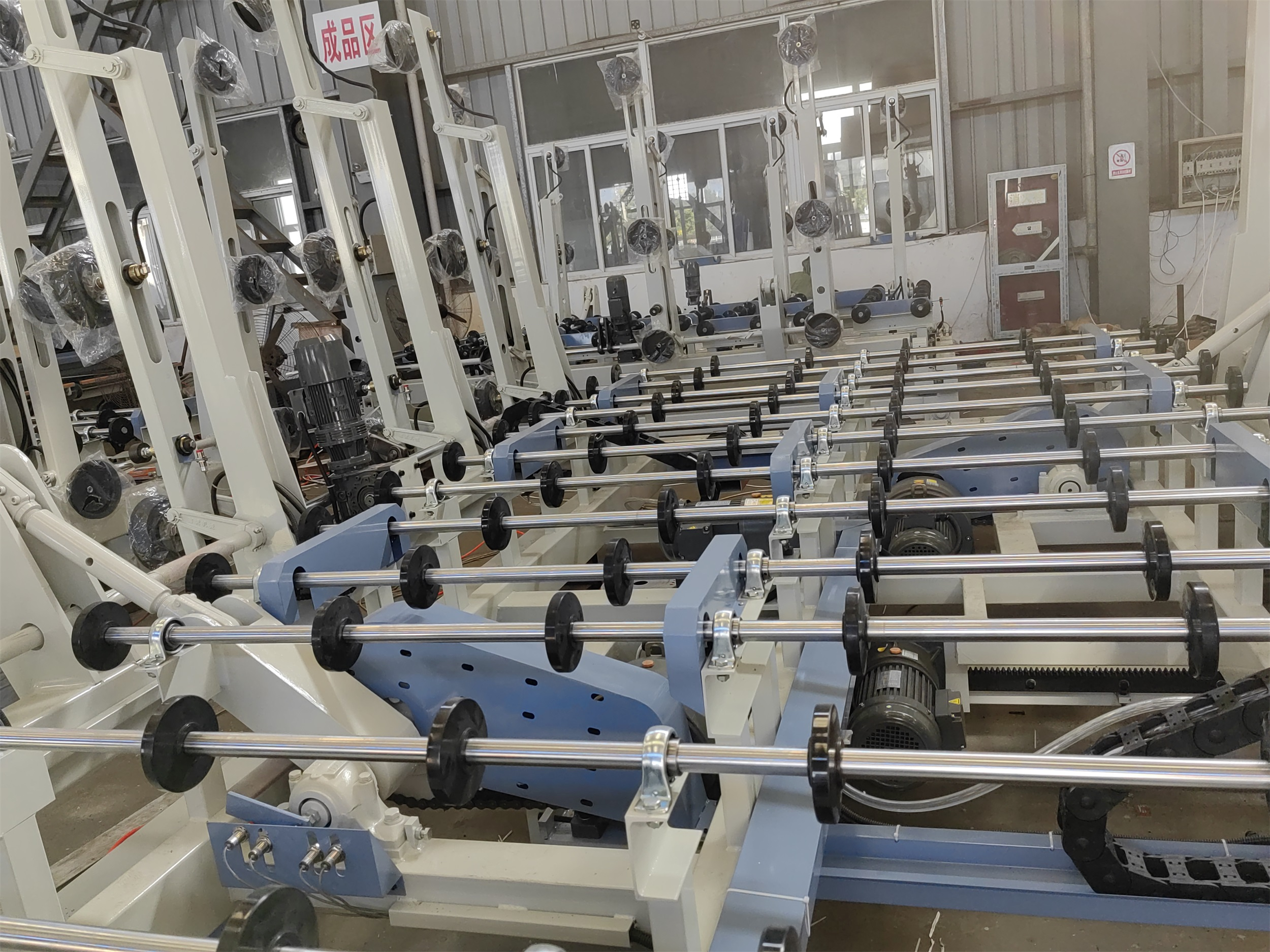

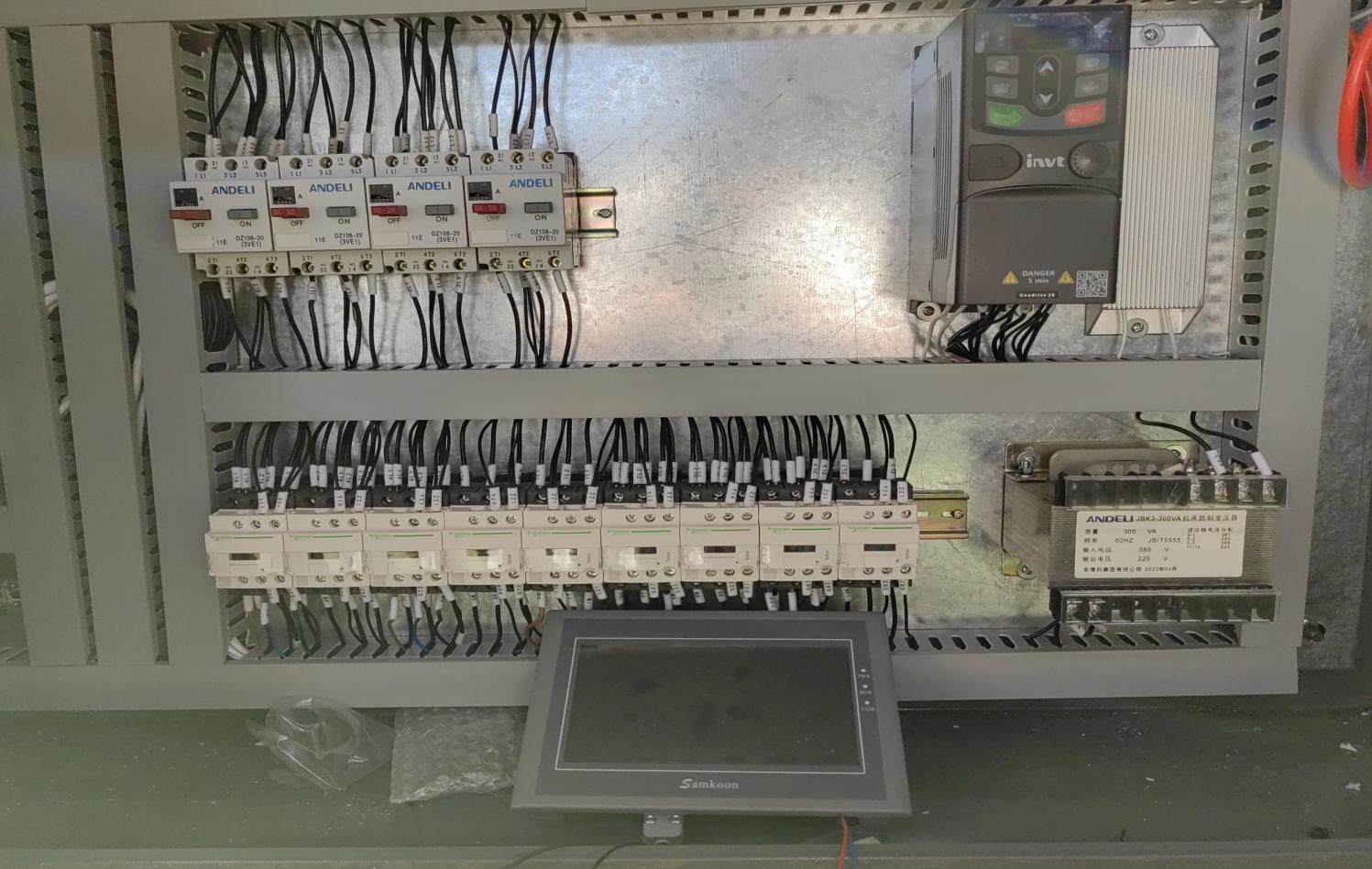

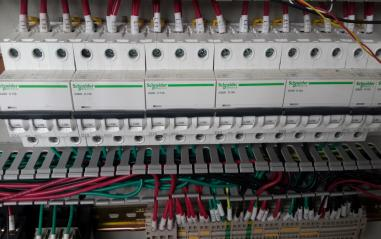

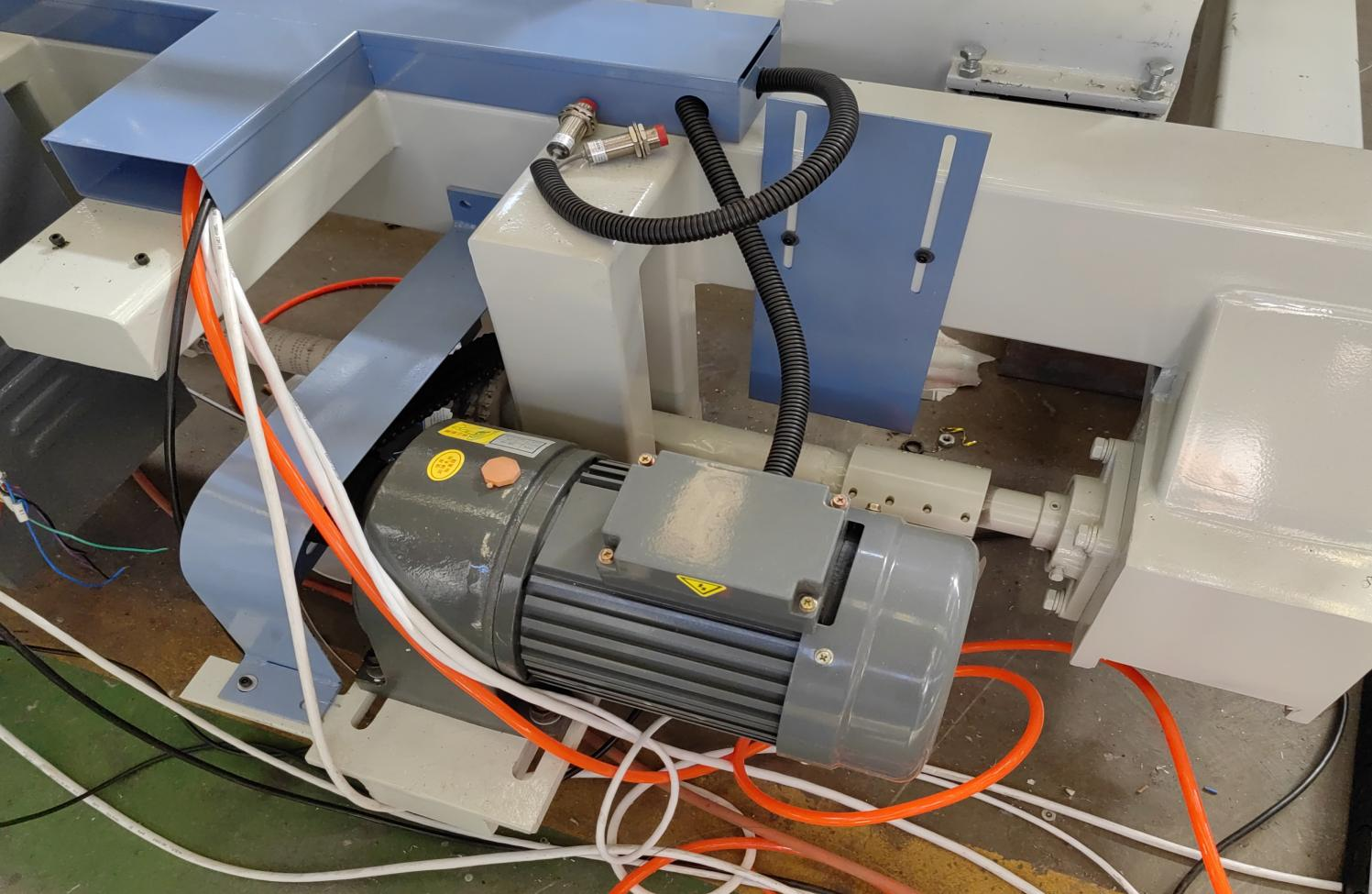

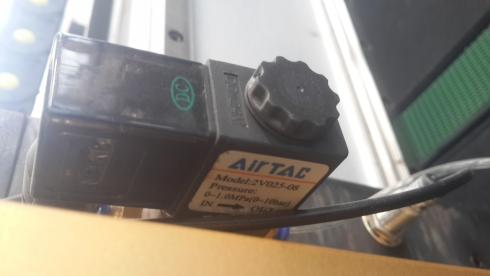

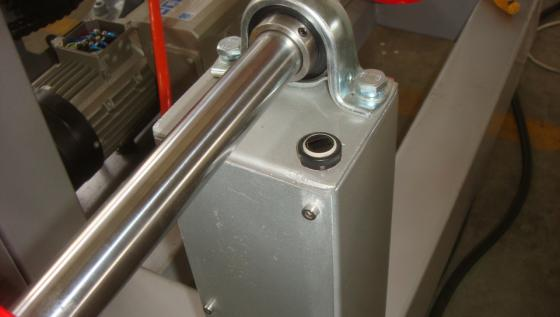

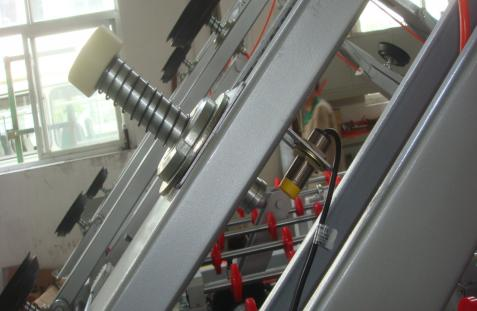

Machine Detail Picture Reference
