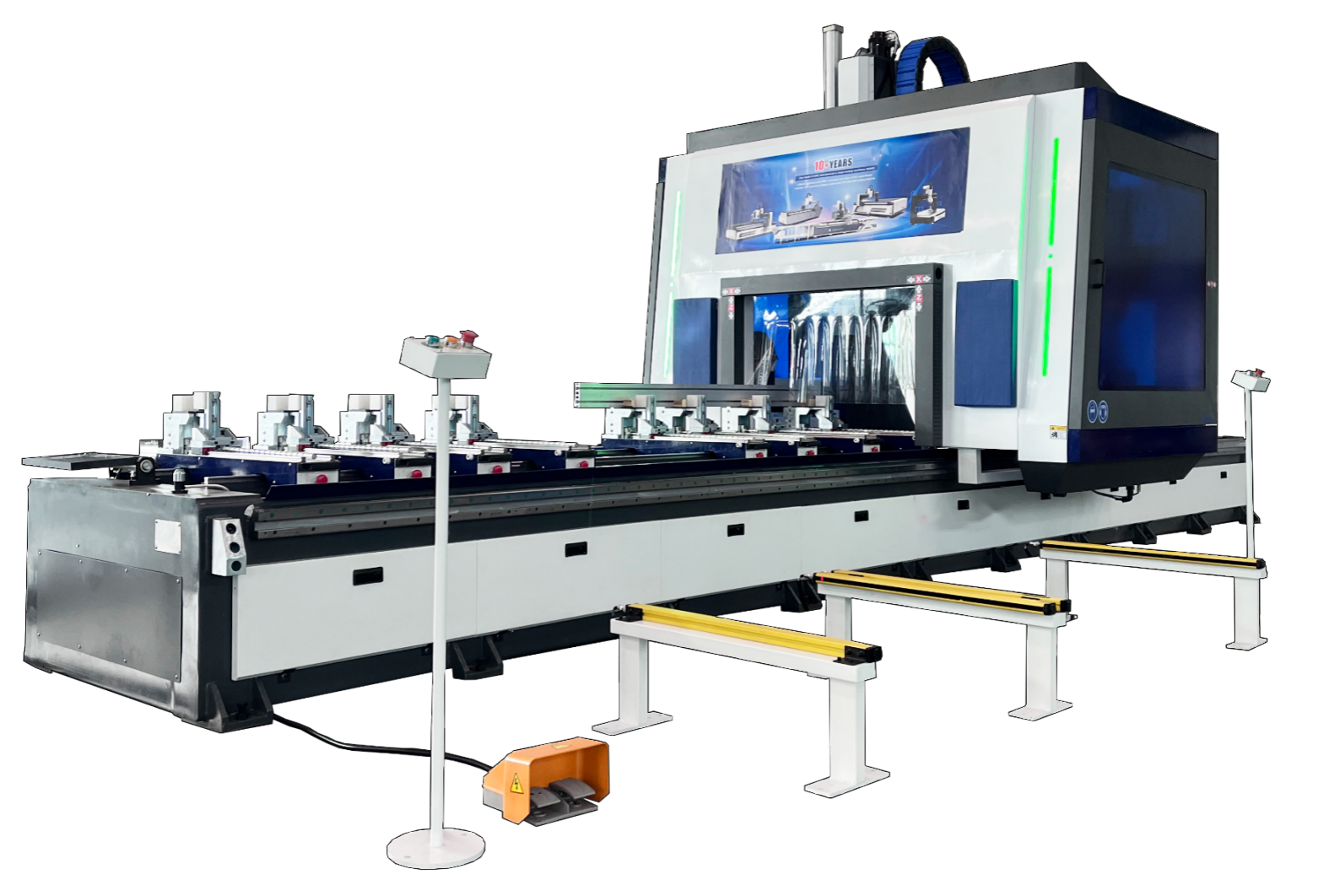

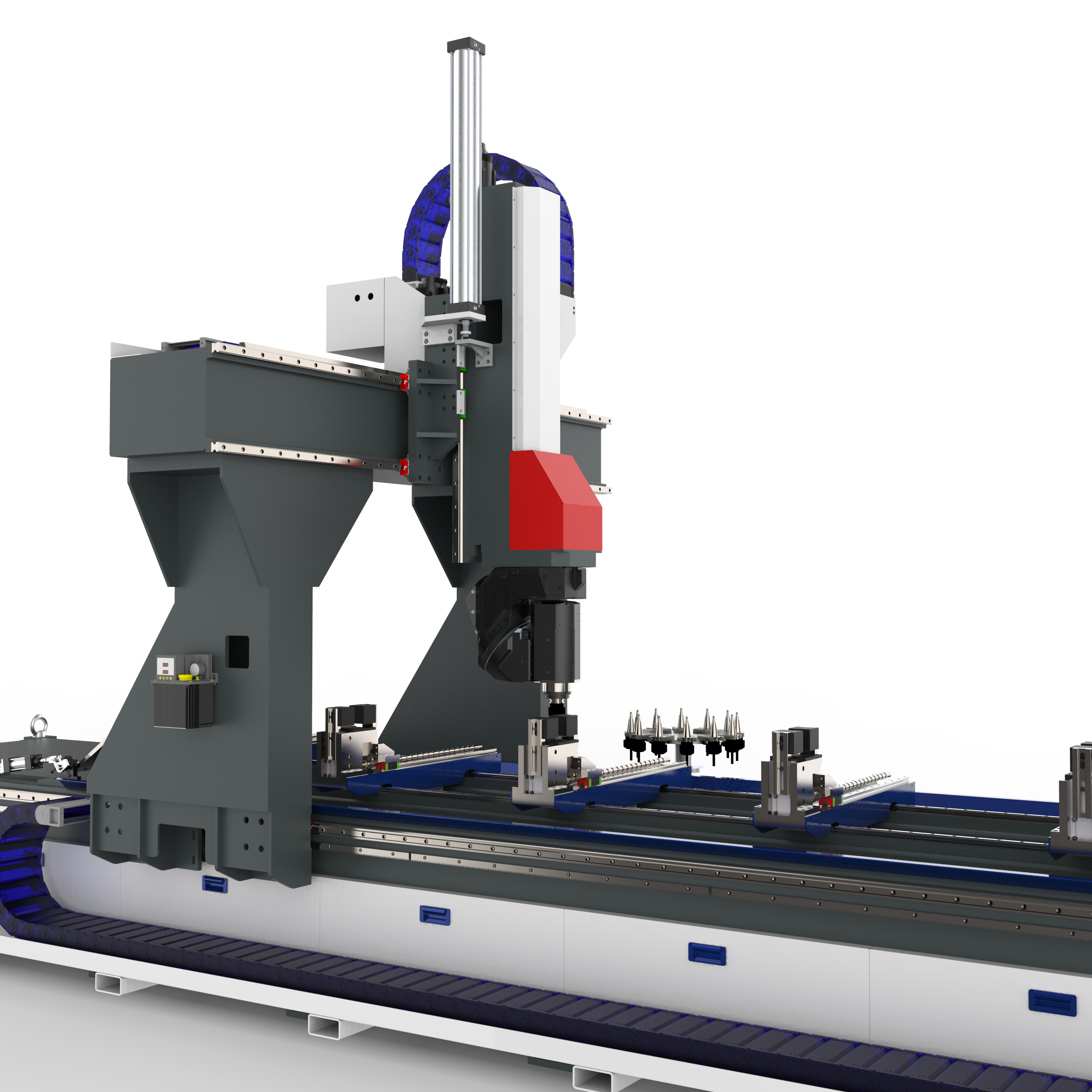

Machine introduction:
5 axis aluminum machining center adopts CNC double-swing head with five-axis and five-linkage function, which can complete the processing of 5-sided milling, boring, drilling and sawing. It is suitable for all kinds of vehicles. , rail transit, and three-dimensional space five-axis linkage processing of various industrial aluminum materials, which can complete the process content of holes, grooves and contour shapes on various aluminum profiles.
|
Specification |
|||
|
Working size X-Y-Z |
10200*600*300mm |
Footprint size |
11700*2750*2400mm |
|
Weight |
8000 kg |
Total power |
25KW |
|
Maximum speed |
80m/min |
Positioning accuracy |
0.03/1000mm |
|
Voltage |
380V/50Hz |
ATC |
HSK-63F-24000RPM |
|
Specification 2. |
|||
|
Spindle |
5A-head HITECO 12KW,24000rpm |
||
|
Guide rail |
Japan Pantoscopic 35/30/30 rails |
||
|
Ball screw |
Taiwan TBI-3205 ball screw |
||
|
Rack |
Germany WMH-2M-1000,Taiwan TBI 3205mm ball screw |
||
|
Controller |
Italy OSAI OPEN Smart 5A control system |
||
|
Motor |
YASKAWA servo motor 1.8*2kw+1.3kw*2,Z axis with brake |
||
|
Inverter |
Taiwan Delta 18.5 KW inverter |
||
|

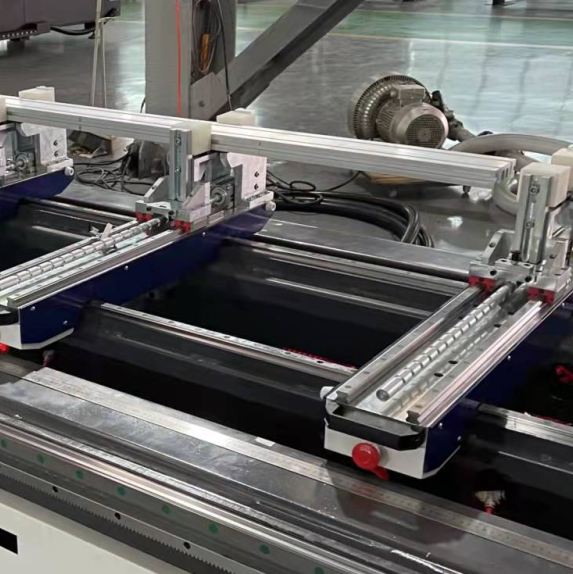

Working table |

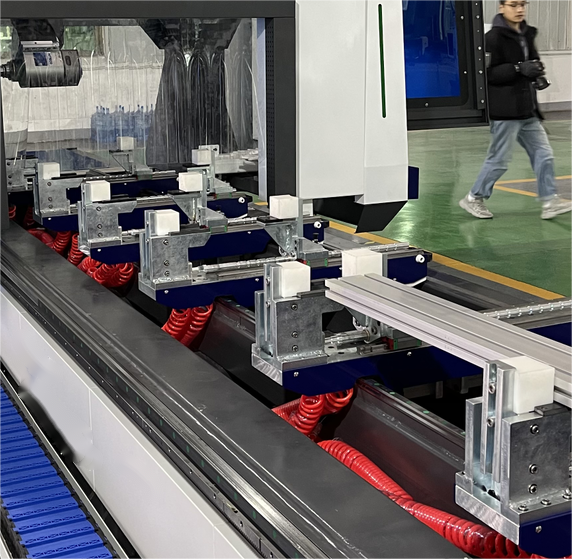

12 sets pneumatic fixed clamps with pneumatic positioning and pneumatic brake |
||
|
Lubrication |
Auto oil lubrication |
||
|
Control cabinet |
Rittal control cabinet with Industrial air conditioner |
||
|
Switch |
Japan Omron proximity switch |
||
|
Cable |
ShangHai Ain |
||
|
Electrical parts |
French Schneider |
||
|
Reducer |
Taiwan LIMING reducer*3 |
||
|
Software |
Alphacam-3d software |
||
|
Other |
CHILLER-CW5200 water cooler |
||
|

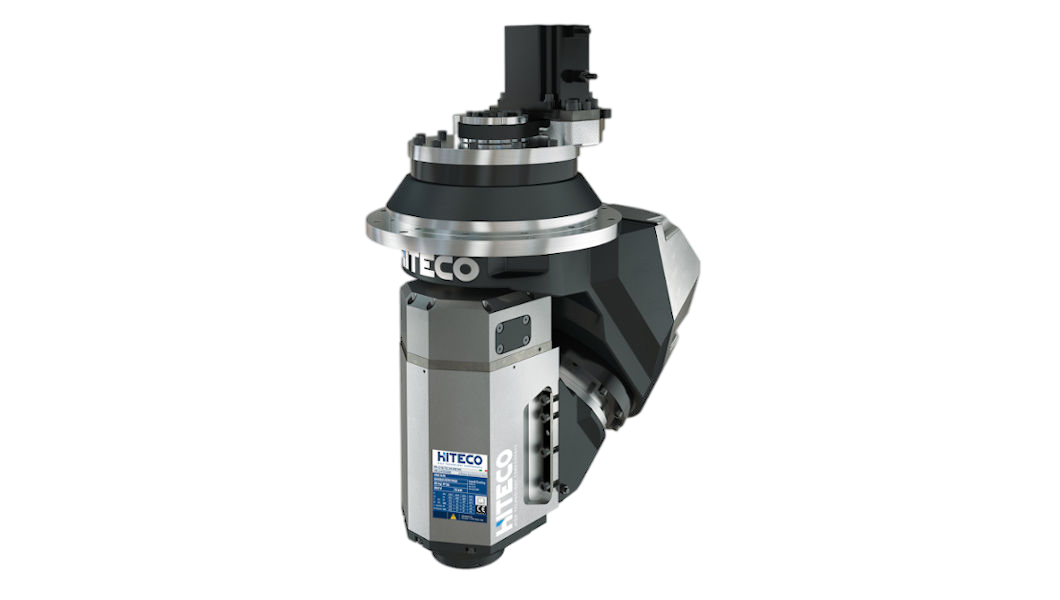

Italy Hiteco 5A-head
|

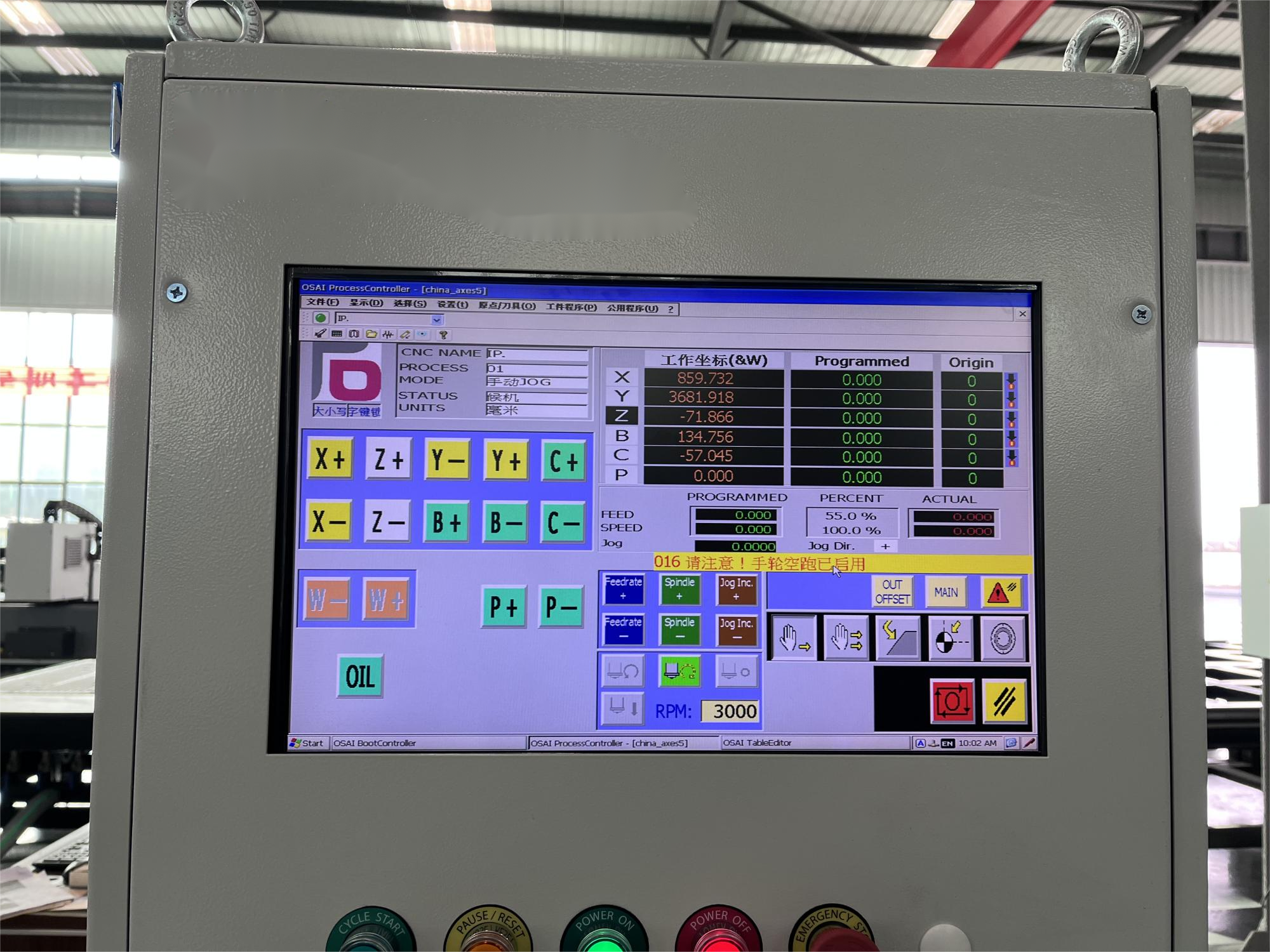

Italy OSAI OPEN Smart 5A
|

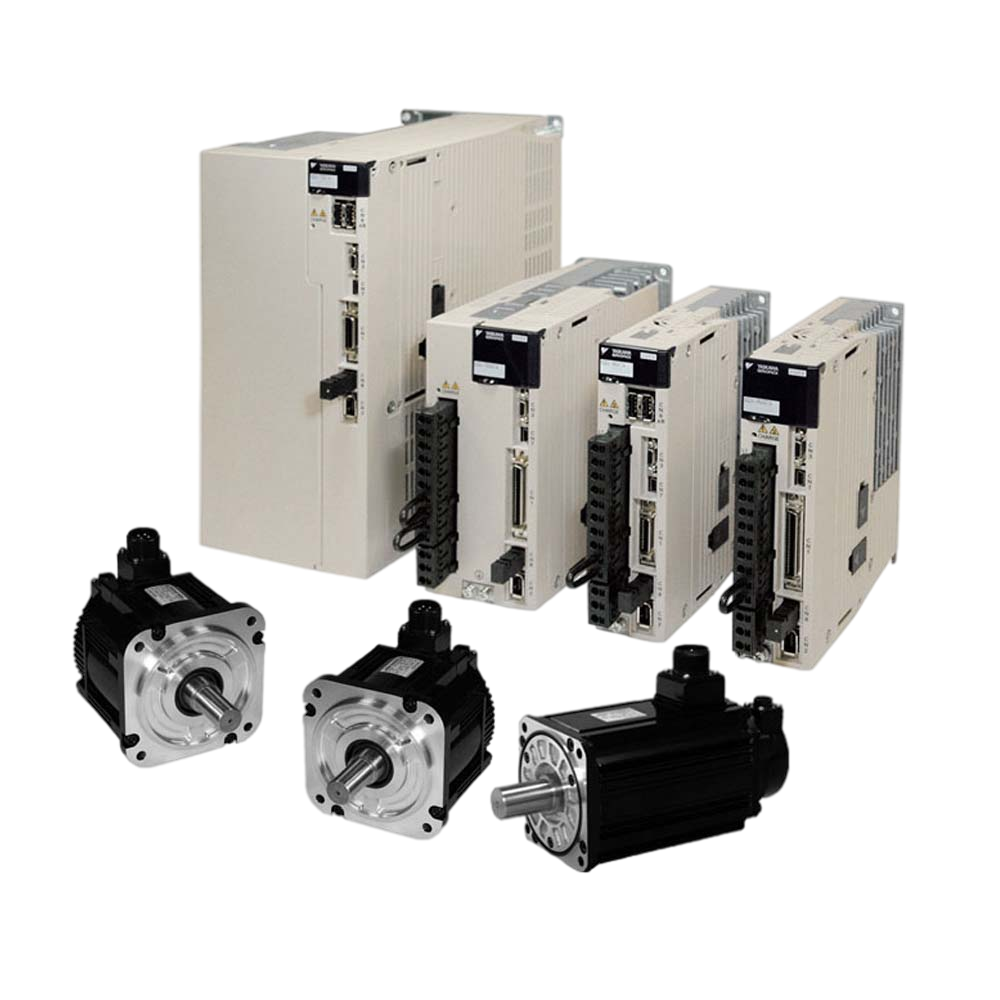

YASKAWA servo motor
|
|

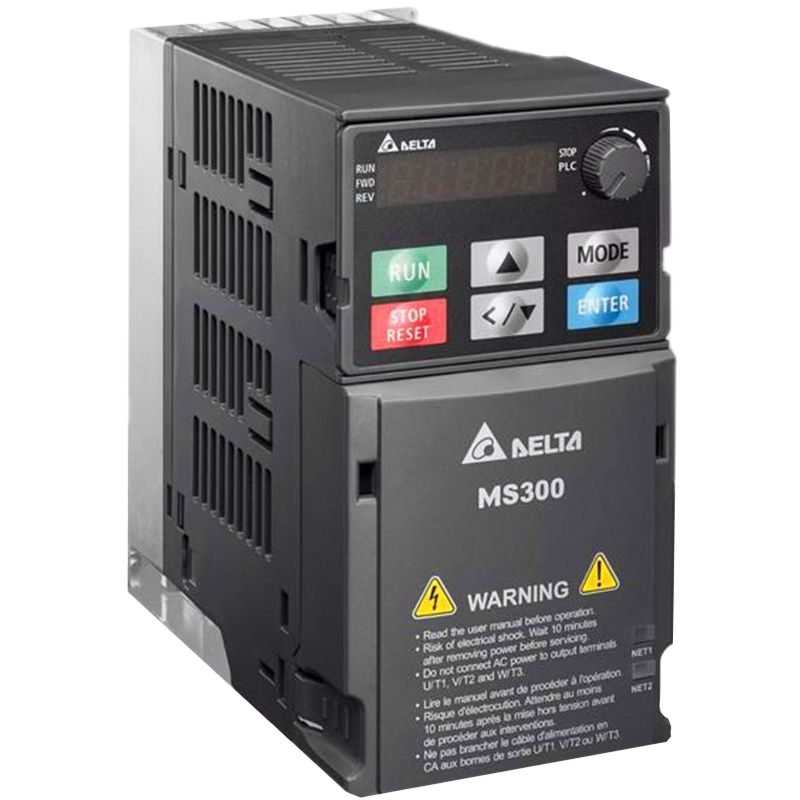

Taiwan Delta inverter
|
|
12 disk tool magazine |
|
Saw blade changer handle |

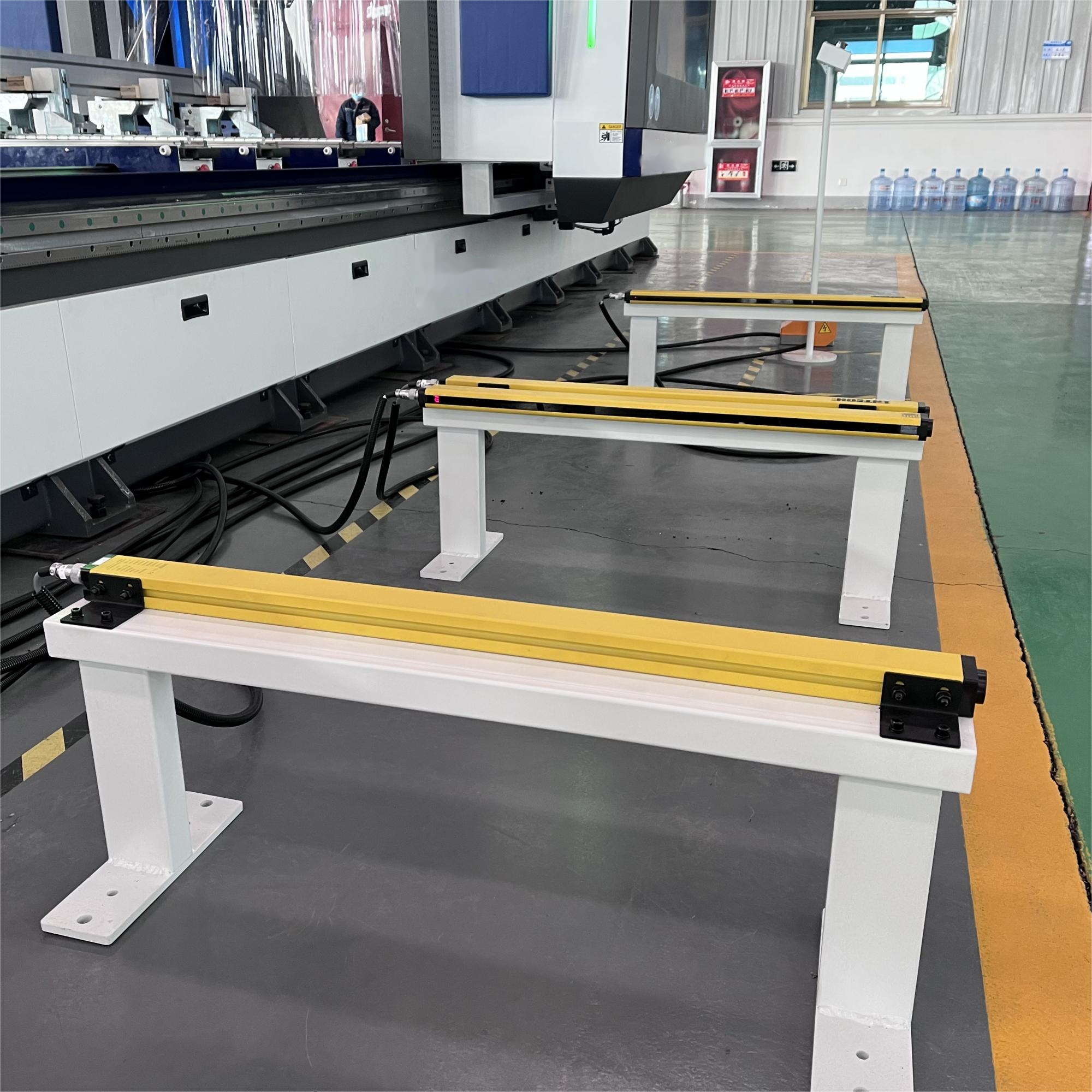

Photoelectric protection LNTECH |

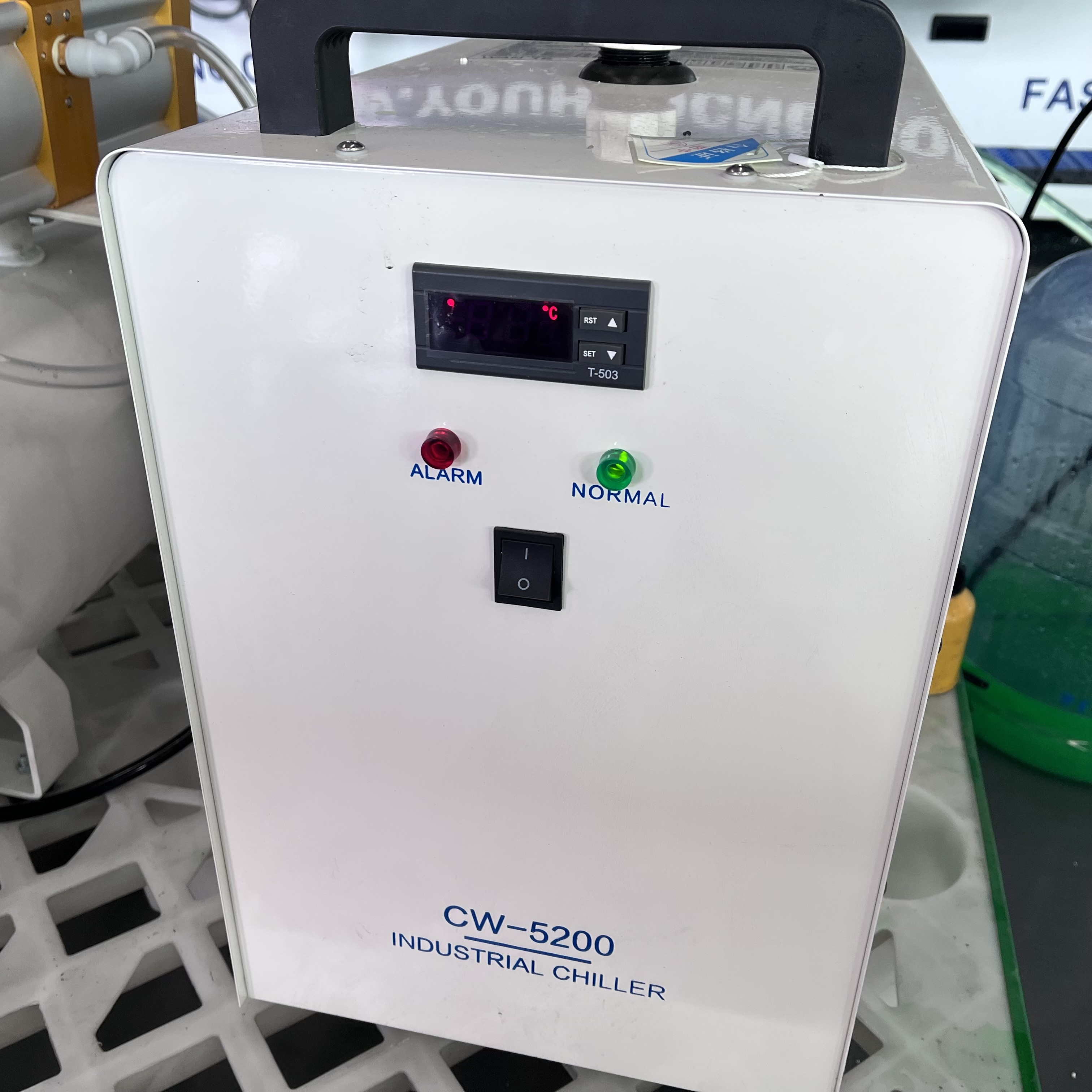

CW5200 water cooler
|
