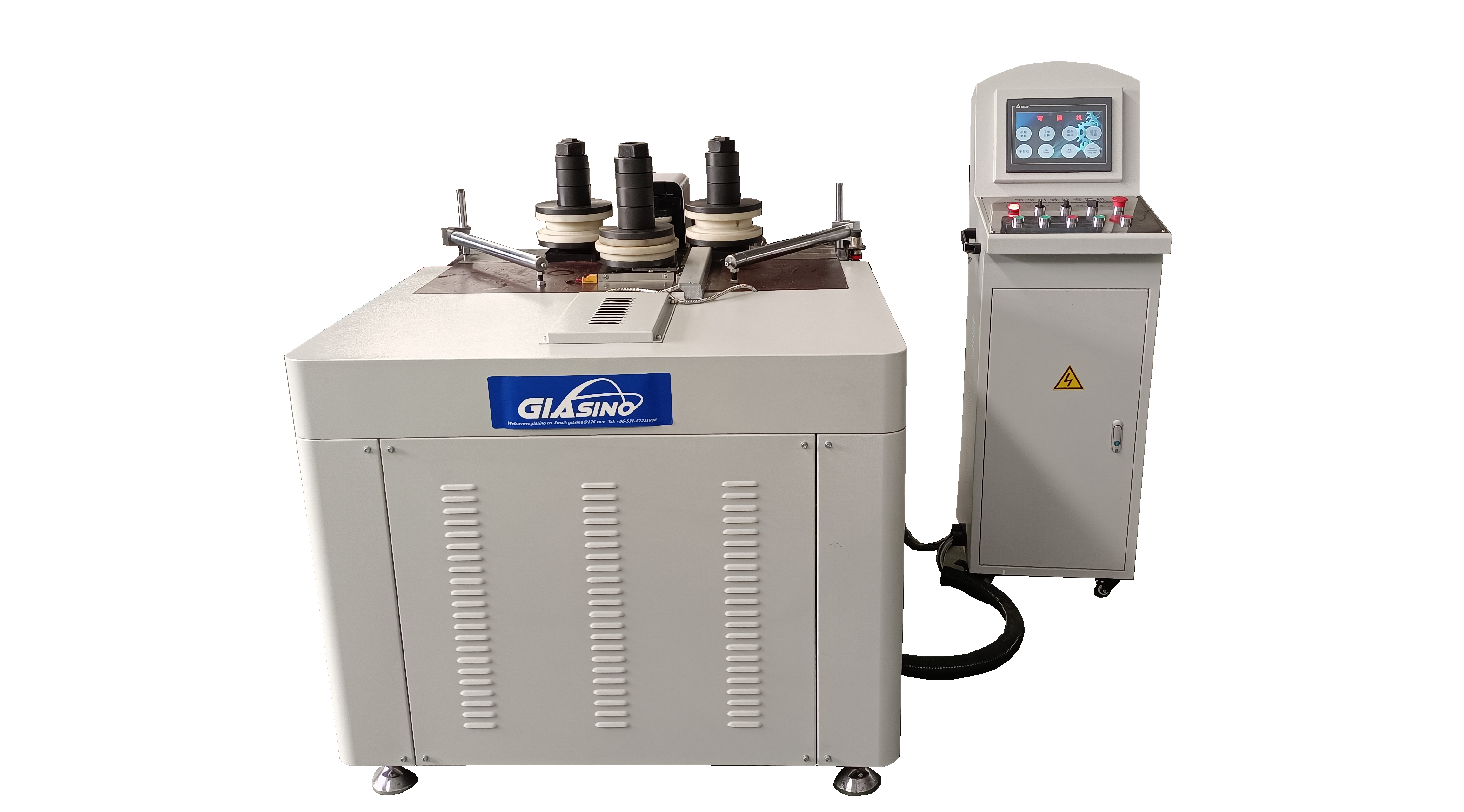

Aluminum Window Door Processing Machine

Product Description

Equipment advantages

1. Suitable for bending and processing of various metal profiles or special profiles (aluminum alloy door and window profiles, thermal insulation bridge profiles).

2. The machine adopts a fully automatic CNC system and dedicated bending software, which is simple and convenient to operate. The machine uses horizontal bending and is suitable for materials with long or large shapes (heavy materials).

It can perform system compensation according to the rebound data of the profile, and has high processing accuracy.

3. It adopts CNC hydraulic system control to ensure accurate positioning.

4. Its product performance meets the standards of advanced European CNC bending machines.

Technical Parameter

Voltage	380V 50Hz/60Hz
Total power	10.6kw
Air pressure	0.4-0.8 M pa
Arc bending radius	R 80mm
Fixed wheel center distance	400-7000mm

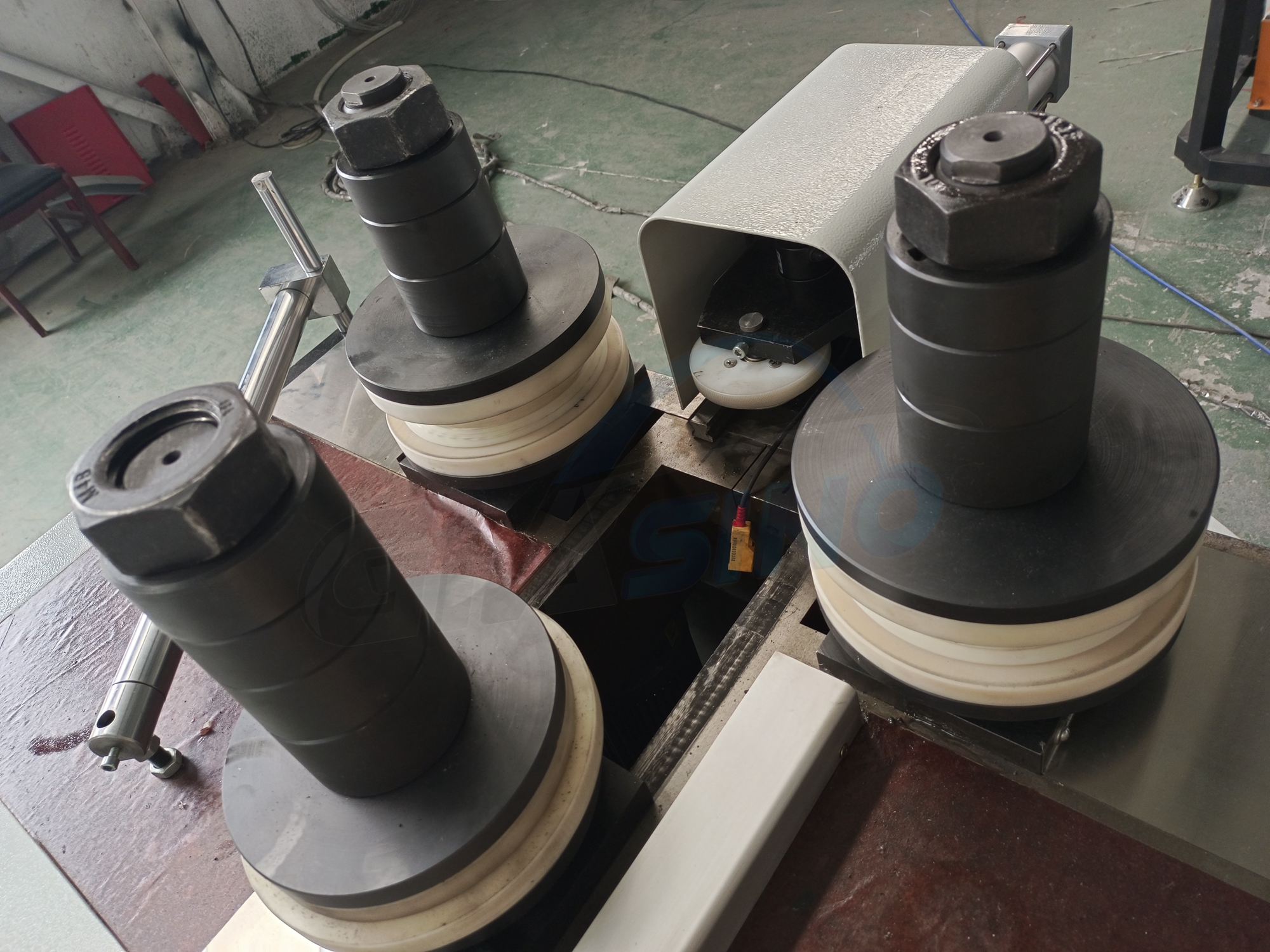

Roller die max radius	Φ300mm, material: nylon.
Y-axis cylinder thrust	30T
Roller speed	1-15r/min
Roller diameter	R 80mm
Y-axis cylinder positioning accuracy:	+/-0.1mm
X-axis maximum torque	3000 Nm*3=9000 Nm
Y-axis feed stroke	0-220mm.
Roller shaft length	300mm
Processing profile range	Height 220*width 220mm.
X-axis positioning accuracy	<0.5mm
Minimum processing radius	100mm (inner arc) one-time bending forming (related to the actual size of the material)
Overall Dimension	1900×1500×1700mm
Weight	2000Kg

Configuration:

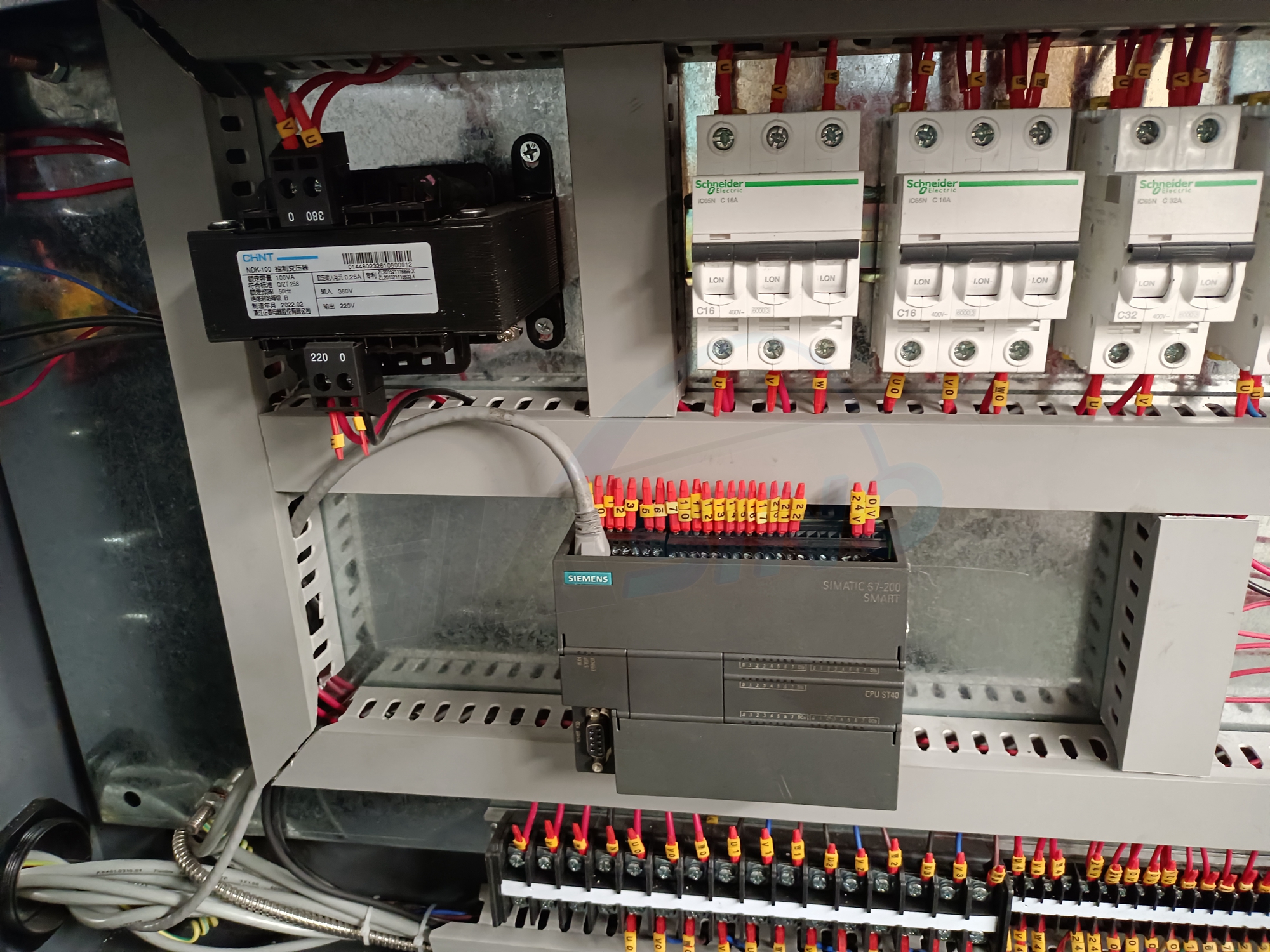

Control system	Siemens PLC controller (good stability)

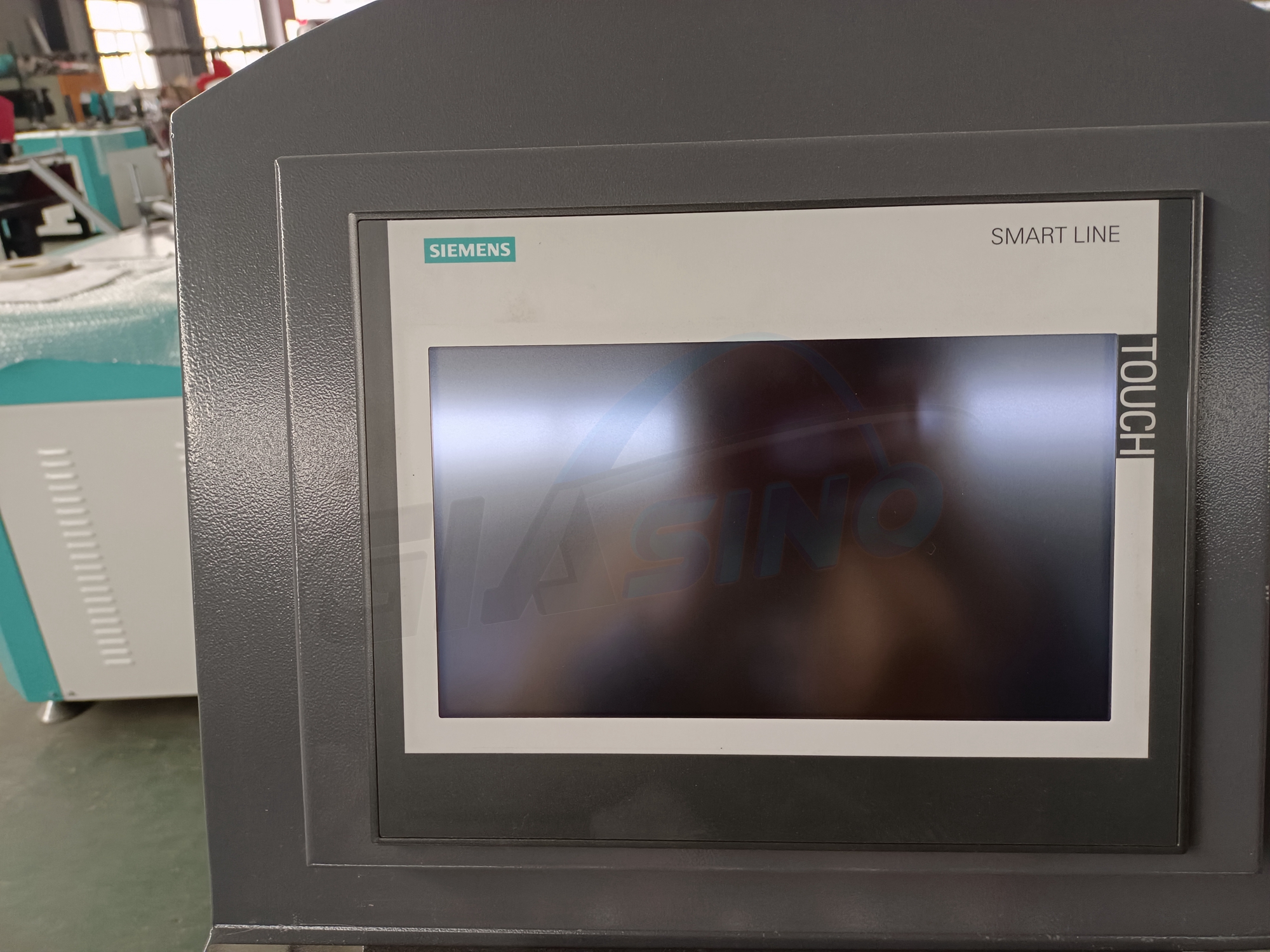

Operation screen	Siemens 10-inch touch screen (easy to use)
hydraulic system	Yuyan
Speed reduction	Taiwan Aimoxin
Electrical component	French Schneider
