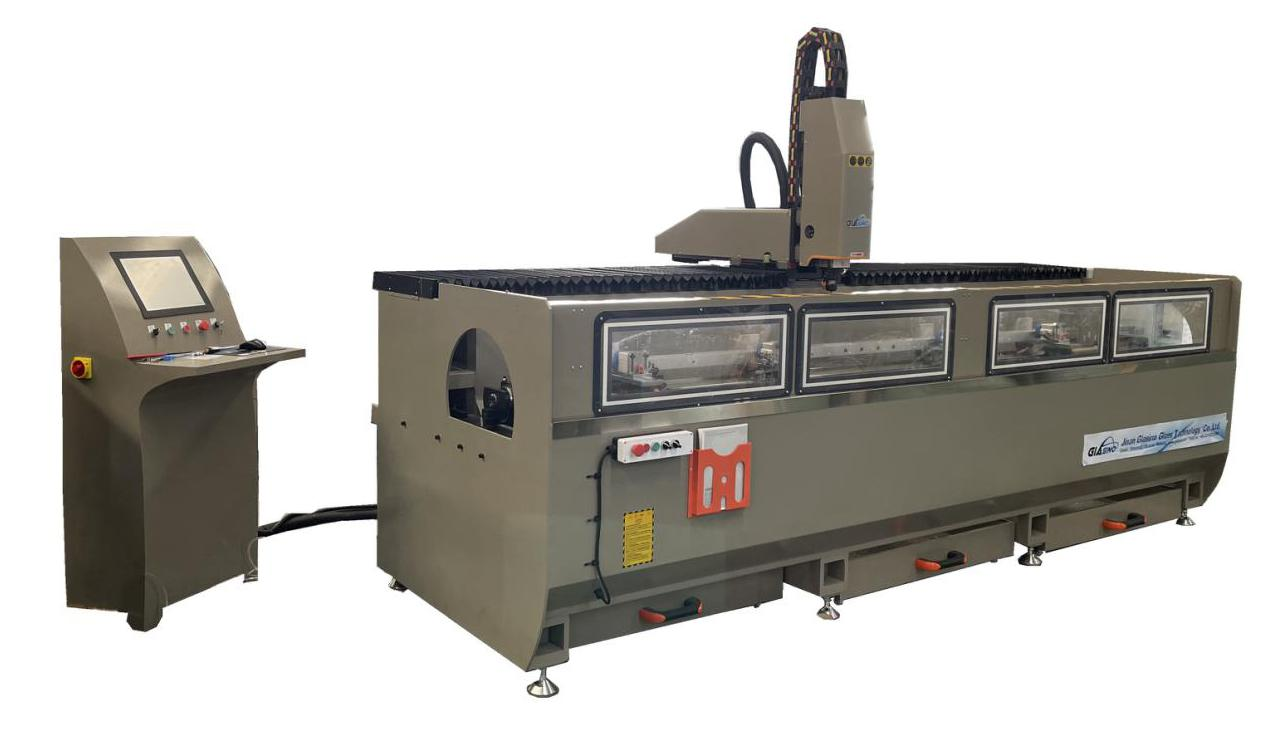

3000mm Aluminum Profile Cnc Milling And Drilling Machining Center

Machine introduction:

1. Applicable for drilling holes, milling groove, tapping, circular hole,irregular-shaped and keyhole and plane engraving of aluminum profile.
2. It Adopts Syntec CNC system,which makes sure smooth running of machine.
3. Electrical spindle is Italy Hiteco brand air cooling 9KW, 24000r/min.
4. Imported Taiwan Hiwin guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine .
5. CAD-CAM Programming software can automatically convert G code,you can drawing any holes on computer.
6. Adopt auto oil supply system, blades adopt system control spray cooling device.
7. The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
8. The main components adopt steel structure and they are all through aging treatment.
9. Effective processing range: according to your requirements.
10. Adopt 6 sets tool magazine, can change different tools automatic.

Technical parameter：

Machine Configuration：

Pictures of factory Machine for reference:
