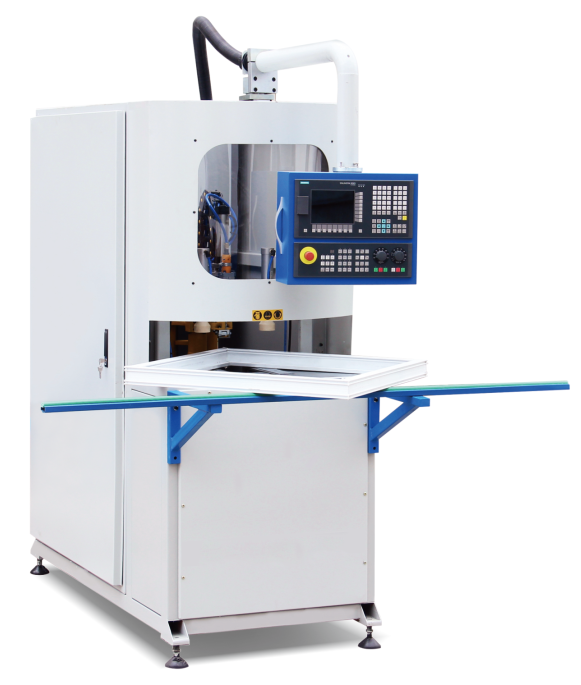

Equipment Features

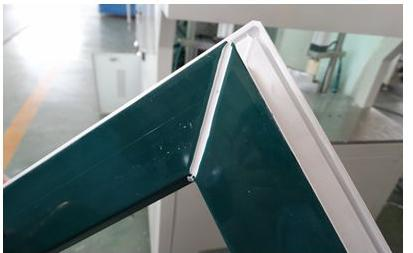

-For cleaning PVC profile weeding seam.
-Double-axis control system for 3 cutters, three axis control system for 5 cutters.

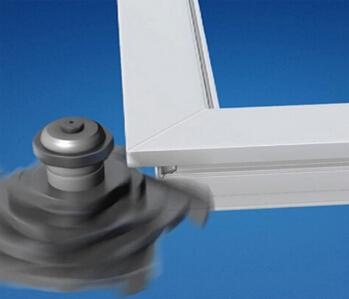

-Cleaning the up/bottom surface and the external corner
-High processing precision due to size error compensation function
-Can store many programs for various profile processing
Technical Parameter
|
Input Voltage |
380V/50Hz |
|
Input Power |
1.5kw |
|
Milling Cutter Rotate speed |
2800r/min |
|
Air pressure |
0.4~0.7MPa |
|
Profile Height |
20~150mm |
|
Profile Width |
20~100mm |
|

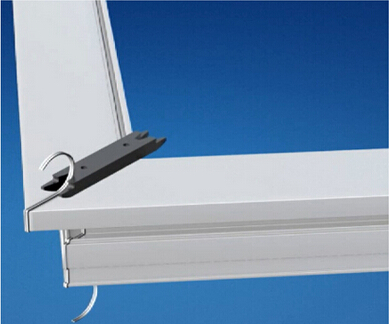

Drawing groove width |
3mm |
|
Overall Dimension |
1600 x 880 x 1650mm |
|
Weight about |
600kg |
|

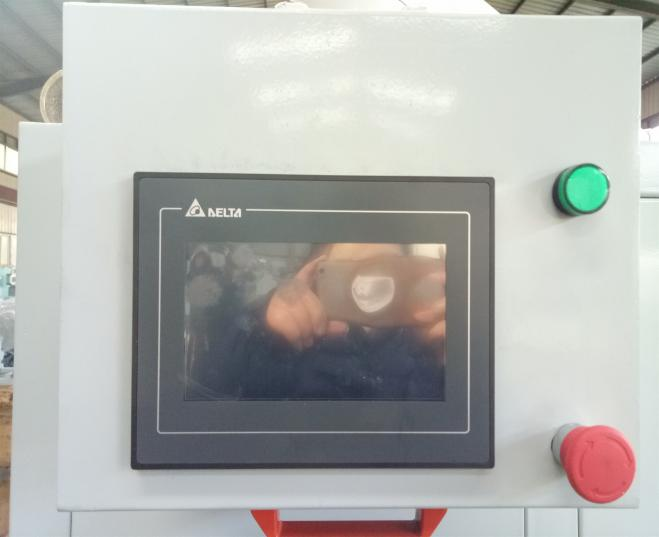

PLC |
Delta Taiwan China |
Details:
 |
 |
 |
 |
 |
 |

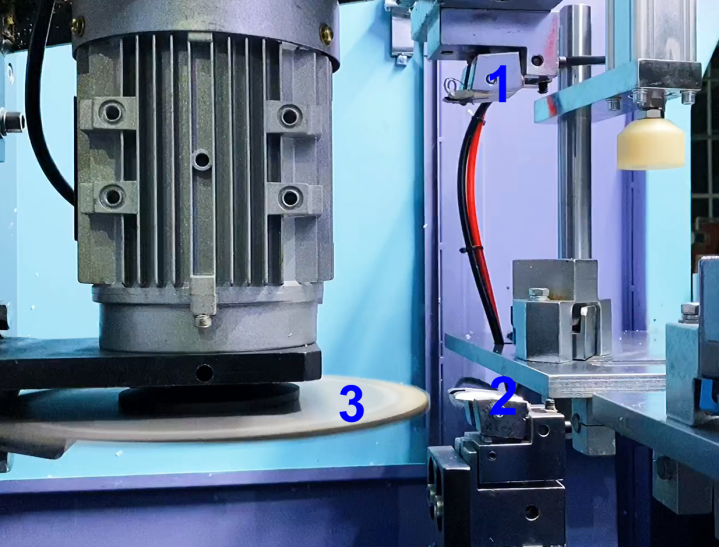

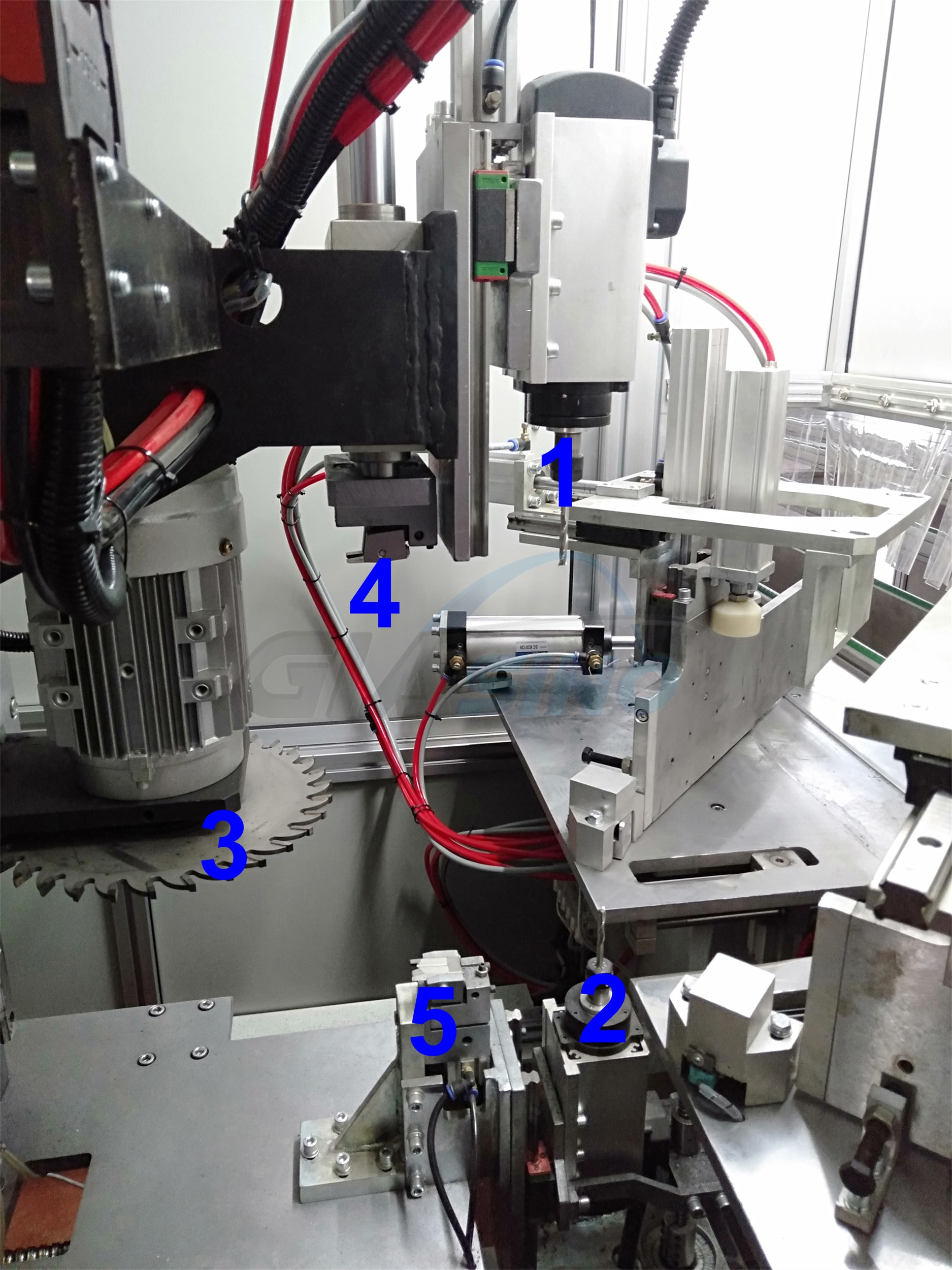

5 cutters
