Aluminum Window Door Processing Machine

Machine introduction:

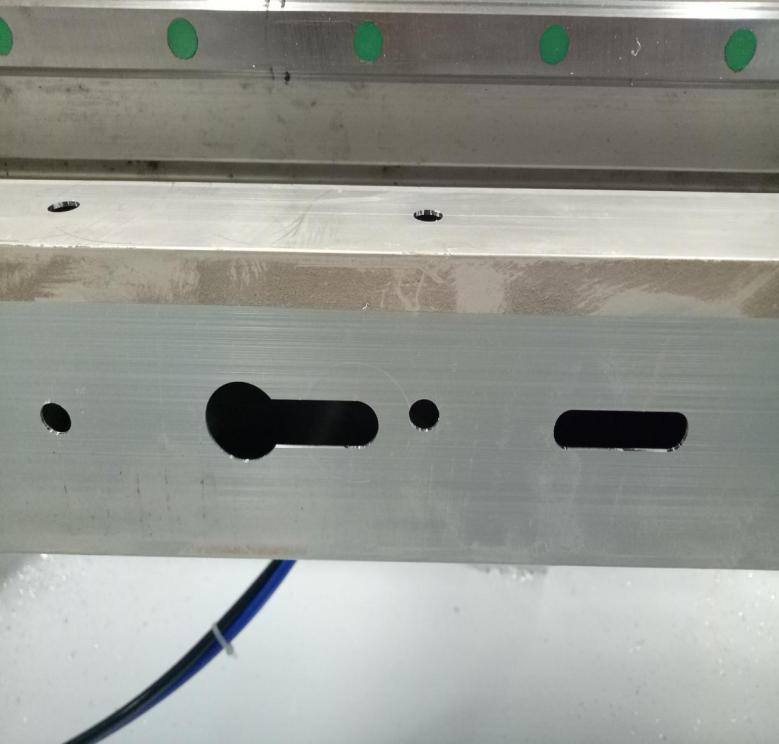

Applicable for drilling holes ,milling groove ,circular hole,irregular-shaped and keyhole and plane engraving of aluminum profile.
It Adopts Kunluntongtai CNC system,which makes sure smooth running of machine.

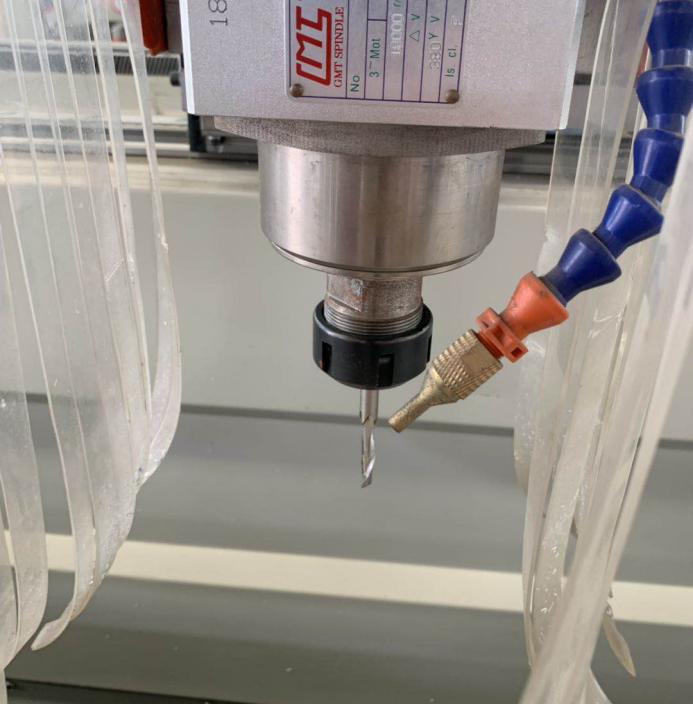

Electrical spindle is HQD air cooling 3KW, 18000r/min.

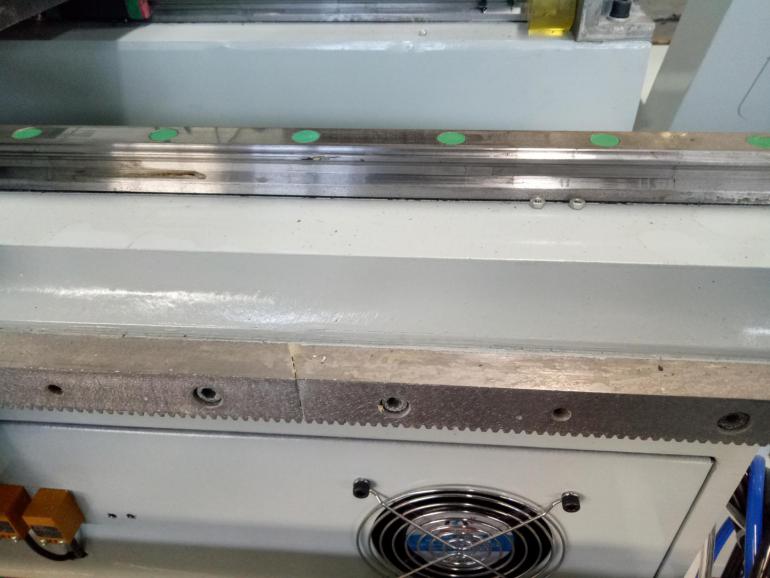

Imported Taiwan TBI guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine .
CAD-CAM Programming software can automatically convert G code,you can drawing any holes on computer.
Worktable can be rotated to 180° (-90° -0°- +90°), Clamping profile one time, three sides processing. it can process deep and special-shaped holes through workbench;high efficiency and precision.
Adopt manual oil supply system, blades adopt system control spray cooling device.
The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
The main components adopt steel structure and they are all through aging treatment.

Technical parameter：

Machine Configuration：

Specs.	Details and brand
Controller	Kunluntongtai

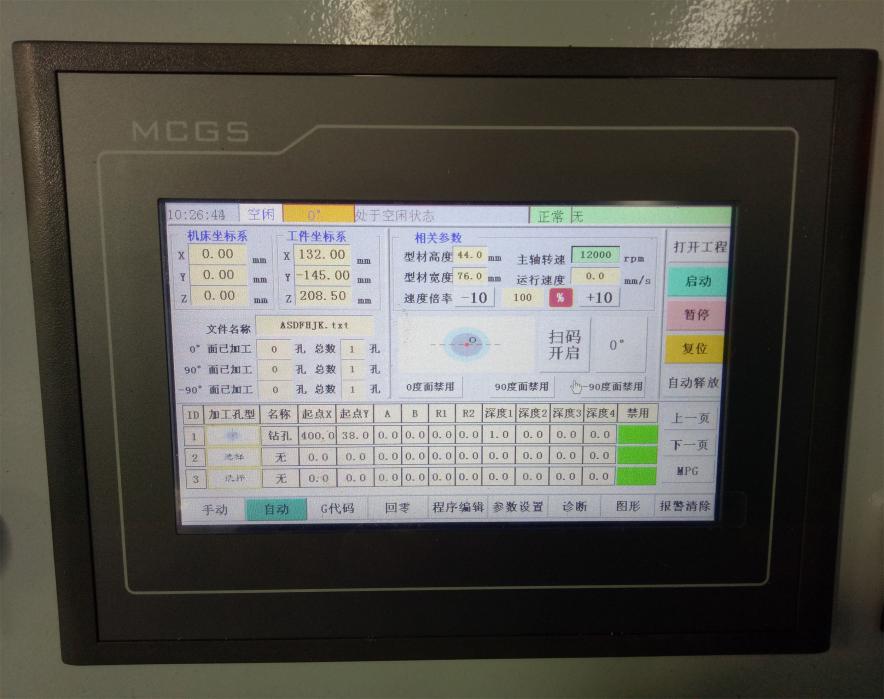

touch screen	10＃
Relay	Schneider
Low-voltage electrical	Schneider

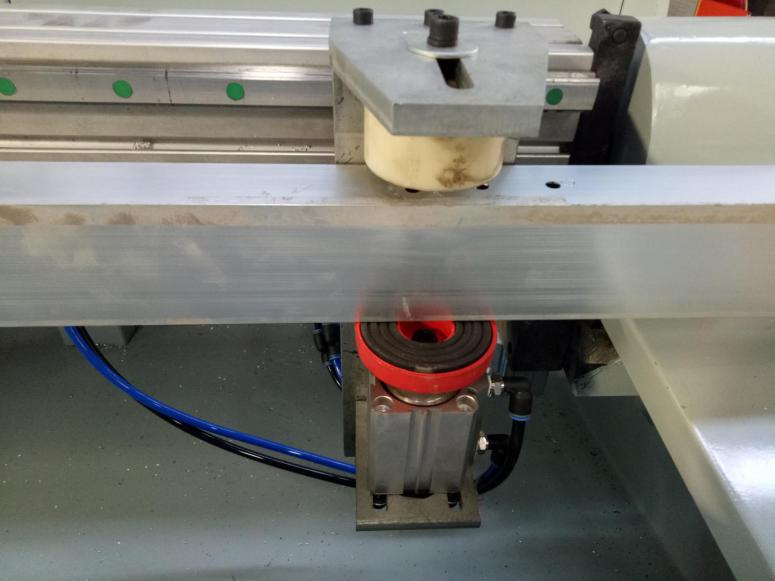

Cylinder	Taiwan AirTac
Solenoid valve	Taiwan AirTAC 24V
Proximity switch	Delta Taiwan
Servo driver	Delta Taiwan

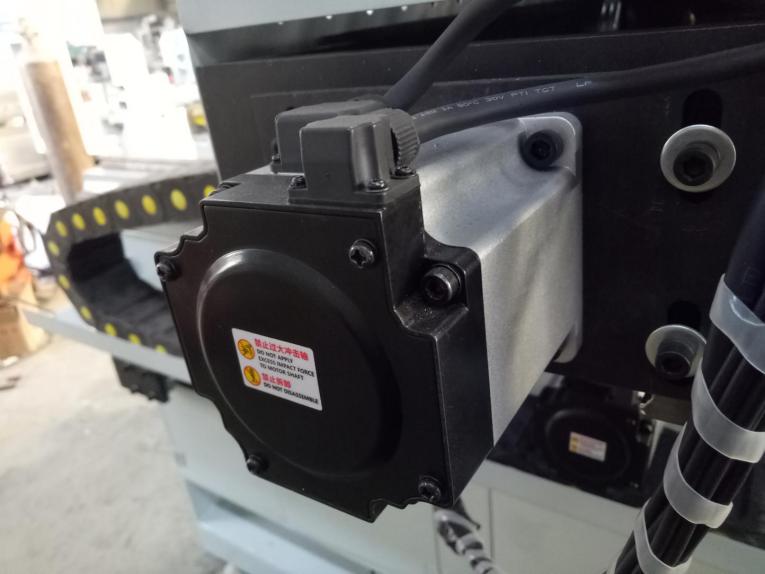

Driver motor	Delta Taiwan
Switching power supply	Delta Taiwan
Inverter	Detal Taiwan
Spindle	3.5KW HQD
Linear guide ral	Taiwan TBI
Ball screw	Taiwan TBI
Dust cover	PVC mold buckle
Machine head	cast iron
Rotating table	industrial aluminum
Warranty	18 months(System/drive/drive motor/inverter)
Rotated angel	180° (-90° -0°- +90°)
Processing speed	0-60m/min
Machine dimensions	195015501800
Processing range	100*120mm

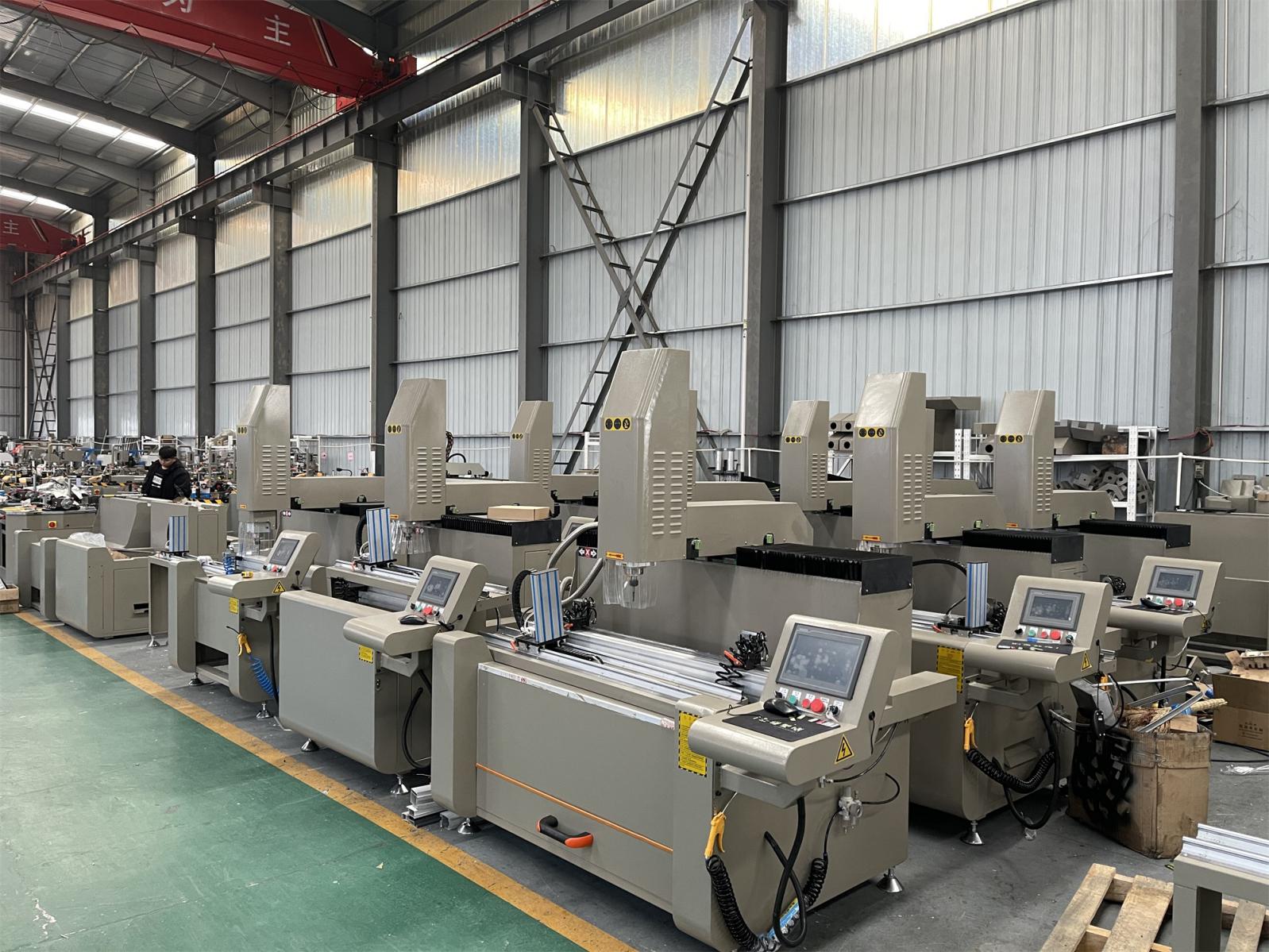

Pictures of Machine for reference:

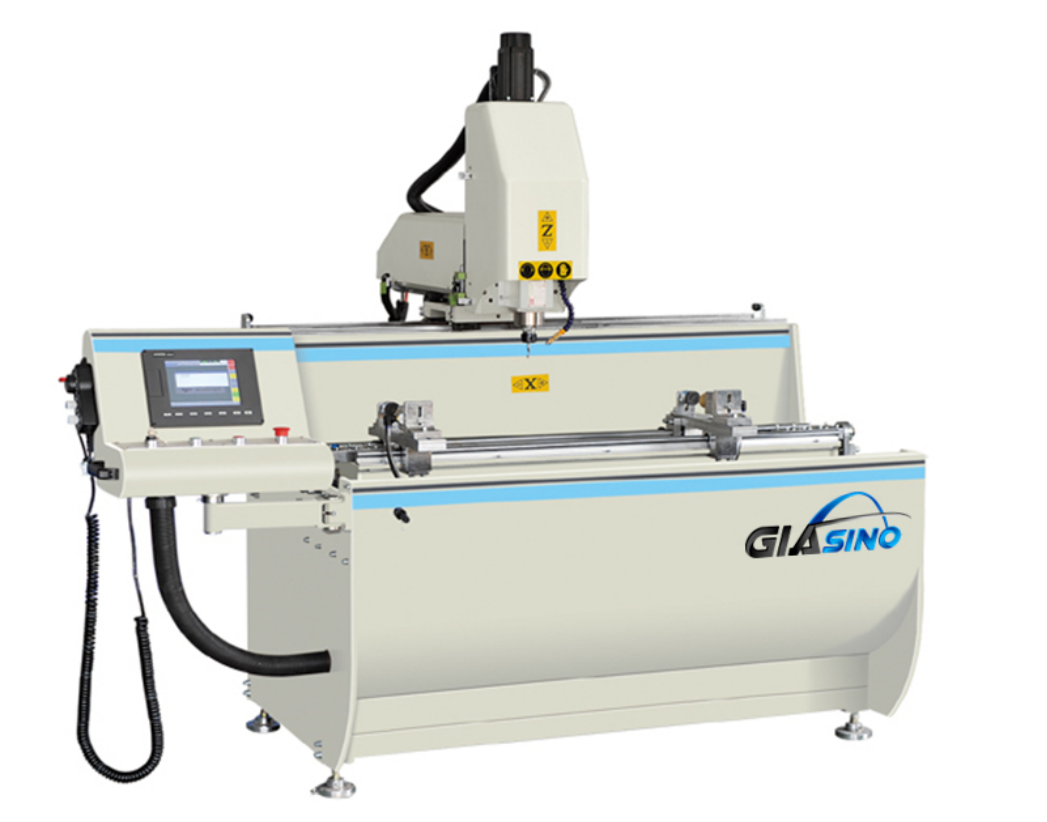

1200mm Aluminum Profile Cnc Milling And Drilling Machine
